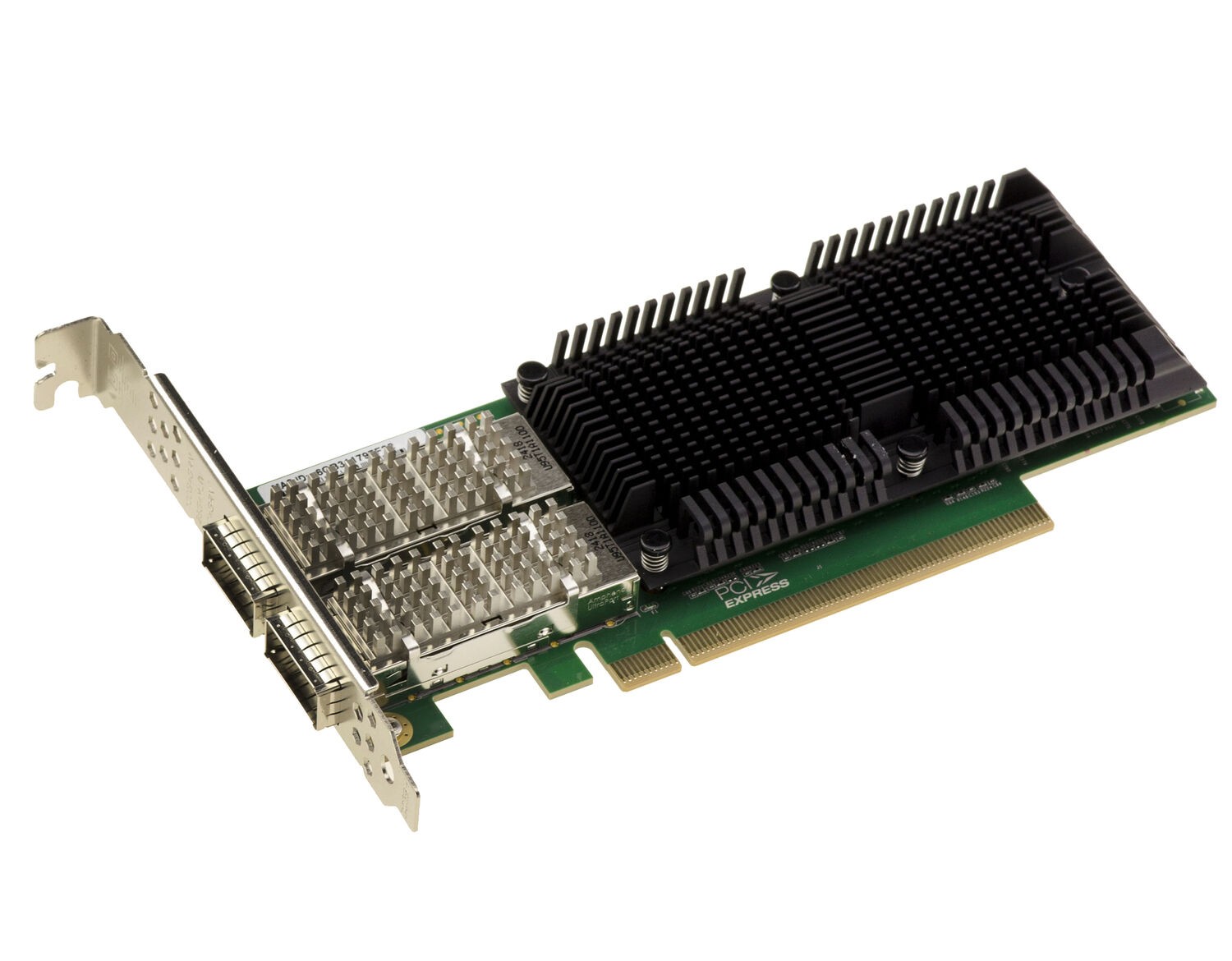

Dual Network Card 100G QSFP28 2 Ports With Intel E810 Chipset
Price: FR $684.05

2-port 100G Ethernet network card in PCIe 4.0 x16 format, based on the Intel E810 controller. It integrates hardware-based packet processing acceleration functions as well as Application Device Queues (ADQ) technology. This technology notably allows support for Fabric TCP via NVMe, as well as the Rd'a iWARP and RoCEv2 protocols. The card remains compatible with PCIe 3.0 and PCIe 2.0 interfaces.

Compatibility:
Windows 10/11, Windows Server 2016/2019/2022,
Deepin 20 / 20.6 / 20.9,
VMware ESXi 6.7 / 7.0,
Galaxy Unicorn v10,
RHEL/CentOS 7.6 / 7.9 / 8.2 / 8.3,
Ubuntu 16.04.3 / 18.04.5 / 20.04.1 / 22.04.2,
SUSE 12.5 / 15.4,
FreeBSD 12.2 / 13.2,
ZTE New Fulcrum 3.2.2 / 5.0.5,
Asianux Server v7.0...

Technical characteristics:
Intel E810 controller.
PCIe 4.0 x16 Bus interface (PCIe 3.0/2.0 compatible).
2 QSFP28 ports, supported speeds 10/25/50/100 Gb/s.
Compatible cable types 10GBASE-SR/LR/ER, 25GBASE-SR/LR, 50GBASE-SR/LR, 100GBASE-SR4/LR4/ER4.
Low Profile & Full Height format.
Power supply Via PCIe port, consumption: min. 11,592 W / max. 39.372 W.
Operating temperature 0°C to 105°C.
Storage temperature -40°C to 115°C.
Storage humidity? 90% non-condensing at 35°C.

Supported protocols and features:
IEEE 802.3 (10G/25G/50G/100G), Energy Efficient Ethernet.
VLAN (802.1Q), QoS.
PXE/UEFI.
Jumbo Frames (up to 9.5K).
DPDK, SR-IOV, VMDq.
Rd'a, iWARP, RoCEv2.
IEEE 1588 PTP synchronization.

2-port 100G Ethernet network card in PCIe 4.0 x16 format, based on the Intel E810 controller. It integrates hardware-based packet processing acceleration functions as well as Application Device Queues (ADQ) technology. This technology notably allows support for Fabric TCP via NVMe, as well as the Rd'a iWARP and RoCEv2 protocols. The card remains compatible with PCIe 3.0 and PCIe 2.0 interfaces. Windows 10/11, Windows Server 2016/2019/2022, Ubuntu 16.04.3 / 18.04.5 / 20.04.1 / 22.04.2, PCIe 4.0 x16 Bus interface (PCIe 3.0/2.0 compatible). 2 QSFP28 ports, supported speeds 10/25/50/100 Gb/s. Compatible cable types 10GBASE-SR/LR/ER, 25GBASE-SR/LR, 50GBASE-SR/LR, 100GBASE-SR4/LR4/ER4. Power supply Via PCIe port, consumption: min. 11,592 W / max. 39.372 W. IEEE 802.3 (10G/25G/50G/100G), E
