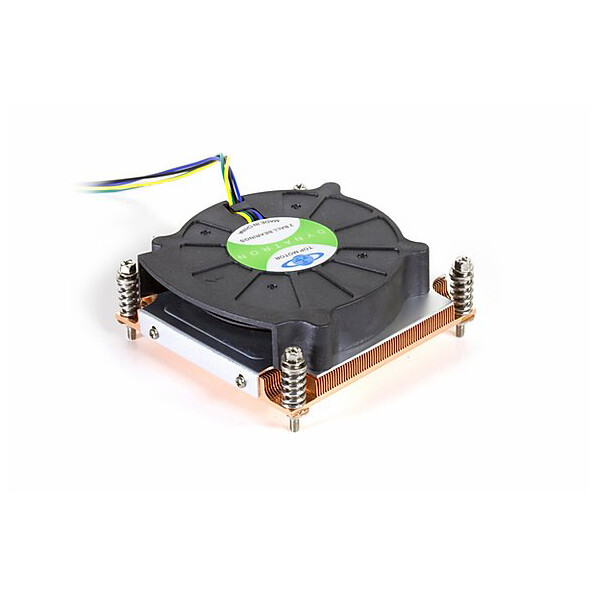

Dynatron K199 1U Copper Heatsink and PWM Blower for Intel LGA 1151/1156/1150
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Dynatron K199 1U Copper Heatsink and PWM Blower for Intel LGA 1151/1156/1150
Price: US $44.95
General Description

Dynatron K199 recommend for Intel Core i5 I5-750; Xeon Processor 3400 Series; Core i7 Processors, I7-870 & I7-860; Socket LGA1156. 80.0 x 15.0 mm blower with PWM function, Copper for 1U server solution.


Key Features
  • Dynatron K199 Copper Heatsink and PWM Blower
  • Supports Intel Socket LGA115X and LGA1200
  • Up to 5000RPM, 14.719 CFM
  • Supports up to 95W TDP
  • Pre-Printed Thermal Grease
Technical SpecificationsManufacturerDynatronPart Number K199CPU Support Supports Intel LGA 115X/1200
Active Cooler for 1U HeightMaterial Copper Heatsink with Skiving Fins
2 Ball BearingConnection 4-Pin (PWM)Voltage12VSpeed At Duty Cycle 0~20%: 1200 RPM
At Duty Cycle 50%: 2600 RPM
At Duty Cycle 100%: 5000 RPM
PerformanceAt Duty Cycle 0~20%: 3.533 CFM
At Duty Cycle 50%: 7.654 CFM
At Duty Cycle 100%: 14.719 CFM
VolumnAt Duty Cycle 0~20%: 20.71 dBA
At Duty Cycle 50%: 37.5 dBA
At Duty Cycle 100%: 51.7 dBA
Dimensions85 x 81.5 x 28.5mm
3.35" x 3.21" x 1.12" (in inches, approximate)Blower Dimensions 80 x 80 x 15mm
3.15" x 3.15" x 0.60" (in inches, approximate)Weight 355 grams
12.5 ouncesFeatures GE-Toshiba TIG830SP Pre-Printed Thermal Grease
