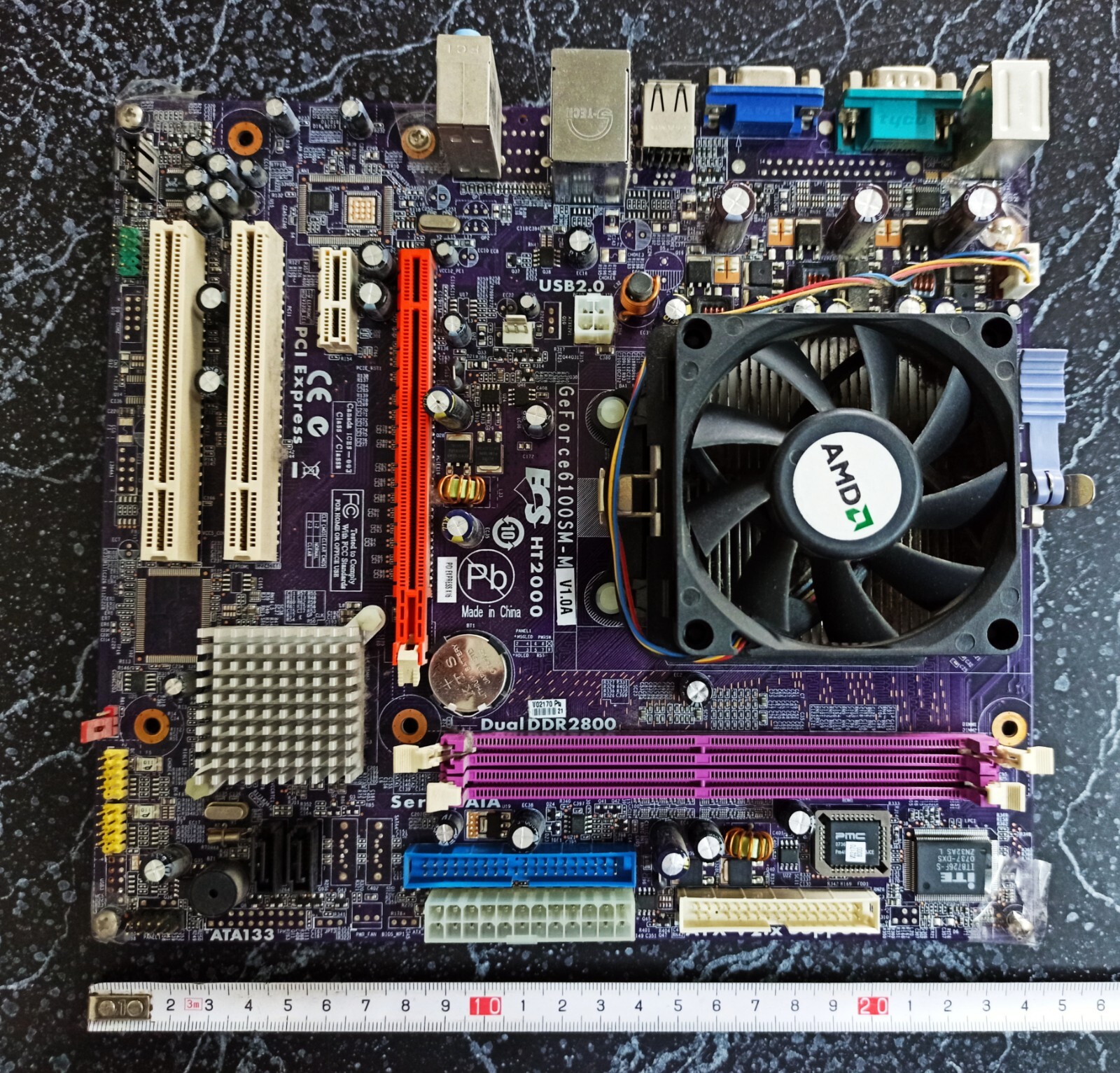

ECS Motherboard GEFORCE 6100SM
Price: RO $49.99
This ECS Motherboard GEFORCE 6100SMis the perfect choice for those who want to upgrade their computing experience. With compatibility for AMD CPU brands, this motherboard has 2 memory slots and multiple input/output ports including VGA, USB 2.0, and USB-C. It is designed to cater to casual computing needs and is manufactured in China. The memory type for this motherboard is DDR2 SDRAM, providing efficient and reliable performance. It is the ideal motherboard for those looking to upgrade their computer components and parts for optimal computing.
CPUSocket AM2 with AMD Athlon 64 FX/ Athlon 64/ Athlon 64 X2 Dual-Core/ Sempron processorHigh-performance Hyper Transport CPU interface.Support transfer rate of 2000/1600/1200/800/400 mega-transfers per second.
GRAPHICSOn Chip (NVIDIA GeForce 6150SE-based. 2D/3D graphic engine)Share Memory: Maximum up to 256MB
MEMORY2 x 240-pin DDR2 DIMM socket support up to 16 GB** (Due to the DRAM maximum size is 2GB at present, the memory maximum size we have tested is 4GB)Dual-channel DDR2 memory architectureSupport DDR2 800/667/533/400 DDR2 SDRAM
EXPANSION SLOT1 x PCI Express x16 slot (runs in x8 mode)1 x PCI Express x1 slot2 x PCI slots
STORAGESupport by NVIDIA GeForce 6150SE/nforce 4052 x Ultra DMA133/100/66 devices2 x Serial ATA 3.0Gb/s devicesRAID0 & RAID1 configuration
AUDIORealtek ALC660/ALC662 6-channel audioCompliant with HD audio specification
LANBroadcom AC131 10/100 Lan Phy
REAR PANEL I/O1 x PS/2 keyboard & PS/2 mouse connectors1 x Serial port (COM1)1 x VGA port1 x RJ45 LAN connector4 x USB ports1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS1 x 24-pin ATX Power Supply connector1 x 4-pin ATX 12V connector1 x FDD connector1 x IDE connector2 x Serial ATA connectors2 x USB 2.0 headers support additional 4 USB 2.0 Ports1 x Front panel switch/LED header1 x Front panel audio header1x CD in headerCPUFAN/SYSFAN connectors1 x Buzzer
SYSTEM BIOSAward BIOS with 4Mb Flash ROMSupports Plug and Play 1.0B, APM 1.2, Multi Boot, DMISupports ACPI revision 1.0 specification
