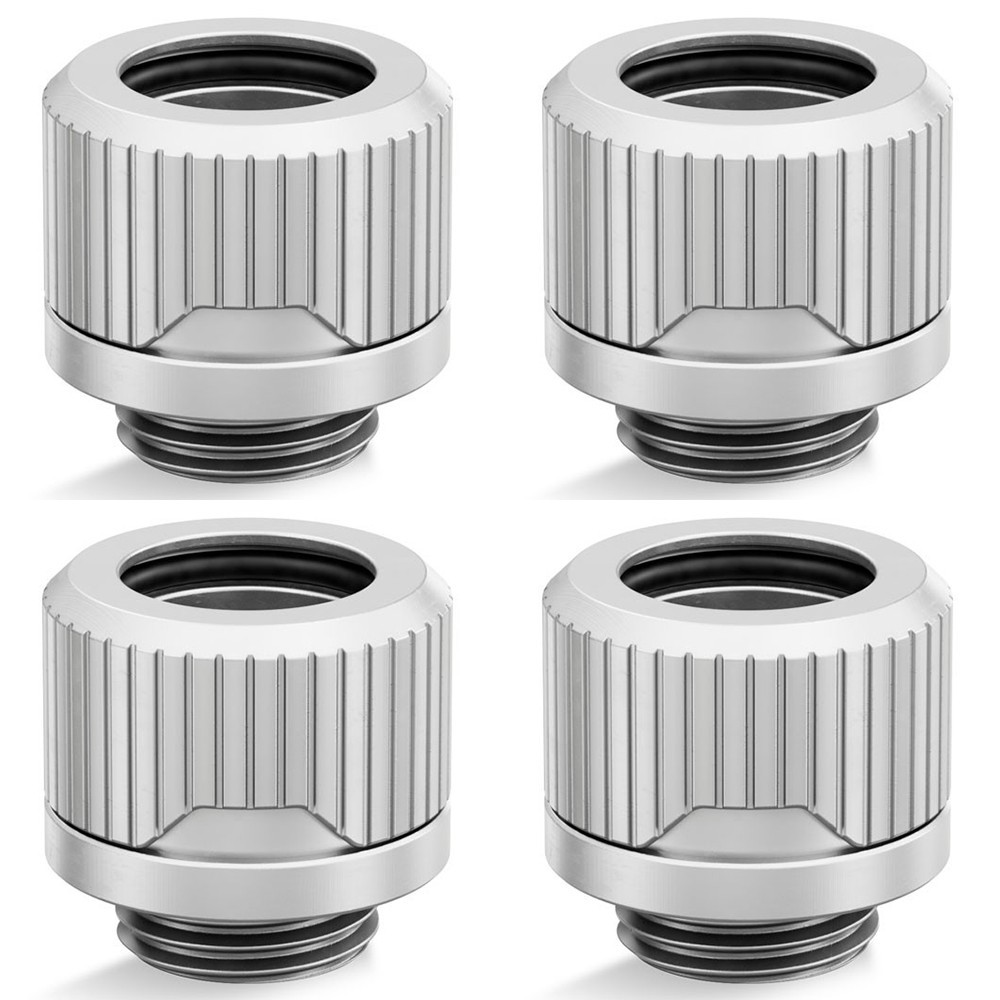

EK-Quantum Torque HDC 12 is EK's premium 12mm hard-tube compression fitting designed for use with rigid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all.

EK-Quantum Torque series products received the prestigious iF Design Award. A robust and industrial aesthetic sets the Torque family apart by highlighting the precise manufacturing processes used to create them. The Torque family of fittings offers a secure and modular system of connections between liquid cooling components and tubing within a PC. Quantum Torque series products cover angled adapters, rotary and static extenders, splitters, G1/4" plugs, drain valves, fittings, and much more.

The locking ringprevents the solid tube from being pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening.

The fittingbarb and the compression ringsare covered with a unique, high-quality satin black finish.Both are made of CNC machined brass and the seal is made quality rubber O-rings.Satin TitaniumEK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.

The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It's highly recommended to use anAllen Key 9mm(purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessiveforce when attaching fitting barbs using Allen Key 9mm in order to prevent damage to other liquid cooling products! We recommend using theEK-Loop Multi Allen Key (6mm, 8mm, 9mm)which is made to break if excessive force is used, thus preventing damage to more costly components of your loop.

These fittings are guaranteed to be compatible with all other EK Water Blocks liquid cooling products.

Technical data:
- Finish:Satin Titanium
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 20mm
- Installed height: 15mm
- Compatible rigid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel

Made in Europe - Slovenia!

PLEASE NOTE:

• The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
• Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
• Do not use excessive force when inserting solid tube!
• Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
• It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
• This product shouldNOTbe installed with any aluminumFluid Gamingparts!
• Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
