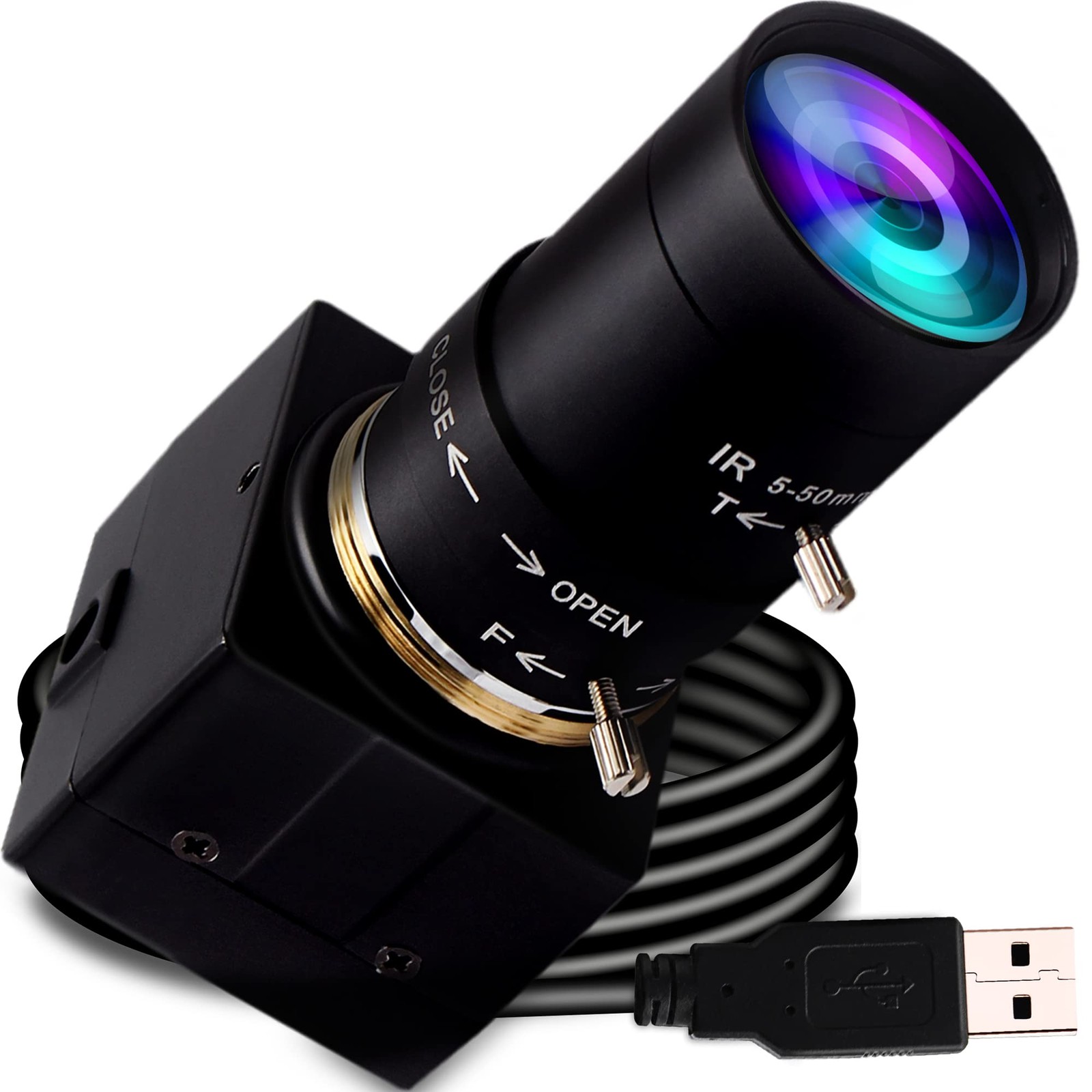

ELP 5-50mm Varifocal Lens 1080P USB Camera with H.264 High Definition Sony IMX323 Webcam for Android Linux Windows Industrial Video
- 5-50mm varifocal Lens for all kinds of distance adjustable
- Ultra Low light Camera, Minimum illumination 0.01lux
- Equiped 3Meters usb cable, Support otg optional
- H.264 High resolution with Sony IMX323 sensor
- White balance Function: Resolve color reduction and tone processing issues
ELP 5-50mm Varifocal Lens Industrial USB Camera With Black Housing HD 1080P Sony IMX322 Webcam Specification
Model:ELP-USBFHD06H-SFV (5-50mm varifocal lens)
Sensor: Sony IMX322
Lens Size: 1/2.9 inch
Pixel Size:12.8X11.6 mm
Image area:2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution:1080P
Compression format:H264 /MJPEG / YUV2（YUYV）
Resolution & frame
H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /
800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps
/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /
640X480@ 30fps /800X600@ 15 fps S/N Ratio:42dB
Dynamic Range:86dB
Sensitivity: 5.0V/lux-sec@550nm
Mini illumination: 0. 01 lux
Shutter Type: Electronic rolling shutter / Frame exposure
Connecting Port type: USB2.0 High Speed
Free Drive Protocol: USB Video Class（UVC）
Support OTG Protocol: USB2.0 OTG
AEC: Support
AEB: Support
AGC:Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness,
Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter: 5-50mm Varifocal lens
Digital audio: Need customize
LED board power connector: Support 2P-2.0mm socket
Power supply: USB BUS POWER 4P-2.0mm socket
Power supply: DC5V
Operating Voltage: 140mA~190mA
Working current: -10～70℃
Working temperature: -20～85℃
Cable: Standard 3M
Operating system request: Win7 Win8,Linux 2.6 or above, Android 4.0 or above
