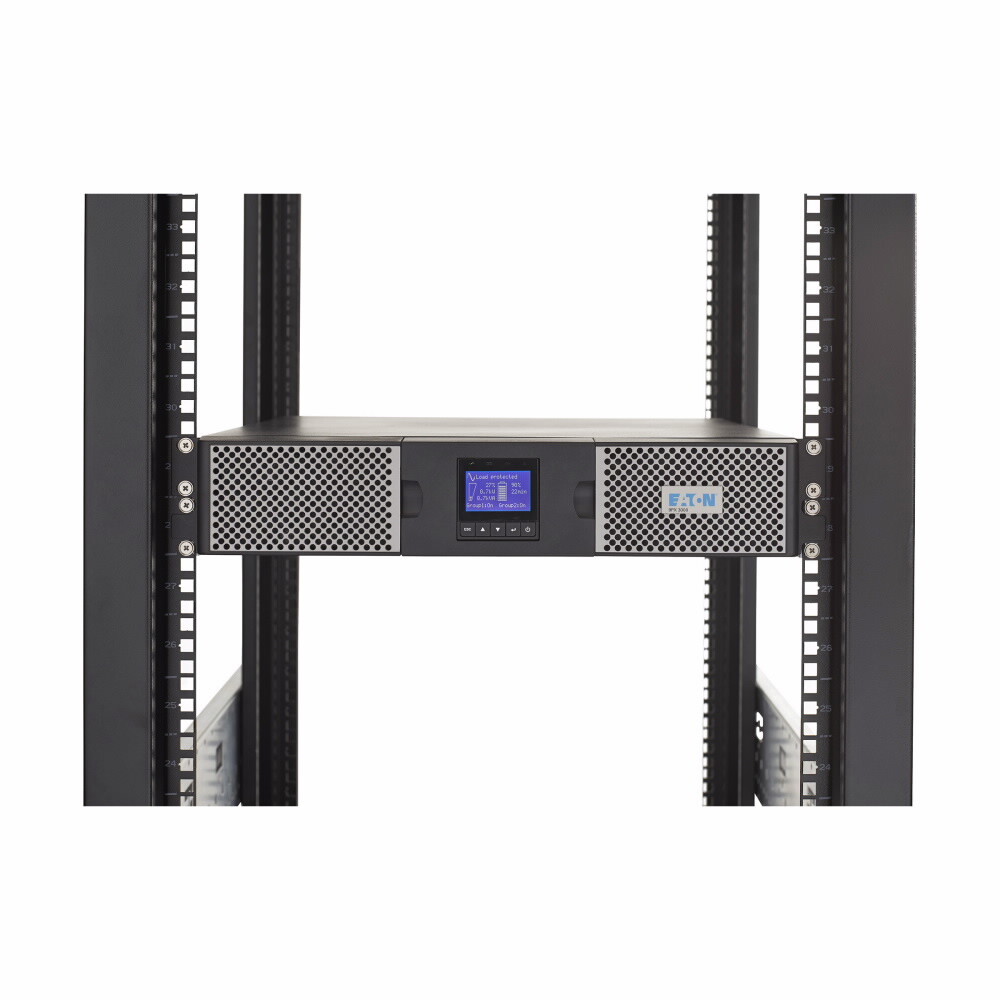

Eaton 9PX 9PX3000RTN 3000VA/2700W 120V Online Rack / Tower UPS w/Network onlineConfigurationRack/TowerCatalog Number9PX3000RTNColorBlack and silverRating (VA/Watts)3000/2700
DiagnosticsFull system self test at power up, and ABM test every 30 daysUPS BypassEHBPL3000R-PDU1U optionalDimensions (H x W x D, inches)3.4 (2U) x 17.3 x 23.8Dimensions (H x W x D, mm)86.5 x 440 x 605Weight (kg)28.6Weight (lbs)63.1Warranty2 yearsRail Kit Included4-post rail kit and tower pedestals includedRemote Emergency Power off (REPO)ROO/RPO: Rear deck emergency stop connectors (for remote on/off and power off)Contents
(Ships with the following items)9PX3000RTN 3 kVA UPS
Gigabit Network card (Network-M2)
4-post rail kit
Safety manual
User manual
Tower pedestals
RS-232 serial cable
USB cable
Intelligent Power Software Suite CDEfficiency91% with resistive loadElectrical InputConnection(1) NEMA L5-30P
Input Cord8 feetInput Voltage RangeFull load: 100-144V, <30% load: 60-144VNominal Voltage120V default (100/110/120/125V)Frequency50/60 HzFrequency Range60 Hz: 50–70 Hz, 50 Hz: 40–60 HzInput Power Factor>.99Input Current Distortion<5%Electrical OutputNominal Voltage120V default (100/110/120/125V)Output voltage regulation±1% steady-stateVoltage THD<3% for linear loadsOutput Receptacles(6) NEMA 5-20R
(1) NEMA L5-30R
Transfer Time0 msCircuit Breaker(2) 20A for 5-20ROptional Extended Battery Module9PXEBM72RTBattery DescriptionSealed, lead-acid; maintenance freeMaximum number of extended battery modules (EBM)Add up to 4 extended battery modules (EBM)Battery ManagementABM technology; 3-stage charging extends battery service life by 50% and provides advance warning for battery replacementBattery ReplacementReplaceable internal batteries and extended battery modules (EBMs)Start On BatteryCold-start enabled; first cold start is always forofferdenCommunicationsUser InterfaceGraphical display. UPS status in a single view.LEDs4 status-indicating LEDsCommunication PortsRS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables includedCommunications Card SlotsGigabit Network Card (Network-M2) includedPower Management SoftwareEaton Intelligent Power ManagerEnvironmental & StandardsRoHS ComplianceYesSurge ProtectionIEEE ANSI C62.41 Cat B2Heat Dissipation (BTU)Online: 844
Battery: 1462
(BTU/hr; battery full charged, resistive load)Audible Noise≤47 dB at 1 meterOperating Temperature0 to 40°C (32°F to 104°F)Safety markingsCE / cULus / NOMEMC MarkingsIEC 62040-2 Cat C1 / CISPR22 / FCC part 15 Class B / VCCI Class BStorage Temperature0 to 35°C (32°F to 95°F); without batteries: -15 to 55°C (5°F to 131°F)Relative Humidity0 to 96% non-condensingAltitude3000m
