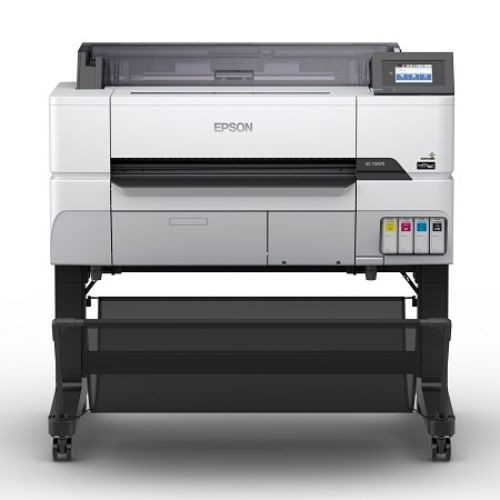

Epson SureColor T3475 Printer SCT3475SRProduct Overview

• 24" wide-format inkjet printer engineered for workgroup productivity and commercial-grade output.
• Delivers A1/D-size prints with precision in as fast as 25 seconds.
• Ideal for technical drawings, blueprints, schematics, posters, and charts.
• Built with Epson's PrecisionCore MicroTFP printhead, offering sharp detail and vibrant color performance.
• High-capacity UltraChrome XD2 pigment inks ensure long-lasting and smudge-resistant results.
• Compact and robust construction fits seamlessly in office or industrial environments.

Core Features

• Print Speed: Delivers an A1/D-size print in just 25 seconds, enhancing operational efficiency.
• Touchscreen Interface: 4.3" color LCD touchscreen for intuitive printer control and navigation.
• Connectivity: Supports SuperSpeed USB, Ethernet, Wireless LAN, and Wi-Fi Direct.
• PC-Free Printing: Capable of printing directly from USB thumb drives for added flexibility.
• Secure Printing: Equipped with advanced network security and encryption features to protect sensitive data.

Image Quality and Performance

• Precision Printing: 4-channel PrecisionCore MicroTFP printhead with drop-on-demand technology.
• Print Resolution: Up to 2400 x 1200 dpi, producing crisp lines and detailed graphics.
• Ink Efficiency: Uses variable droplet technology with droplets as small as 4 picoliters for optimized ink use.
• Nozzle Count: 800 nozzles per channel, designed for high-volume output.

Media and Paper Handling

• Maximum Width: Supports paper widths up to 24 inches.
• Roll Media: Accepts rolls with diameters up to 6.6", using 2" or 3" core adapters.
• Cut Sheets: Accepts single sheets from 8.27" width and above.
• Media Thickness: Handles media up to 11.8 mil thick.
• BorderFree Printing: Supports common widths including 10", 13", 17", and 24".
• Cutter System: Built-in high-speed rotary cutter for both manual and automatic trimming.

Environmental and Operational Specs

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -4°F to 104°F (-20°C to 40°C)
• Humidity Range: Operating: 20–80%, Storage: 5–85% (no condensation)
• Acoustic Levels: Approx. 50 dB(A) during operation, 32 dB(A) in sleep mode
• Dimensions with Stand: 43" x 30" x 42"
• Weight with Stand: 141 lbs (64 kg)
• Power Consumption: Printing: 34 W, Ready: 13 W, Sleep: 1.3 W, Off: 0.25 W

Accessories

• Included in the Box:
  • SureColor T3475 Printer
  • Initial Ink Cartridges (110 mL for Cyan, Magenta, Yellow, Black)
  • User Guide
  • Start Here Poster
  • AC Power Cable
• Ink Cartridges:
  • 110 mL (Cyan: T41W220, Magenta: T41W320, Yellow: T41W420, Black: T41W520)
  • 350 mL (Cyan: T41P220, Magenta: T41P320, Yellow: T41P420, Black: T41P520)
  • 700 mL (Cyan: T41N220, Magenta: T41N320, Yellow: T41N420, Black: T41N520)
• Extended Service Plans:
  • 4-Year On-Site Repair (Preferred Plus)
  • 2-Year On-Site Repair (Preferred Plus)
  • 1-Year On-Site Repair (In Coverage or Out of Coverage options)

Additional Information

• Compatible Operating Systems: Windows XP through Windows 10 (32-bit and 64-bit), macOS 10.7 to 10.13
• Eco-Conscious Certifications: ENERGY STAR qualified, RoHS compliant, recyclable design
• Country of Origin: Manufactured in Indonesia
• Warranty: 1-year limited warranty with usually next-business-day on-site repair and toll-free support
