Specifications:

Color:Blue/Black

Chipset: Cmedia CM6206

Inputs: SPDIF in, Line in, Mic in.

Outputs: SPDIF out, Front out, Rear out, Cen/Bass out

Sampling Rate Support: 32KHz, 44.1KHz and 48KHz sampling rate in digital and analog recording

USB Compliant Support: USB specification V1.1, USB audio device class V1.0

Transmission speed: full speed 12M/bit

Compatible with: for Windows XP, for Vista, for Windows 7, 8, 8.1, and for Windows 10

Features:

Supports SES/EBU, IEC60958, S/PDIF consumer formats for stereo PCM audio

Supports analog recording function

Supported SCMS copy protection

2x interpolator for digital playback data to improve quality

3 Input terminals and 3 Output terminals

Dolby digital audio streaming via S/PDIF out

Fully duplex playback/recording of audio stream without a sound card in PC

Stereo MIC support with 33db maximum capability

6 channel DAC output with 16 bit resolution

Fixed 48KHZ sampling rate for 5.1 channel playback

USB spec 2.0 full speed 12M/bit serial data transmission compliant

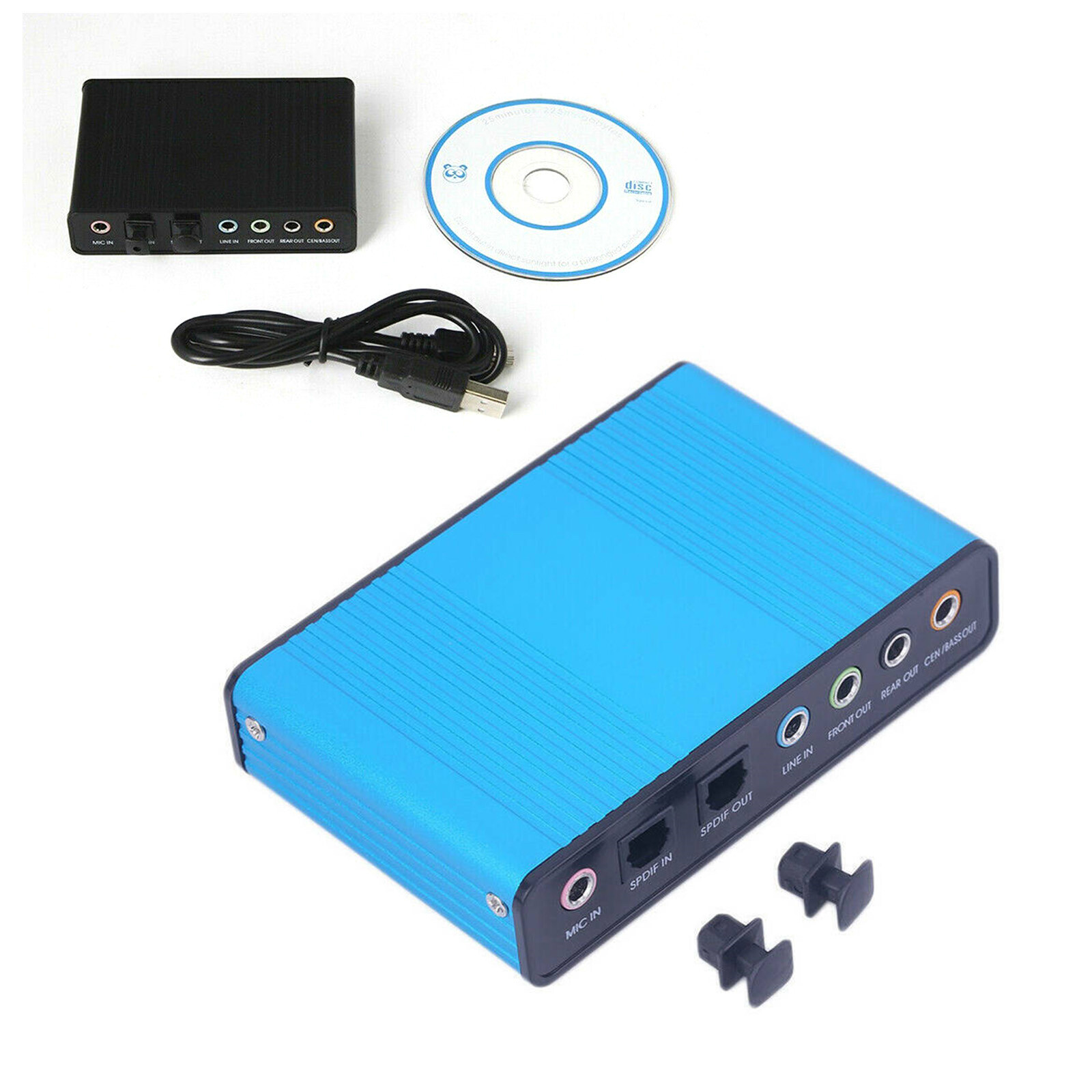

Package Included:

1x Sound Card Audio Adapter

1x Mini CD with Drivers

1x USB Cable
