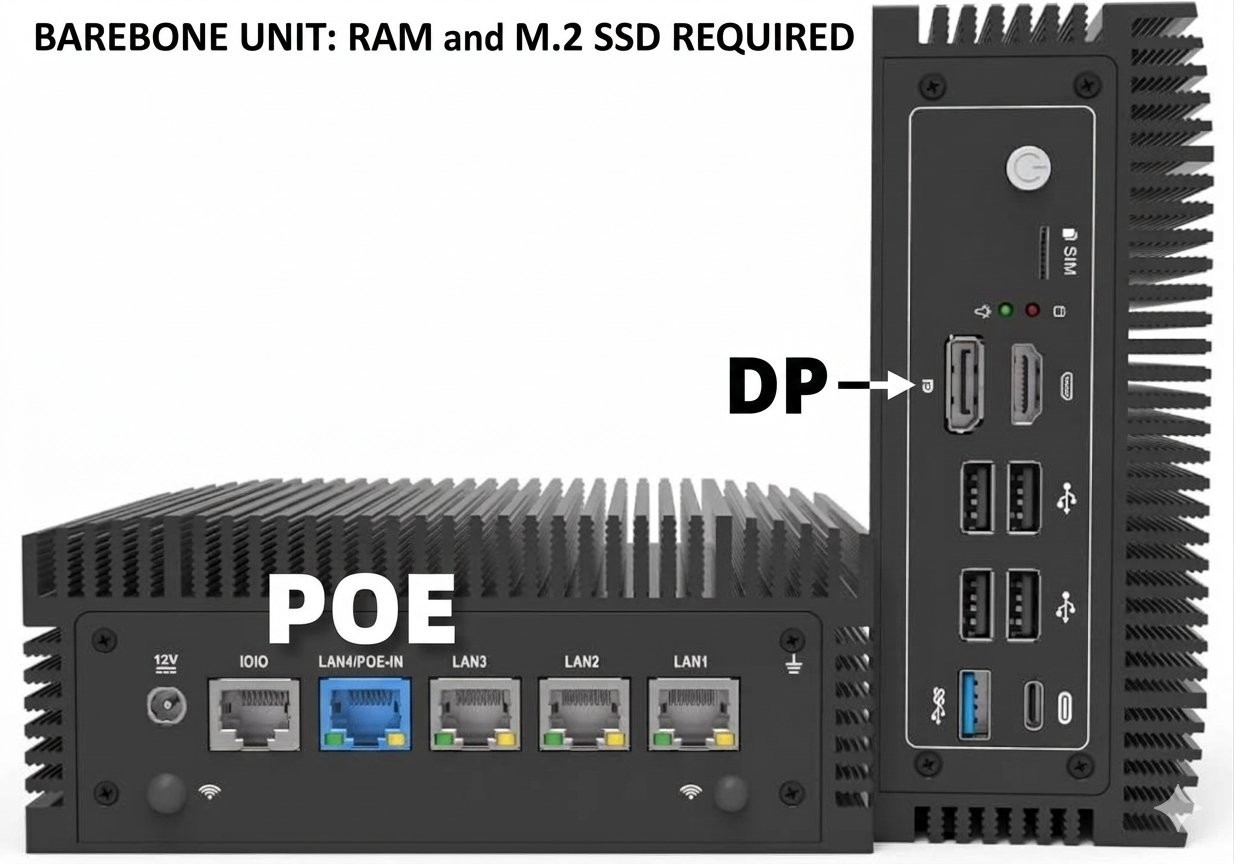

Fanless Mini PC N100 Firewall Appliance 4x 2.5GbE Intel i225 LAN PoE-In Barebone
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Fanless Mini PC N100 Firewall Appliance 4x 2.5GbE Intel i225 LAN PoE-In Barebone
Price: US $175.00

Brand New Industrial Fanless Mini PC / Firewall Appliance (Barebone Unit)

Up for sale is a brand-new, never-used fanless mini PC firewall appliance. It was removed from its original box but has never been deployed or turned on.

PLEASE NOTE: THIS IS A BAREBONE UNIT. NO RAM AND NO SSD/NVME STORAGE ARE INCLUDED.
You must install your own SODIMM DDR4 RAM and M.2 SATA/NVMe SSD before this unit will turn on or boot.

Key Features & Specs:
  • Processor: Intel N100 (4 Cores, 4 Threads, up to 3.4GHz, ultra-low 6W TDP).
  • Networking: 4x 2.5GbE Intel i225 RJ45 LAN ports. Ideal for pfSense, OPNsense, Sophos, or OpenWrt router setups.
  • PoE-In Support: LAN port 1 supports Power over Ethernet input (PoE+ 802.3at / PoE++ 802.3bt). Note: Does not support 802.3af 15W.
  • Memory Support: 1x SODIMM slot (Supports DDR4 2666/3200MHz up to 32GB).
  • Storage Support: 1x M.2 2280 slot (Supports up to 2TB SATA/NVMe SSD).
  • Display Output: 4K@60Hz Dual Display support via 1x HDMI 2.0 and 1x DisplayPort 1.4.
  • Front & Rear I/O: 1x USB-C, 1x USB 3.0, 4x USB 2.0, 1x RJ45 COM (RS232) port, 1x SIM card slot (requires separate 4G/5G module).
  • Silent & Maintenance-Free: Heavy-duty aluminum heatsink design for silent 24/7 passive cooling.
  • Motherboard Model: Industrial OEM Mini-ITX Custom Board (manufactured by FORTEKCHEKIN / Neosmay; model variant commonly listed as AC8F-POE or CW-N100).
  • Graphics Processing Type: Integrated Graphics (Processor Graphics) via Intel UHD Graphics (Alder Lake-N architecture with 24 Execution Units).
  • GPU Storage Type: Shared System Memory (Dynamic Video Memory / VRAM allocated dynamically from your installed DDR4 SODIMM RAM).
What’s Included:
  • 1x Fanless Mini PC Chassis / Board
  • 1x 12V DC Power Adapter
  • 2x External Wi-Fi Antennas
  • 1x HDMI Cable
  • 1x Set of Mounting Screws

(Original retail product box, VESA mounting bracket, RAM, and SSD storage are NOT included).

Item SpecificsFieldValueBrandFORTEKCHEKIN / Unbranded / OEMForm FactorMini PC / Micro Firewall ApplianceProcessorIntel N100 Quad-Core (Up to 3.4GHz, 6W TDP)RAM SizeNONE (Barebone Unit - Requires RAM)Storage TypeNONE (Barebone Unit - Requires SSD)Operating SystemNot Included (Supports Windows 11, OPNsense, pfSense, Proxmox, Ubuntu)Network Connectivity4x 2.5 GbE RJ-45 LAN (Intel i225), Supports PoE-InVideo Outputs1x HDMI 2.0, 1x DisplayPort 1.4USB Ports1x USB 3.0 Type-C, 1x USB 3.0, 4x USB 2.0FeaturesFanless Cooling, Auto Power On, Wake-on-LAN, PXE Boot, RS232 COM Port, SIM Card Slot (4G/5G ready)ConditionOpen box / New without box (Never used)
