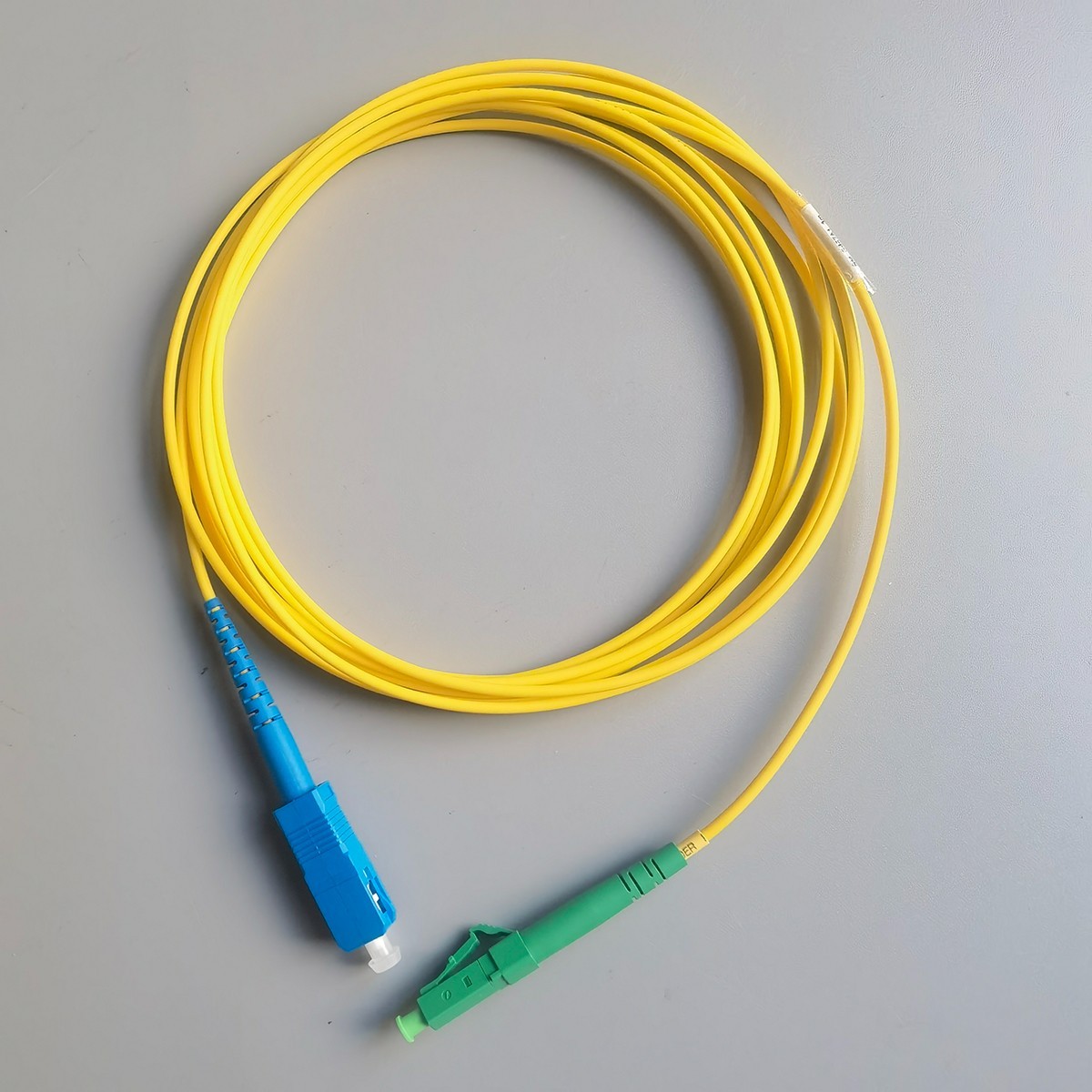

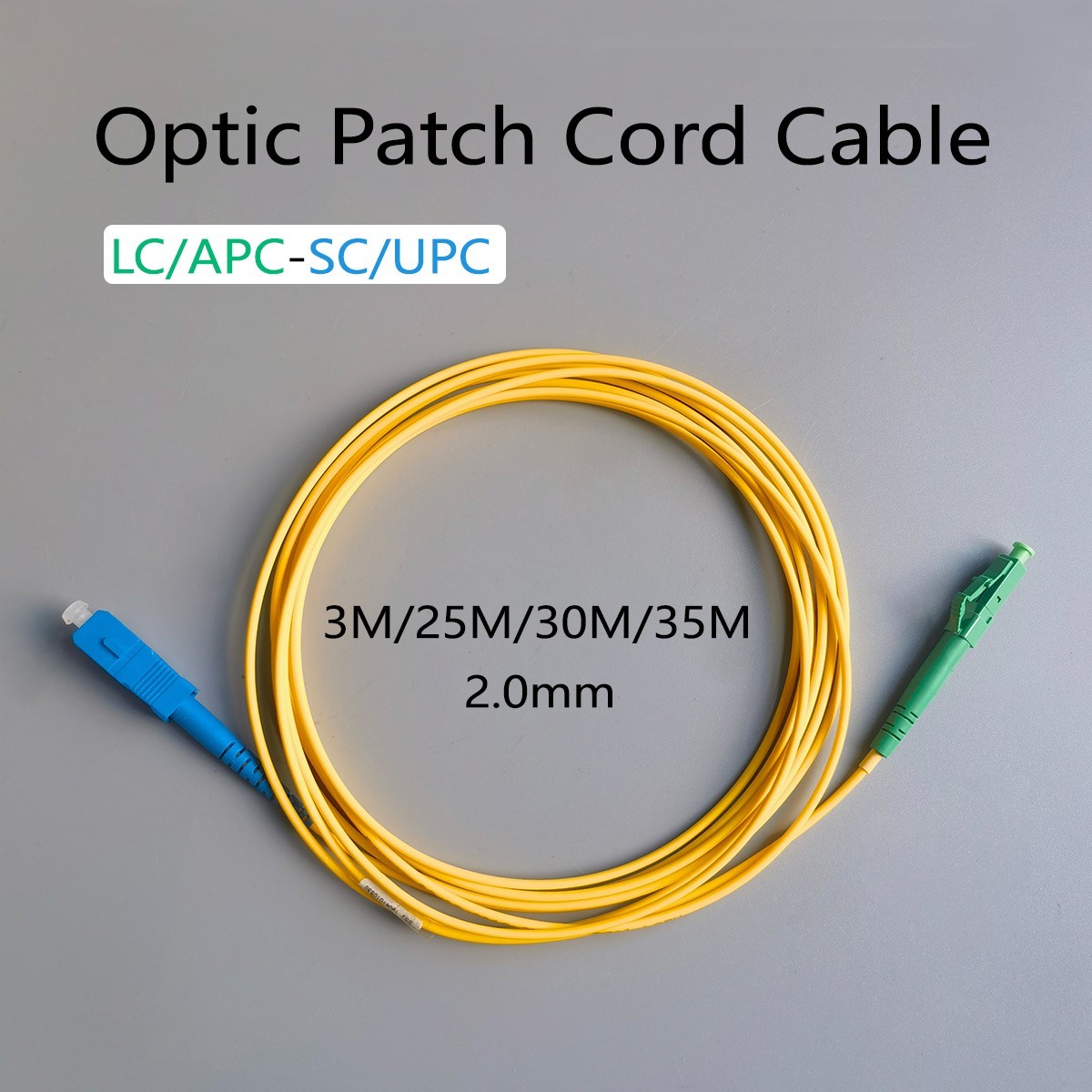

Connector Type:LC/APC to SC/UPC

• LC/APC (Green Boot):Angled Physical Contact (APC) polish provides superior return loss performance, essential for modern high-power and video applications. The compact LC connector is ideal for high-density installations.

• SC/UPC (Blue Boot):Ultra Physical Contact (UPC) polish offers low insertion loss for reliable data transmission. The simple push-pull SC connector is a standard for ONTs and terminal equipment.

Cable Type:Simplex (Single Fiber)

Cable Length:3 M/25M/30M/35M

Fiber Type:Single Mode (OS2 Standard)

ITU Standard:G657A1

• Bend-Insensitive:Allows for very tight bending radii without significant signal loss, perfect for residential and office installations where cables are routed around corners or tucked into baseboards.

Cable Diameter:2.0mm

• Slim and Flexible:The thin, lightweight design reduces space congestion, improves cable management, and makes installation easy through conduits and ducts.

Jacket Material:LSZH (Low Smoke Zero Halogen)

• Enhanced Safety:In the event of a fire, LSZH material emits minimal smoke and no toxic halogen gases, protecting both people and sensitive electronic equipment. Ideal for use in confined spaces like offices, apartments, and public buildings.

Application:Specifically designed forFTTH (Fiber-to-the-Home), fiber optic internet (GPON, XPON, etc.), CATV, and telecommunications. Perfect for connecting your optical network terminal (ONT) to the external termination point.

Performance:

• Insertion Loss:≤ 0.3 dB

• Return Loss:LC/APC: ≥ 65 dB | SC/UPC: ≥ 50 dB

• Operating Temperature:-20°C to +70°C

• Durability:> 1000 mating cycles

Connecting an Optical Network Terminal (ONT) or modem to a wall-mounted fiber outlet.

GPON, XPON, and other FTTx network applications.

Data center interconnections where specific APC/UPC transitions are required.

Test and measurement equipment links.

Telecommunication networks and CATV systems.

1 x 3M Simplex LC/APC to SC/UPC Fiber Optic Patch Cable
