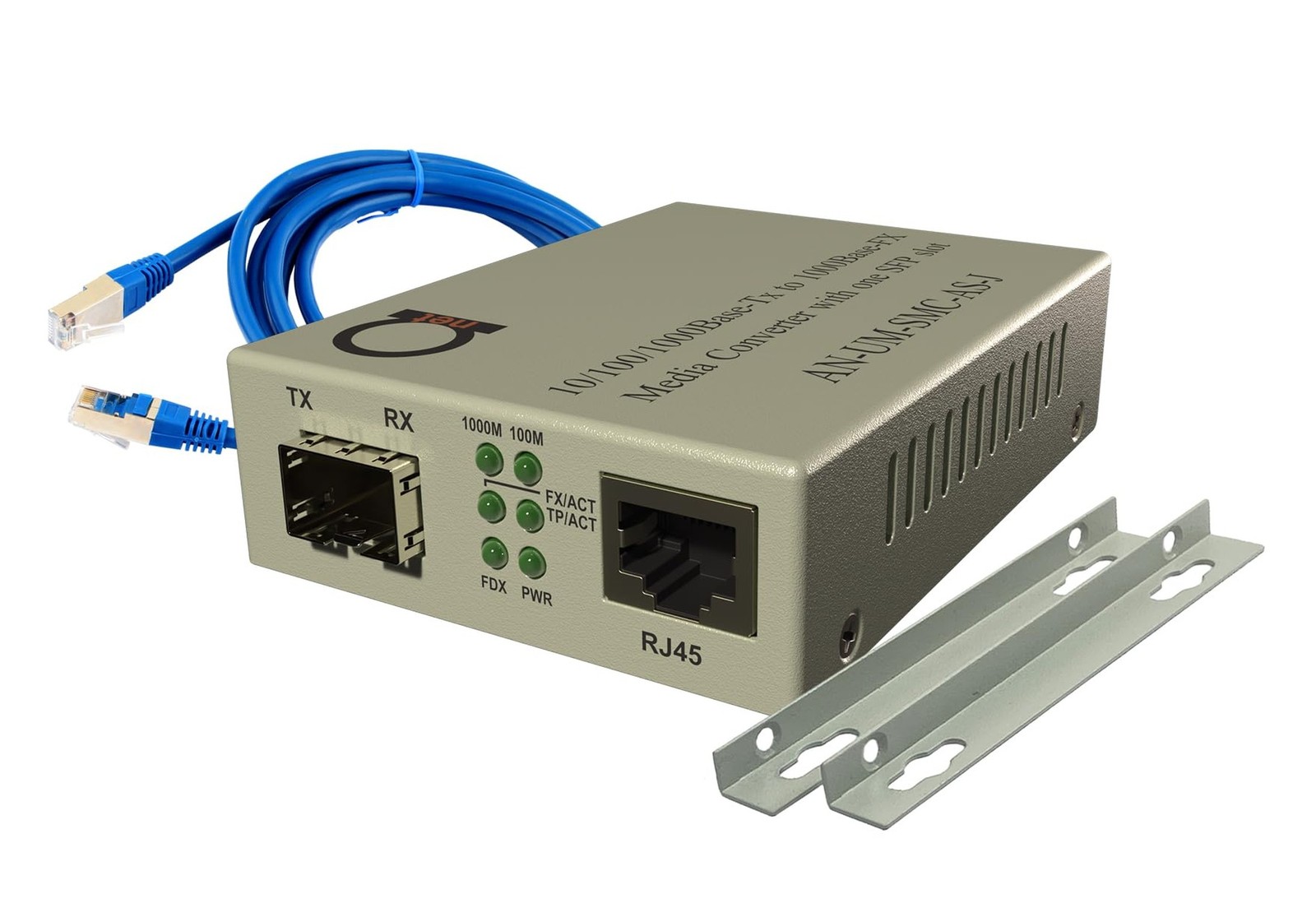

Fiber to Ethernet Media Converter, Open SFP Slot to Gigabit RJ45 Cat 5/6
Product Details

• Brand: ADnet
• Connector Type: Open SFP slot, RJ45
• Cable Type: Ethernet
• Compatible Devices: All 100M/1000M (1GbE) Ethernet Devices
• Special Feature: Broadcast Storm Control Switch, Fiber Port Speed Can Be Set to 100M/1000M, RJ-45 Autosensing or Force Set to 100MbE See more
• Connector Type: Open SFP slot, RJ45
• Cable Type: Ethernet
• Compatible Devices: All 100M/1000M (1GbE) Ethernet Devices
• Other Special Features of the Product: Broadcast Storm Control Switch, Fiber Port Speed Can Be Set to 100M/1000M, RJ-45 Autosensing or Force Set to 100MbE
• Ethernet Cable Category: Cat 6
• Connector Gender: Male-to-Female
• Data Transfer Rate: 1000 megabits_per_second
• Number of Pins: 8
• Frequency: 1250 MHz
• Maximum Voltage: 240 volts_of_alternating_current
• Connectivity Technology: Ethernet
• Recommended Uses For Product: Connecting and extending Ethernet networks, facilitating data transfer between Ethernet devices and fiber optic networks
• Specification Met: Ce, Fcc, Rohs, Lvd
• Indoor Outdoor Usage: Indoor
• Brand Name: ADnet
• Model Name: AN-UM-SMC-AS-J
• Model: AN-UM-SMC-AS-J
• Item Length: 7.1 centimeters
• Manufacturer: AD-net Technology, CO., LTD (Taiwan)
• UPC: 789185566579
• Part Number: AN-UM-SMC-AS-J
• Unit Count: 1 Count
• Item Weight: 183 g
• Color: Beige
• Item Shape: Rectangular

• NOT AN ISP / GPON FIBER TERMINAL - READ FIRST: this is a LAN media converter for your own fiber run between switches, buildings or rooms. It does NOT replace an ONT / GPON box from your internet provider, and GPON / XGS-PON ONU stick modules will NOT work in this slot. If you are looking for an ONT, this is not the product.
• CHOOSE YOUR OWN SFP - ANY BRAND, ANY DISTANCE: the open slot takes any standard 1G (1.25G) or 100M (155M) SFP module you like - single-mode, multimode or WDM - with no vendor lock or coding restriction. The module is not included, so you fit the exact wavelength and reach your fiber run needs.
• NO BUNDLED OPTIC TO PAY FOR: because you pick the module, you never buy an optic with the wrong wavelength, connector or reach for your fiber. That is why this is the lowest-cost converter in the range - you are not paying for a module you would have replaced anyway. One unit covers a short in-building hop or a long site-to-site run.
• GIGABIT COPPER, AUTO-NEGOTIATING: the RJ-45 port auto-senses 10 / 100 / 1000 Mbps and negotiates duplex automatically, so it links to whatever switch, router, NAS or PC you connect. Jumbo frame support for full throughput on file and backup traffic.
• 1G OR 100M - SET BY DIP SWITCH: a front DIP switch selects the fiber-side speed to match your SFP, so one unit covers both 1.25G and 155M modules. Requires a 1G or 100M SFP; 10G SFP+ modules will not link.
• HOT SWAP SUPPORT: Supports hot-swapping of SFP modules allowing you to change modules without powering down the device, providing flexibility for different fiber types and distances
• READY OUT OF THE BOX: ships with a 1m Cat6 patch cord and a wall mount. Plug the fiber and the RJ-45 in and the link comes up - no configuration, no management software, no drivers.
