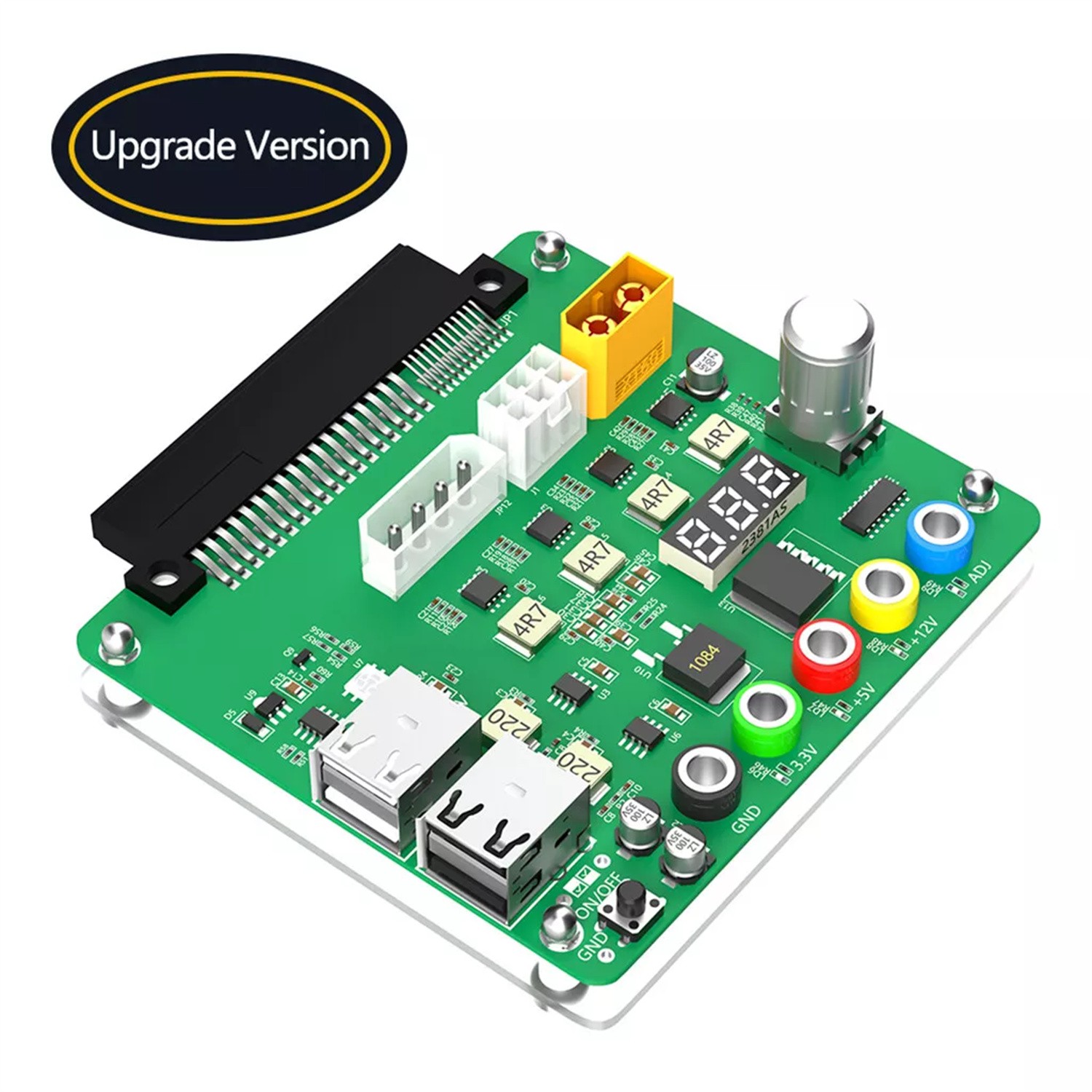

If you have any questions, please contact customer service first, do not open disputes easily, thank Supply Breakout Board for Dell-compatible brand PSU

2、This power supply breakout board, with adjustable voltage knob,

supports 3.3V, 5V, 12V and 1.8V-10.8V (ADJ-compatible) output voltage.

3、4 USB 2.0 ports design, supports QC 2.0/QC 3.0.

4、The voltage output terminals correspond to each screw terminal.

5、At the same time, the bottom panel is also equipped with an acrylic case kit for easy to use.

6、Compatible with 3.3V: STM32 MCU, network communication equipment,such as Wi-Fi Bluetooth-compatible and other devices, generally for microcontrollers

and some low-power modules, etc. 5V: Raspberry Pi-compatible, Banana Pi-compatible,Tinker-compatible Board, Nano Pi-compatible, USB interface, etc.

7、Compatible with 9V: Arduino, motor drive, display driver module,etc. 12V: motor drive, LED light, vehicle equipment with power requirements less than 24w, etc.

8、this board is only suitable for Dell-compatible brand PSU and the following model listed.750 Watt Platinum Rated 94% Efficiency 110-240v:D750E-S1, DPS-750AB-2 A, 05NF18

D750E-S6, DPS-750AB-15B, 05RHVV

E750E-S1, 700-013536-0100, 00XW8W

F750E-S0, S-0750ADU00-101, 06W2PW

L750E-S0, PS-2751-13D-LF, 0W8R3C

750w Watt Titanium Rated 96% Efficiency 200-240v:D750E-S7, DPS-750AB-17 A, 0KNHJV

1100 Watt Platinum Rated 94% Efficiency 110-240V:D110E-S0, DPS-1100BB B, 0PR21C

E1100E-S0, AA26510L, 0YT39Y

L1100E-S0, PS-2112-4D2-LF, 038GYJ

L1100E-S1 , PS-2112-8D2, 09TMRF

1050w @ 100-120V input

1100w @ 200-240V input

2000 Watt Platinum Rated 94% Efficiency 110-240V:D200E-S2, DPS-2000EB-2 A, 0960VR

1000w @ 100-120V input

1750w @ 200-205V

Package includes：

1 x Board UsWe accept all payments authorized by .
