Tested and working, with its two original Aspect 14 140mm case fans.
Includes three additional Thermalright TL-S12 ARGB 120mm fans.

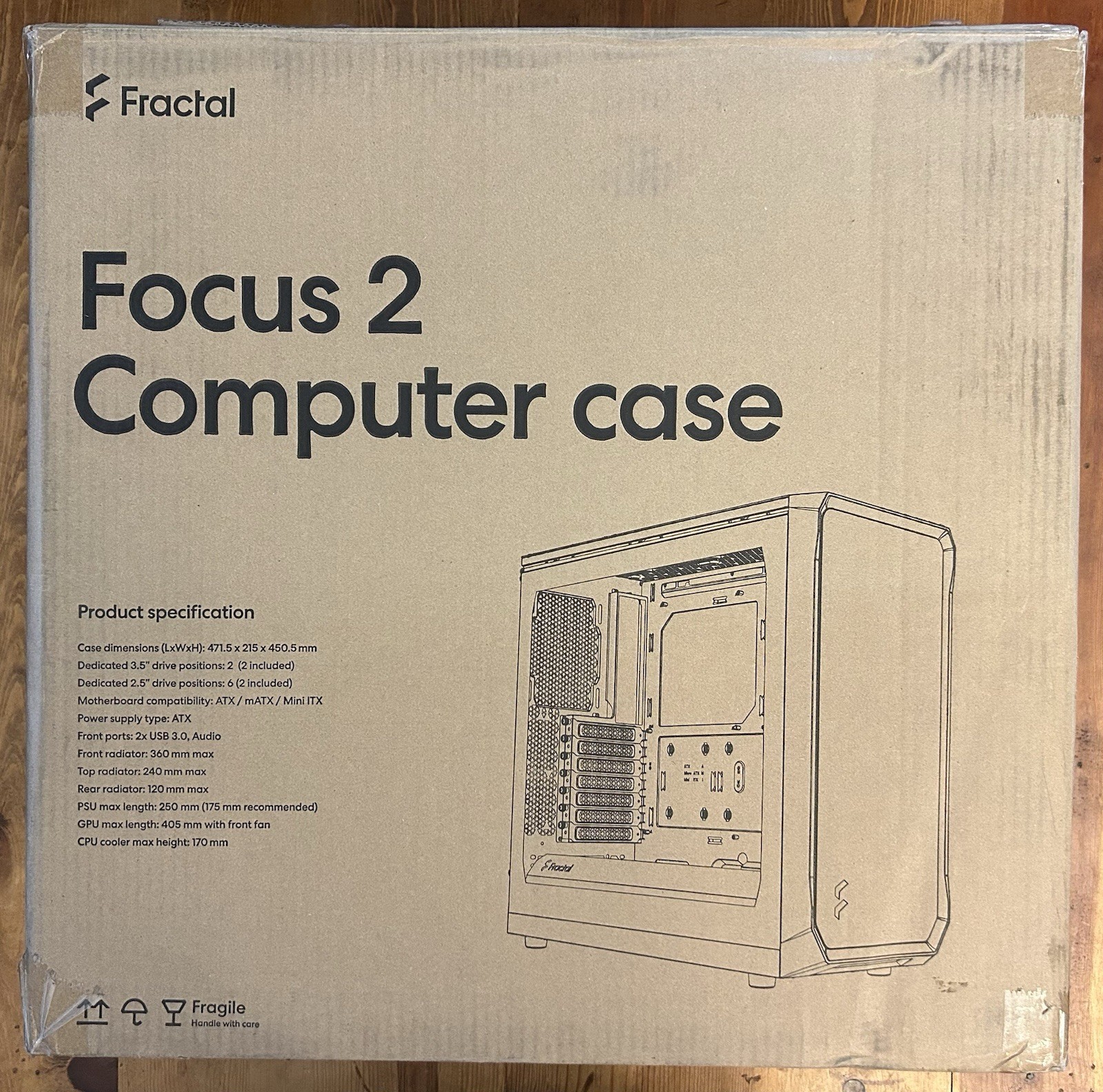

Case Overview:
Brand: Fractal Design
Series: Focus 2
Model: FD-C-FOC2A-07
Type: ATX / mATX / Mini-ITX Mid Tower
Color: Black
Case Material: Steel
Side Panel: No Window
Physical Dimensions & Weight:
• Height: 17.74"
• Width: 8.46"
• Depth: 18.56"
• Weight: 13.45 lbs
Motherboard Compatibility:
• ATX, mATX, Mini-ITX, Mini-DTX (up to 250mm max PSU length)
Internal Bays & Expansion:
• 3.5" Drive Bays: 2 included
• 2.5" Drive Bays: 2 included (6 total)
• Expansion Slots: 7
Fan Options & Cooling:
• Front: 3 x 120mm / 2 x 140mm fan slots (2 x 140mm fans pre-installed)
• Top: 2 x 120mm / 2 x 140mm fan slots
• Rear: 1 x 120mm fan slot
• Total Fan Slots: 6
Cooling Compatibility:
• Front Radiator: Up to 360mm / 280mm (with side panel removed)
• Top Radiator: Up to 240mm (max 46mm MB component height)
• Rear Radiator: Up to 120mm
Max Component Lengths:
• GPU Length: 405 mm with front fan mounted
• CPU Cooler Height: Max 170 mm
• PSU Length: Max 250 mm (recommended: 175 mm)
Dust Filters:
• Top: Plastic mesh
• Front: Steel mesh
• PSU Area: Nylon filter
Additional Notes:
• No built-in power supply
• Power supply mounted at the bottom of the case
• No LED lighting
• Optional USB 3.2 Gen 2x2 Type-C ports via upgrade kit (sold separately)
Case Fan Overview:
• Brand: Fractal Design
• Product Name: Aspect 14
• ARGB: No
• Size: 140 x 140 x 25 mm
• Screw hole pattern: 125 x 125 mm
• Power connector: 3-pin
• Bearing: Rifle
• Number of blades: 7
• Rotational speed: 1000 RPM
• Noise level: 19.5 dB(A)
• Max airflow (CFM): 41 CFM
• Max airflow (m³/h): 69.7 m³/h
• Max pressure: 1.02 mm H2O
• Fan typical input power: 0.96 W
• Fan max input current: 0.14 A
• Fan input voltage: 12 V
• Minimum startup voltage: 7 V
• MTTF: 90.000 h
• Unit weight: 155 g
• Cable length: 500 mm
• Cable type: Black/white ribbon (allows chaining)
Additional Fan Overview:
• Brand: Thermalright
• Name: TL-S12
• ARGB: Yes
• Dimension: L120 mm x W120 mm x H25 mm
• Rated Speed: 1500 RPM±10% (MAX)
• Noise Level: 23.2 dBA (MAX)
• Air Flow: 47.6 CFM (MAX)
• Air Pressure: 1.31 mm H2O (MAX)
• Ampere: 0.15A
• Connector: 4 PIN PWM
• ARGB Connector: 3 PIN 5V
• Bearing Type: S-FDB Bearing
