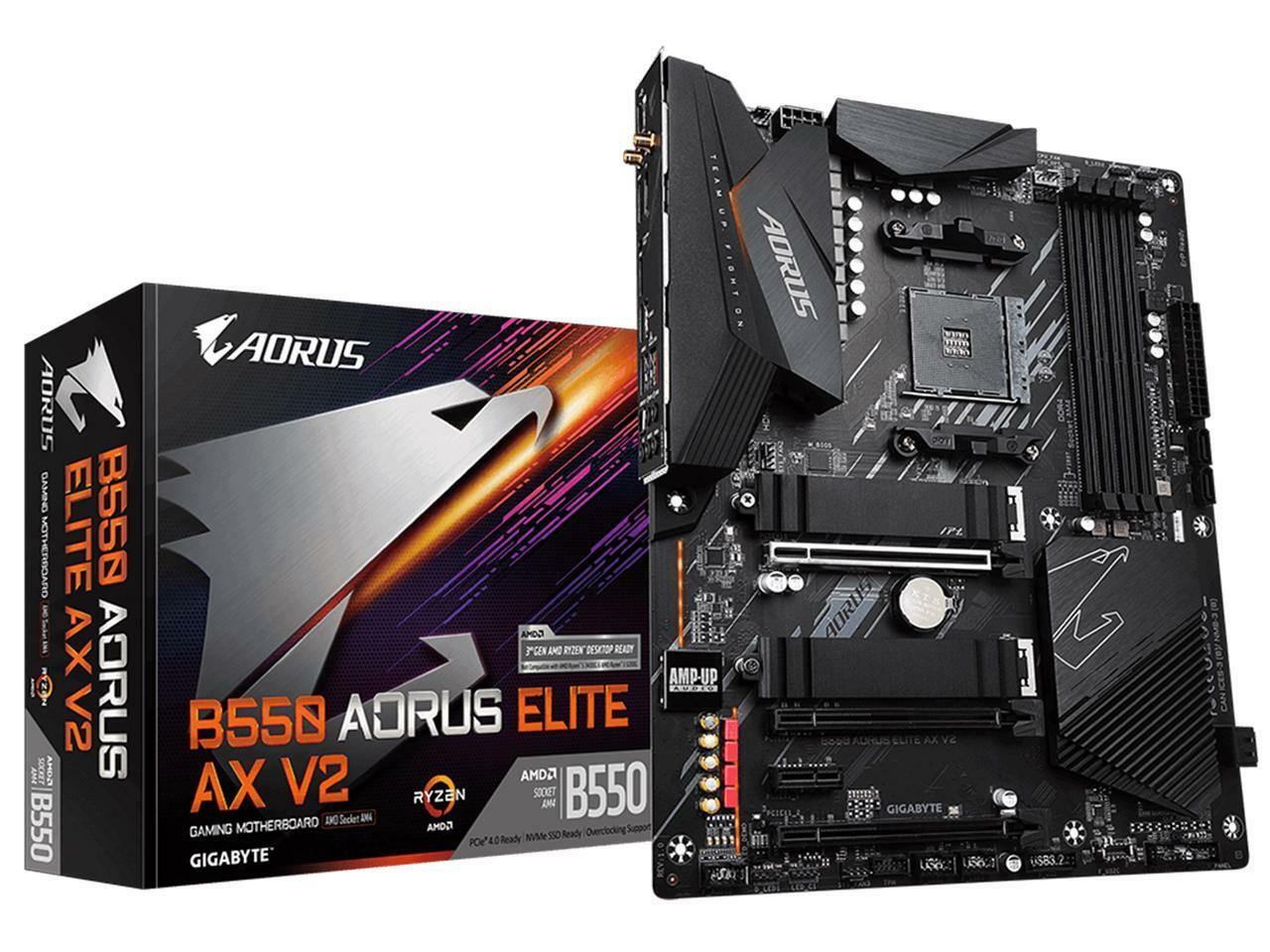

Learn more about GIGABYTE B550 AORUS ELITE AX V2ModelBrandGIGABYTEModelB550 AORUS ELITE AX V2Supported CPUCPU Socket TypeAM4CPU TypeAMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.ChipsetsChipsetAMD B550MemoryNumber of Memory Slots4x288pin (DDR4)Memory Standard3rd Gen AMD Ryzen Processors:Support for DDR4 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules3rd Gen AMD Ryzen with Radeon Graphics processors:Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesMaximum Memory Supported128GBChannel SupportedDual ChannelExpansion SlotsPCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode- 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.PCI Express 3.0 x161 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:- Supporting PCIe 3.0 x2 mode1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:- Supporting PCIe 3.0 x1 modePCI Express x161 x PCI Express x16PCI Express x11 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:- Supporting PCIe 3.0 x1 modePCI Slots2 x PCI SlotsStorage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDsSATA RAID0/1/10Onboard VideoOnboard Video ChipsetIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16GBOnboard AudioAudio ChipsetRealtek ALC1200Audio Channels2/4/5.1/7.1-channelSupport for S/PDIF OutOnboard LANLAN ChipsetRealtek 2.5GbE LAN chipMax LAN Speed2.5GbpsWireless LANIntel Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandSupport for 11ax 160 MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.BluetoothBLUETOOTH 5Rear Panel PortsBack I/O Ports1 x DisplayPort1 x HDMI port2 x SMA antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacksUSB 3.06 x USB 3.0Internal I/O ConnectorsOnboard USB1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headersOther Connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumperPhysical SpecForm FactorATXLED LightingRGBDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connectorWindows 11 CompatibilityWindows 11SupportedFeaturesFeaturesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.BIOS:1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)Realtek 8125 Gaming LAN Bandwidth Control UtilityOperating System:Support for Windows 10 64-bitShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.
