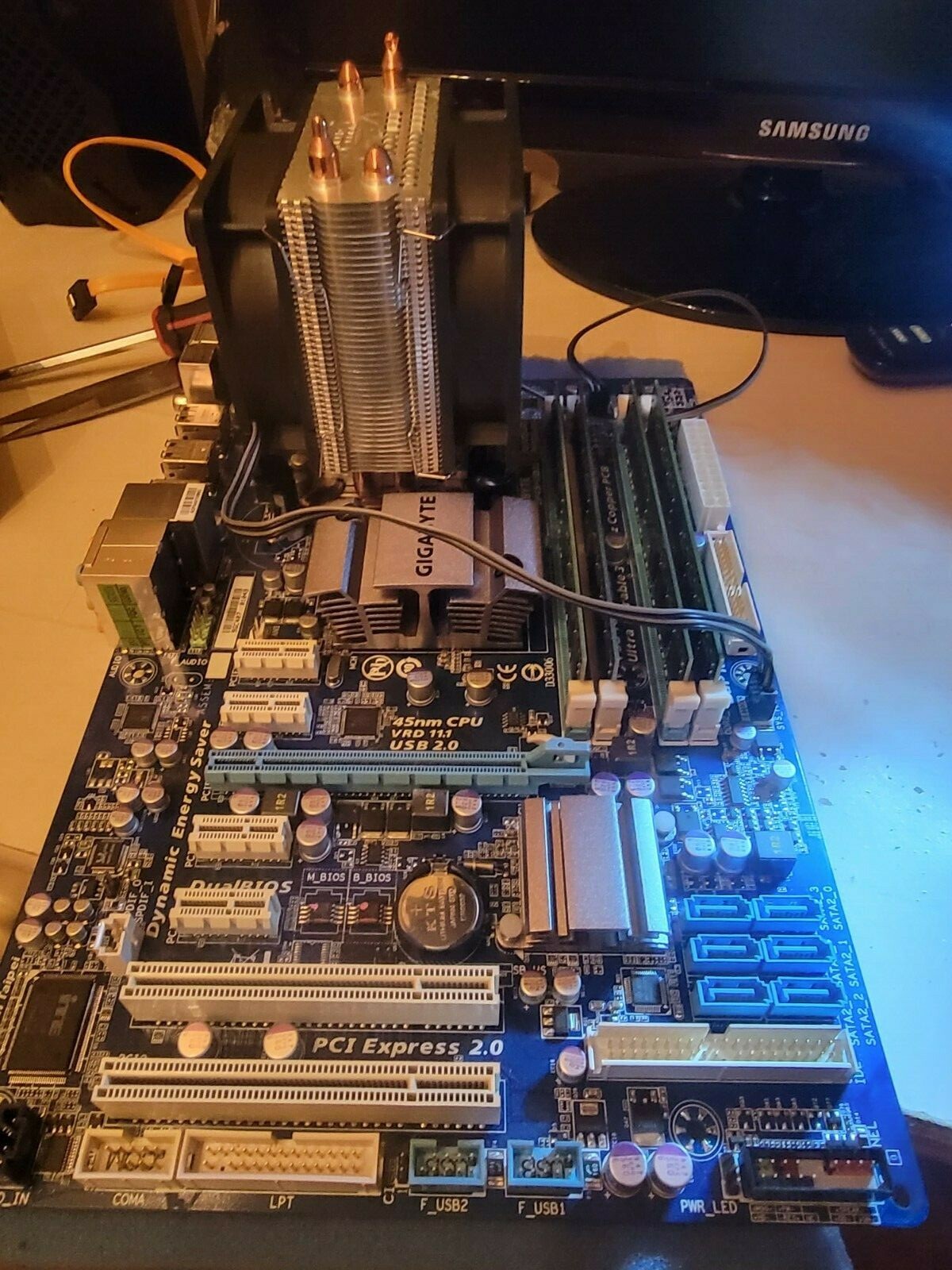

Gigabyte Computer Motherboard GA-EP45-UD3L (rev. 1.1) 1 year warranty on systems
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Gigabyte Computer Motherboard GA-EP45-UD3L (rev. 1.1) 1 year warranty on systems
Price: US $179.98
SOLD BY: CBCS CUSTOM NETWORKS, INC.THIS SALE ENDS ON (DECEMBER-31ST-2021)
LIMITED RETURNS: GOOD FOR (30 DAYS)Please Note: No returns on used hardware unless (D.O.A.). All hardware cannot be damaged and hardware that is returned will be inspected for damage or misuse. Limited returns are only good for 30 days on used hardware after purchase and you will be responsibleto pay for returns with all hardware still installed and properly packaged. All serial numbers will be confirmed and verified. All processors and memory must be installed, for our limited return period, the processor and memory cannot be removed during this 30 day limited return policy. Return policy will be void if these items have been tampered with, all hardware must remain installed as sent out during this 30 day period. We install processors on all of our mother boards to protect the pins.Motherboard, Memory, and Processor Only:ALL 3 FOR ONLY: $35.00
Gigabyte Computer MotherboardINCLUDES THE FOLLOWING:MAIN OFFER ABOVE ($179.99)INTEL QUAD CORE PROCESSOR-INCLUDED USED
8 GIG OF DDR2 MEMORY-INCLUDED USED
I/O SHIELD-INCLUDED USED
HEATSINK WITH DUAL FANS IN PICTURE - INCLUDED USED
240 GIG SSD DRIVE-INCLUDED BRAND NEW
CASE-INCLUDED BRAND NEW
WINDOWS 10 HOME PRE-LOADED - PRE-LOADED
DVD DRIVE - INCLUDED PROMISE TO YOU:All motherboards are tested and verified working, All hardware is sent out clean and with processors already installed to protect the pins. Also the front I/O is included with mother board. Included. all you need to do is install in case and load your OS. Works with Windows 10 perfectly. We offer a full installation of mother board inside an "ATX" case. email us if you would like us to install mother board. We will give you price information. We also offer full OS installation. All of our sold hardware, serial numbers are recorded for security.
GA-EP45-UD3L (rev. 1.1)
  • Revolution energy saving design with DES Advanced featuring hardware based Dynamic 4-Gear switching
  • Supports 45nm Intel Core 2 multi-core processors with FSB 1600 MHz
  • Dual channel DDR2 1366+ for remarkable system performance
  • Ultimate graphics performance with PCI-E x16 interface
  • Features high speed Gigabit Ethernet connection
  • Patented DualBIOS with dual hardware BIOS protection
  • Home theater quality 8-channel High Definition Audio
  • Meet European Union ErP(Energy-related Products) requirement

The GA-EP45-UD3L introduces revolutionary GIGABYTE Ultra Durable 3 technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the Intel P45 chipset the GA-EP45-UD3L delivers a record-setting 1600MHz FSB for the latest Intel® Core 2™ multi-core processors, and supports dual channel DDR2 memory at speeds of up to 1366MHz and even higher. Additionally, the GA-EP45-UD3L incorporates GIGABYTE DES Advanced technology for industry leading energy saving and enhanced system efficiency.
GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.
  • Support for an Intel Core™ 2 Extreme processor/ Intel Core™ 2 Quad processor/Intel Core™ 2 Duo processor/Intel Pentium Dual-Core processor/Intel Celeron processor in the LGA 775 package (Refer to CPU support list for more information)
  • L2 cache varies with CPU
    • Front Side Bus
    2. North Bridge: Intel P45 Express Chipset
    3. South Bridge: Intel ICH10
    Memory
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR2 1366+*/1066/800/667 MHz memory modules
    * Refer to Memory Support List for more information.Audio
    1. Realtek ALC888 codec
    2. High Definition Audio
    3. Support for S/PDIF In/Out
    4. Support for CD In
    LAN
    1. 1 x Realtek 8111C chips (10/100/1000 Mbit)
    Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
    2. 4 x PCI Express x1 slot
    3. 2 x PCI slots
    Storage InterfaceSouth Bridge:
    1. 6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
    GIGABYTE SATA2 (JMicron 368) chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    USB
    1. Integrated in the South Bridge
    2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x parallel port header
    16. 1 x serial port header
    17. 1 x power LED header
    18. 1 x chassis intrusion header
    Back Panel Connectors
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x optical S/PDIF Out connector
    4. 1 x coaxial S/PDIF Out connector
    5. 8 x USB 2.0/1.1 ports
    6. 1 x RJ-45 ports
    7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
    I/O Controller
    1. iTE IT8718 chip
    H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU overheating warning
    4. CPU/System fan speed control
    BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune 6
    8. Support for Dynamic Energy Saver Advanced
    9. Support for Time Repair
    10. Support for Q-Share

    herit; font-variant-east-asian:inherit; font-weight:700; font-stretch:inherit; font-family:Arial, 微軟正黑體, "Microsoft JhengHei", 微軟雅黑體, "Microsoft YaHei", SimHei, メイリオ, Meiryo, "ヒラギノ角ゴ Pro W3", "Hiragino Kaku Gothic Pro", 新細明體, Verdana, Helvetica, sans-serif; font-size:17.4px; margin:0px; padding:13px 7px; vertical-align:middle; display:table-cell; width:260.688px; color:rgb(67, 67, 67); letter-spacing:normal; orphans:2; text-align:left; text-indent:0px; text-transform:none; white-space:normal; word-spacing:0px; background-color:rgb(255, 255, 255); text-decoration-style:initial; style="box-sizing:border-box; border:0px; font-style:inherit; font-variant:inherit; font-weight:inherit; font-stretch:inherit; font-family:inherit; font-size:17.4px; margin:21px auto; padding:0px 0px 0px 40px; vertical-align:baseline; list-style:decimal;">
  • Realtek ALC888 codec
  • High Definition Audio
  • Support for S/PDIF In/Out
  • Support for CD In
    • LAN
    1. 1 x Realtek 8111C chips (10/100/1000 Mbit)
    Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
    2. 4 x PCI Express x1 slot
    3. 2 x PCI slots
    Storage InterfaceSouth Bridge:
    1. 6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
    GIGABYTE SATA2 (JMicron 368) chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    USB
    1. Integrated in the South Bridge
    2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x parallel port header
    16. 1 x serial port header
    17. 1 x power LED header
    18. 1 x chassis intrusion header
    Back Panel Connectors
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x optical S/PDIF Out connector
    4. 1 x coaxial S/PDIF Out connector
    5. 8 x USB 2.0/1.1 ports
    6. 1 x RJ-45 ports
    7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
    I/O Controller
    1. iTE IT8718 chip
    H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU overheating warning
    4. CPU/System fan speed control
    BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune 6
    8. Support for Dynamic Energy Saver Advanced
    9. Support for Time Repair
    10. Support for Q-Share

    >I/O Controller
    1. iTE IT8718 chip
    H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU overheating warning
    4. CPU/System fan speed control
    BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune 6
    8. Support for Dynamic Energy Saver Advanced
    9. Support for Time Repair
    10. Support for Q-Share

    herit; font-variant-east-asian:inherit; font-weight:700; font-stretch:inherit; font-family:Arial, 微軟正黑體, "Microsoft JhengHei", 微軟雅黑體, "Microsoft YaHei", SimHei, メイリオ, Meiryo, "ヒラギノ角ゴ Pro W3", "Hiragino Kaku Gothic Pro", 新細明體, Verdana, Helvetica, sans-serif; font-size:17.4px; margin:0px; padding:13px 7px; vertical-align:middle; display:table-cell; width:260.688px; color:rgb(67, 67, 67); letter-spacing:normal; orphans:2; text-align:left; text-indent:0px; text-transform:none; white-space:normal; word-spacing:0px; background-color:rgb(255, 255, 255); text-decoration-style:initial; style="box-sizing:border-box; border:0px; font-style:inherit; font-variant:inherit; font-weight:inherit; font-stretch:inherit; font-family:inherit; font-size:17.4px; margin:21px auto; padding:0px 0px 0px 40px; vertical-align:baseline; list-style:decimal;">
  • Realtek ALC888 codec
  • High Definition Audio
  • Support for S/PDIF In/Out
  • Support for CD In
    • LAN
    1. 1 x Realtek 8111C chips (10/100/1000 Mbit)
    Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
    2. 4 x PCI Express x1 slot
    3. 2 x PCI slots
    Storage InterfaceSouth Bridge:
    1. 6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
    GIGABYTE SATA2 (JMicron 368) chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    USB
    1. Integrated in the South Bridge
    2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x parallel port header
    16. 1 x serial port header
    17. 1 x power LED header
    18. 1 x chassis intrusion header
    Back Panel Connectors
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x optical S/PDIF Out connector
    4. 1 x coaxial S/PDIF Out connector
    5. 8 x USB 2.0/1.1 ports
    6. 1 x RJ-45 ports
    7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
    I/O Controller
    1. iTE IT8718 chip
    H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU overheating warning
    4. CPU/System fan speed control
    BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune 6
    8. Support for Dynamic Energy Saver Advanced
    9. Support for Time Repair
    10. Support for Q-Share
