please make sure this item is the correct one your wanted before purshasing.

Motherboard Description:

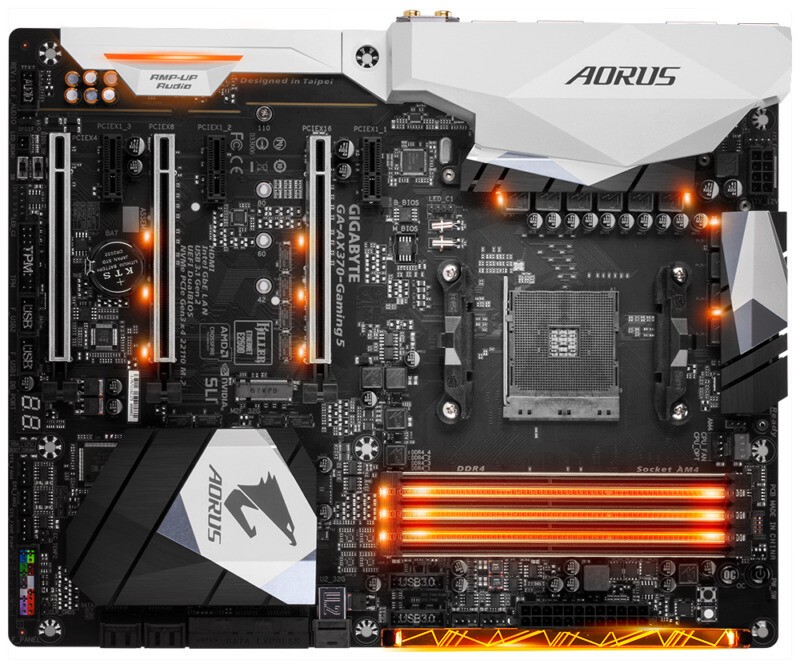

Gigabyte GA-AX370-Gaming 5 Motherboard AMD X370 Socket AM4 DDR4 M.2 ATX USB 3.1

Instructions:

Please DO NOT use fake memory, because the motherboard maybe can't support.

Please DO NOT use single-side memory, because some motherboards can't support.

Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.

Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package Included:

1 * motherboard

2 * sata cable

1 x I/O back panel

Product information

CPU

AM4 slot:

Support AMD Ryzen processor

Support AMD 7th generation A series / Athlon™ processor

Chipset

AMD X370

RAM

4 DDR4 DIMM slots, up to 64 GB

* Due to the limitation of the Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual memory capacity displayed will be less than the actual installed memory capacity.

Support dual channel memory technology

Support DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz

* Support for DDR4 2667 MHz or above will depend on the CPU.

Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Support Extreme Memory Profile (XMP) memory

Display function

Built-in processor with display function:

1 HDMI interface, which can support a resolution up to 4096x2160@24 Hz

*Support HDMI 1.4 version.

Supports maximum shared display memory up to 2 GB

* Whether this specification is supported depends on the CPU.

Sound effect

Built-in 2 Realtek® ALC1220 chips

Support Sound Blaster X-Fi MB5

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Built-in 1 Intel® GbE network chip (10/100/1000 Mbit) (LAN1)

Built-in 1 Rivet Networks Killer™ E2500 network chip (10/100/1000 Mbit) (LAN2)

* The built-in network does not support the line grouping function (Teaming)

Expansion slot

1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)

* In order to maximize the performance of the graphics card, when installing a graphics card, be sure to install it in the PCIEX16 slot.

* Whether this specification is supported depends on the CPU.

1 PCI Express x16 slot, supporting x8 operating specifications (PCIEX8)

* Since the PCIEX8 slot shares bandwidth with the PCIEX16 slot, when a graphics card is installed in the PCIEX8 slot, the PCIEX16 slot runs at up to x8 bandwidth.

* Whether this specification is supported depends on the CPU.

(PCIEX16 slot supports PCI Express 3.0)

1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)

* Since the PCIEX4 slot shares bandwidth with all PCI Express x1 slots, when all PCI Express x1 slots are not equipped with expansion cards, the PCIEX4 slot runs at up to x4 bandwidth.

3 PCI Express x1 slots

* Since all PCI Express x1 slots share bandwidth with the PCIEX4 slot, when the PCIEX1_1 slot is installed with an expansion card, the PCIEX4/PCIEX1_2/PCIEX1_3 slot runs at up to x1 mode; when the PCIEX1_2 or PCIEX1_3 slot is installed with an expansion card, The PCIEX4 slot runs at up to x2 bandwidth.

(PCIEX4 and all PCI Express x1 slots support PCI Express 2.0)

Multiple display technology

Supports NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technology

* Whether this specification is supported depends on the CPU.

Support AMD Quad-GPU CrossFire™ and 3-Way AMD CrossFire™ technology

* Whether this specification is supported depends on the CPU.

Storage device interface

1 x M.2 socket (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD)

* Whether this specification is supported depends on the CPU

1 U.2 socket

* When the device is installed in the U.2 socket, the M.2 socket cannot be used.

2 SATA Express sockets

8 SATA 3.0 ports

Support RAID 0, RAID 1 and RAID 10 functions

USB

Built in chipset: +ASMedia® USB 3.1 Gen 2 controller:

1 USB Type-C™ interface on the rear panel, supporting USB 3.1 Gen 2

1 USB 3.1 Gen 2 Type-A port (red) on the rear panel

Built in chipset:

2 USB 3.1 Gen 2 Type-A ports (red) on the rear panel

6 USB 3.1 Gen 1 ports (2 on the rear panel, 4 need to be connected from the USB socket on the motherboard via a cable)

4 USB 2.0 ports (need to be connected from the USB socket on the motherboard via a flat cable)

Built in processor:

4 USB 3.1 Gen 1 ports on the rear panel

Internal socket

1 x 24 PIN motherboard power socket

1 8 PIN CPU power socket

1 U.2 socket

1 M.2 Socket 3 socket

2 SATA Express sockets

8 SATA 3.0 ports

1 CPU fan socket

1 CPU water cooling fan socket

4 system fan headers

2 system fan/water cooling pump sockets

1 front side bus socket

1 front audio socket

1 S/PDIF output socket

2 USB 3.1 Gen 1 sockets

2 USB 2.0 sockets

1 security encryption module (TPM) socket

1 cooling fan strip/RGB LED strip extension cord socket Š

1 RGB(RGBW) LED strip extension cord socket

2 thermal thread pins

1 clear CMOS data jumper

1 power button

1 system reset button

1 clear CMOS data button

1 OC button

2 BIOS switches

Rear panel device connection socket

1 PS/2 keyboard/mouse interface

1 HDMI interface

1 USB Type-C™ interface, support USB 3.1 Gen 2

3 USB 3.1 Gen 2 Type-A ports (red)

6 USB 3.1 Gen 1 ports

2 RJ-45 network cable interfaces

1 S/PDIF optical fiber output socket

5 audio interfaces (central and subwoofer output, rear speaker output, audio input, audio output, microphone)

I/O controller

Built-in iTE® I/O control chip

BIOS

2 x 128 Mbit flash

Use authorized AMI UEFI BIOS

Support DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating system

Support Windows 10 64-bit

Support Windows 7 64-bit

*If you need to use Windows 7 64-bit system, you need to use AMD Summit Ridge & Bristol Ridge CPU

Form Factor

ATX,30.5cm x is the only online payment method we accept. Please make sure you have a valid/confirmed PayPal account prior offerding. And please make sure that your PayPal registed address is the same with your registed address.
