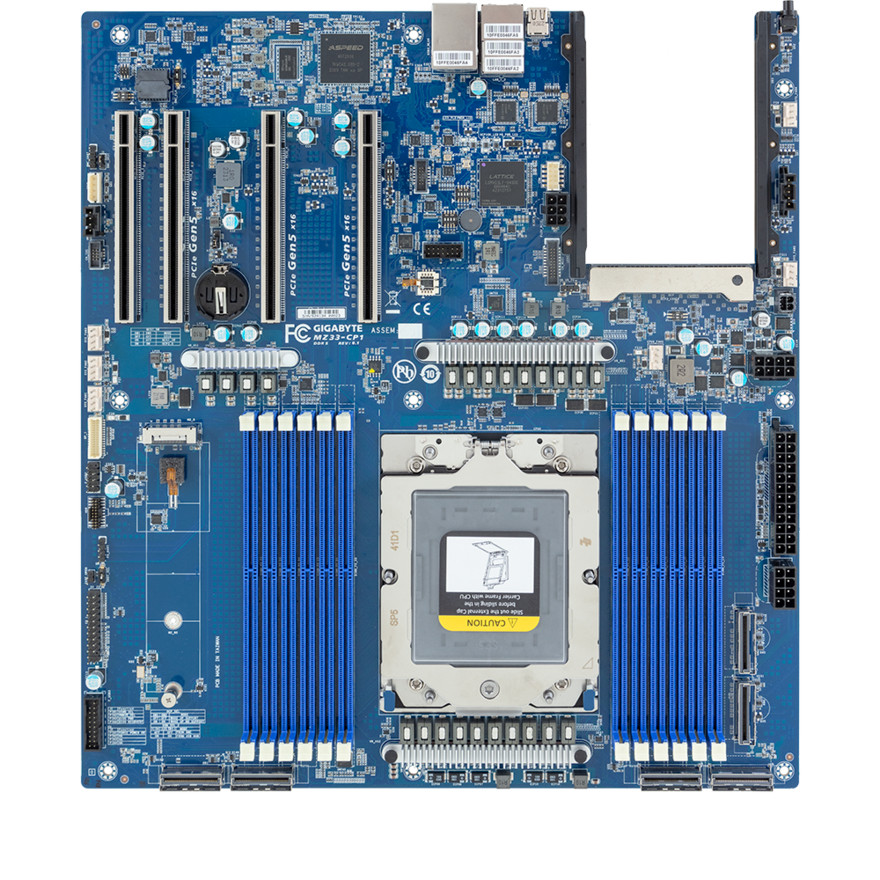

Gigabyte MZ33-CP1 sp5 AMD EPYC 9005/9004 support 9965/9654/9754 up to 500w

Product Description

Form Factor (WxD, mm)

E-ATX
304.8 x 330.2

Processor Supported

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Single processor, cTDP up to 500W

Socket

1 x LGA 6096
Socket SP5

Chipset Description

System on Chip

Memory Type

12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture

AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s

Integrated Network

2 x 1Gb/s LAN (2 x Intel®I210-AT)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated Video Controller

Integrated in Aspeed®AST2600
- 1 x Mini-DP

Integrated Audio Controller

N/A

Storage Interface

MCIO:
4 x MCIO 8i for 8 x Gen5 NVMe
2 x MCIO 8i for 4 x Gen4 NVMe or 16 x SATA

M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4

Support RAID Function

N/A

PCIe Expansion Slots

Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen4 x16)

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

4 x MCIO 8i (Gen5 x8)[1]
2 x MCIO 8i (Gen4 x8 or SATA)[2]

[1]Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.

[2]The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x 4-pin 12V standby power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 x2 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

Rear I/O Connectors

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED

Security Modules

1 x TPM header with SPI interface
-OptionalTPM2.0 kit:CTM012

OS Driver Supported

Please refer to OS compatibility table in support page

Server Management

Aspeed®AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

·HTML5 KVM

·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

·Sensor Reading History Data

·FRU Information

·SEL Log in Linear Storage / Circular Storage Policy

·Hardware Inventory

·Fan Profile

·System Firewall

·Power Consumption

·Power Control

·Advanced power capping

·LDAP / AD / RADIUS Support

·Backup & Restore Configuration

·Remote BIOS/BMC/CPLD Update

·Event Log Filter

·User Management

·Media Redirection Settings

·PAM Order Settings

·SSL Settings

·SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x 4-pin 12V standby power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MZ33-CP1
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ33-CP1
10 x I/O shields

Carton dimensions: 600 x 473 x 517 mm

Ordering Information

Retail: 9MZ33CP1MR-000-3*
Bulk: 9MZ33CP1NR-000-3*

Part Numbers:

- I/O shield: 12AIO-MS33CP-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R

Optional parts:

- MCIO 8i to 2 x MCIO 4i cable (550mm):
