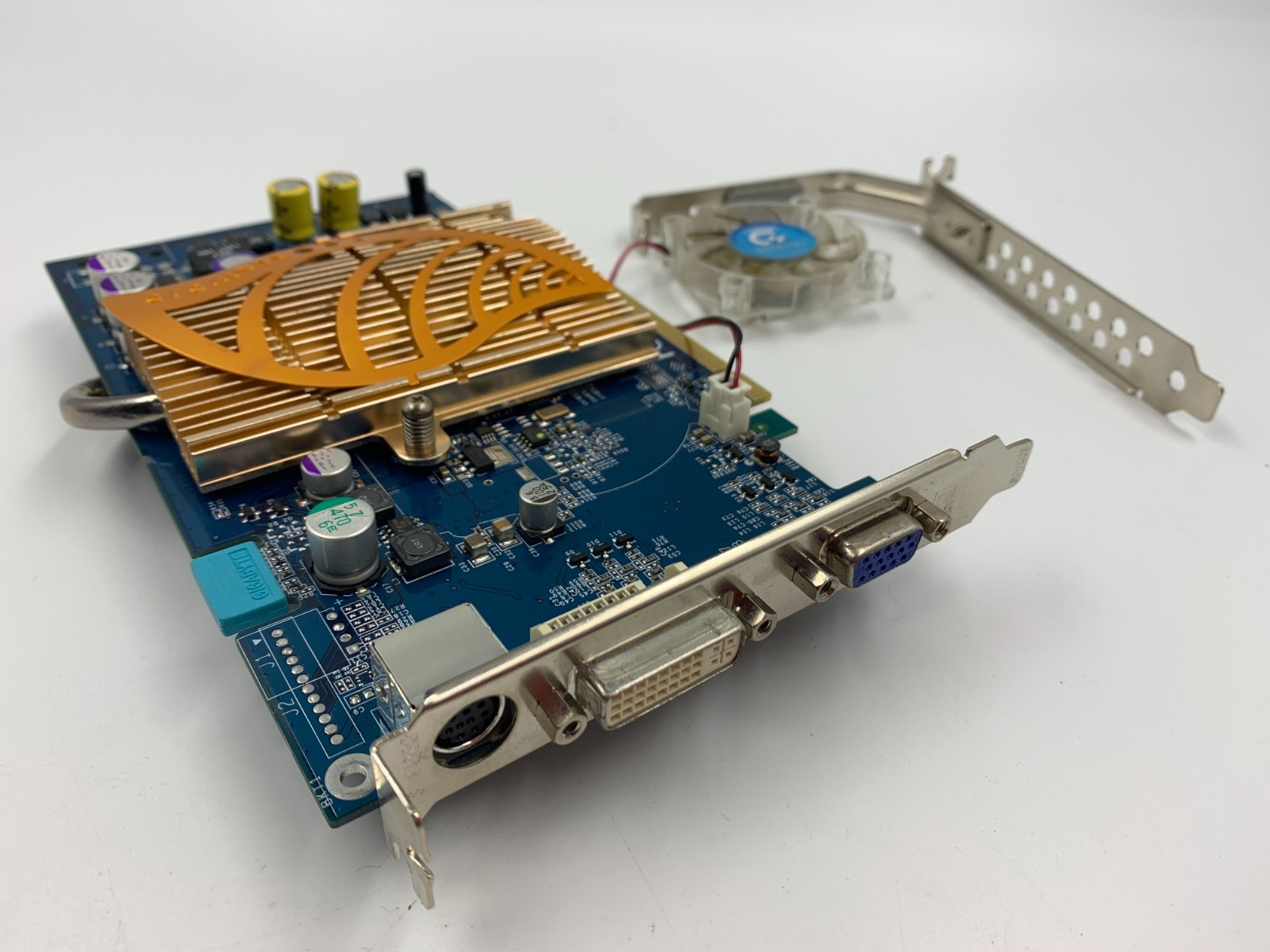

A Rare Gigabyte Technology NVIDIA GeForce 6600 GT ‘Turbo Force Edition’ Graphics Card (128MB, PCIe)Manufacturer: Gigabyte Technology Co., Ltd.
Model: GV-NX66T128VP
Chipset: NVIDIA GeForce 6600 GT (NV43 Architecture)
Date of Manufacture: August 2005 (Serial No: SN0534030103)
Origin: Taiwan (Certified for the Australian Market, ACMA N14180)DescriptionAn exceptional and highly sought-after example of mid-2000s consumer hardware engineering, this Gigabyte GV-NX66T128VP represents the pinnacle of premium, silent-oriented mainstream gaming infrastructure from the Windows XP era.Built upon NVIDIA’s breakthrough NV43 architecture, this unit features 128MB of high-speed GDDR3 memory on a 128-bit bus, natively supporting Microsoft DirectX 9.0c (Shader Model 3.0) and OpenGL 1.5. This architecture was defining for its time, powering classic titles such as Half-Life 2, Doom 3, and Battlefield 2.The defining characteristic of this specific iteration is Gigabyte’s proprietary "Silent-Pipe" passive thermal design. Eschewing the failure-prone and noisy small-diameter active fans of the era, the card utilizes a sophisticated dual-block cooling system. A high-efficiency copper heat pipe bridges the primary GPU core block on the front face to a massive, beautifully sculpted gold-anodized aluminum fin array wrapping around to the rear of the PCB. This is paired with an independent secondary green-anodized memory cooling block.Importantly, this lot retains its rare, original Everflow-manufactured transparent auxiliary exhaust fan bracket (Model R125010DH, stamped JUL 30 2005). Designed to mount in an adjacent expansion slot, this 12V, 0.25A blower safely evacuates residual radiant heat from the passive chassis without inducing localized vibration onto the main circuit board.Interface and ConnectivityThe board is designed for early-generation PCI Express x16 slots, a standard that successfully succeeded the legacy AGP format. The rear retaining bracket offers a versatile triple-output display interface array:
- 1x 15-pin VGA (D-Sub) analog output
- 1x DVI-I digital/analog output
- 1x 9-pin S-Video / TV-Out multi-interface port
