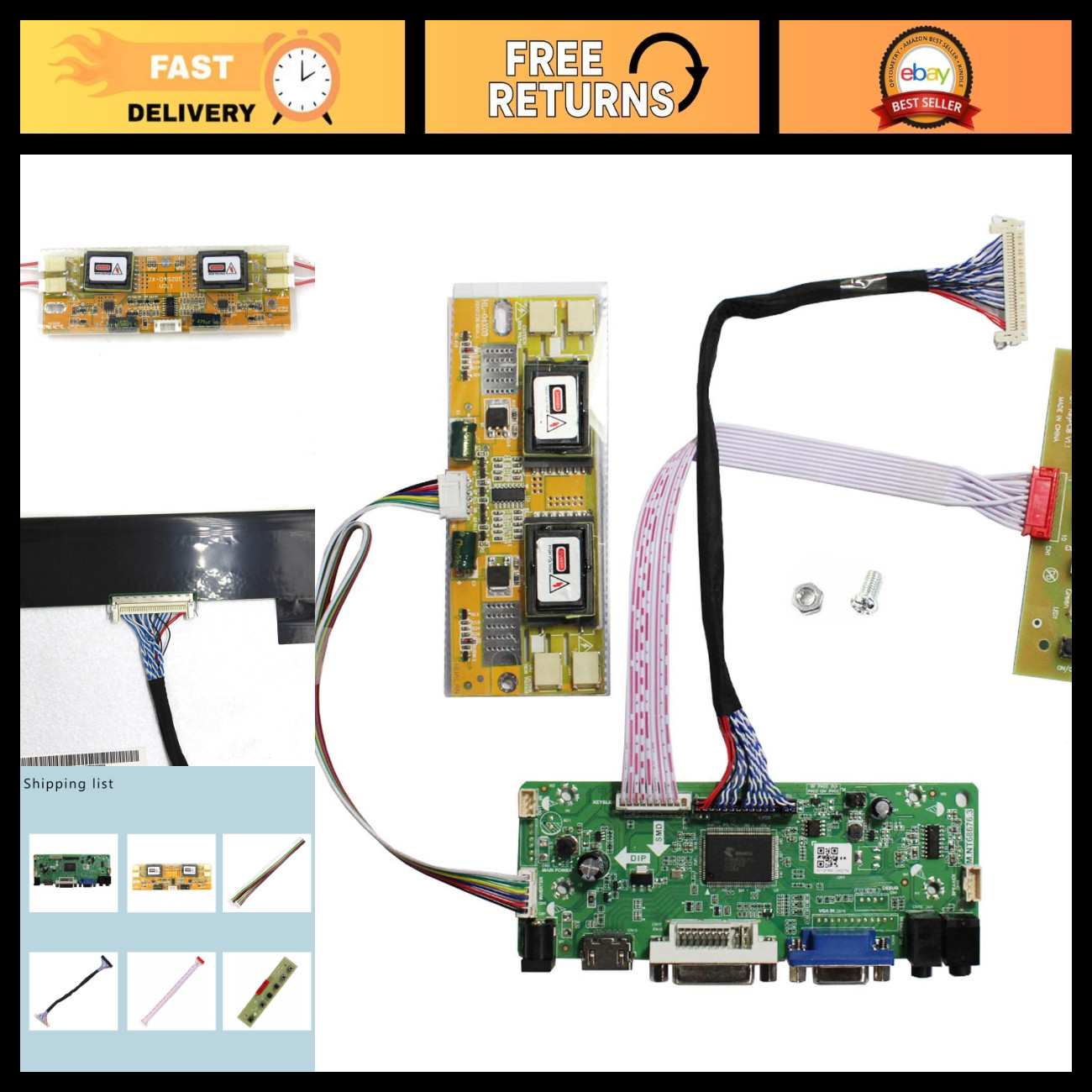

LCD Driver Board for 1280x1024 Displays Enhance your display experience with our versatile LCD Driver Board, designed specifically for 30Pin 5V LVDS LCD screens. This board is perfect for a variety of applications, providing seamless connectivity and high-quality output. Key Features: - Compatibility: Works with a wide range of screen models including:
- 17" Models: LTM170EU, LTM170EH, LTM170E5, LTM170E6, HSD170ME13, M170EG01, M170EG02, M170EN01, M170EN04, M170EN05, M170EN06, LM170E03
- 19" Models: LM190E02, LM190E03, LM190E08, G190EG01, M190EG02, M190EN01, HSD190ME11, HSD190ME12, HSD190ME13, LTM190EX
- Video Input: Supports VGA and DVI inputs for versatile connectivity.
- Audio Output: Features a speaker connector (8ohm 2W) for audio integration.
- Plug and Play: Easy setup—simply connect the cables as shown in the provided images and power on to activate the display.
- Power Requirements: Requires a 12V DC power supply with a minimum of 3A; port size is 5.5x2.1mm (power adapter not included).
Self-Diagnostic Functionality: The board includes a self-check feature to ensure proper functionality: - Upon powering on, the LED indicator will show green/red to confirm normal operation.
- If the screen displays "no signal," check connections or try different cables/resources.
- If a white/black screen appears, verify screen connection, resolution settings, and
 |
|
