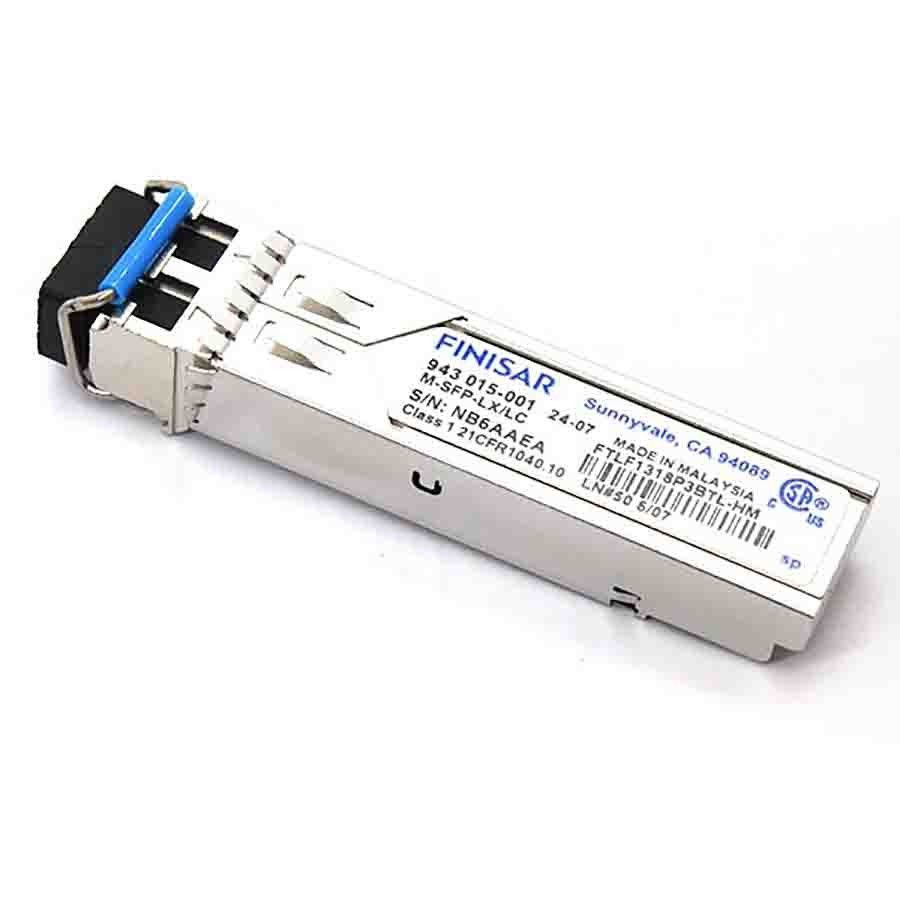

HIRSCHMANN M-SFP-LX LC FINISAR FTLF1318P3BTL-HM 943 015‑001 ORIGINAL OPTICAL TRANSCEIVER MODULES
FINISARFTLF1318P3BTL-HM / HIRSCHMANN M-SFP-LX LC
Product Overview
This is an industrial-grade 1.25G single-mode SFPtransceiver, customized by Finisar (now Coherent) forHirschmann (Belden). It is fully optimized for Hirschmann industrial Ethernetswitches, designed for long-distance fiber transmission in harsh industrialenvironments.
Model CrossReference
·Finisar Part No.: FTLF1318P3BTL-HM (HM = Hirschmanncustomized version)
·Hirschmann Part No.: M-SFP-LX/LC
·Hirschmann Order Code: 943 015-001
·Form Factor: SFP (Hot-pluggable, compliant with SFP MSAstandard)
Key Specifications
Item
Parameter
Data Rate
1.25 Gbps (1000Base-LX)
Transmitter Wavelength
1310 nm (FP Laser)
Fiber Type
Single-mode Fiber (SMF, 9/125 μm)
Maximum Transmission Distance
10 km
Optical Interface
Duplex LC
Operating Temperature
-40 ℃ ~ +85 ℃ (Industrial Wide Temperature)
Supply Voltage
3.3 V
Typical Power Consumption
< 600 mW
Digital Diagnostics
Support DDM / DOM
Laser Safety
Class 1 Laser Product
Compliance
RoHS, Lead-free
Link Budget
10.5 dB
Main Features
1. Dedicated customized version forHirschmann industrial switches, excellent compatibility.
2. Wide temperature range, resistant tovibration, dust and strong electromagnetic interference.
3. Dual protocol support: 1000Base-LXEthernet & 1G Fibre Channel.
4. Metal housing for good heat dissipation,low EMI and anti-static performance.
5. Hot-pluggable design, easy for on-siteinstallation and maintenance.
TypicalApplications
·Industrial automation, rail transit, power & energycommunication systems
·Building automation, long-distance security fiber links
·Gigabit fiber backbone connections for Hirschmannindustrial switches
CompatibilityNotes
1. Compliant with SFP MSA standard, works onmost standard SFP ports. Please verify compatibility when used onnon-Hirschmann devices.
2. Do not interchange with M-SFP-SX/LC(multi-mode, 550m reach), they are not mutually compatible.
