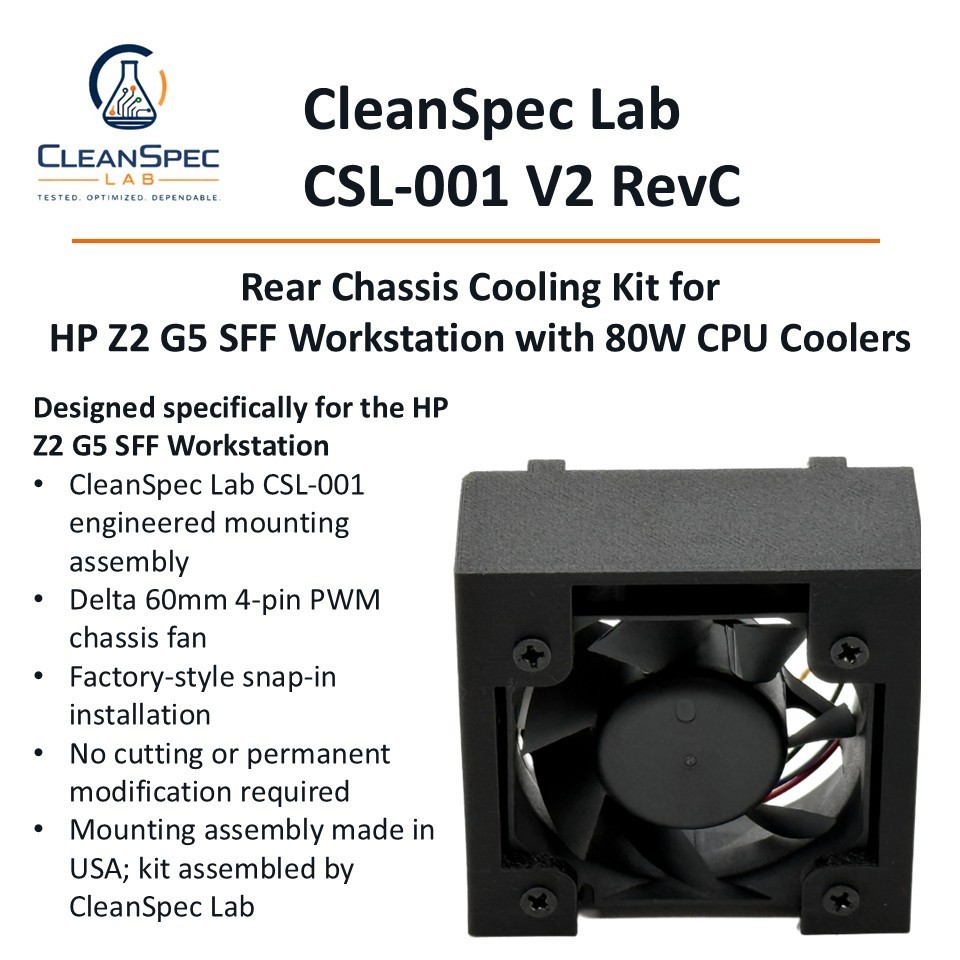

CleanSpec Lab CSL-001 V2 RevC Rear Chassis Cooling Kit for HP Z2 G5 SFF Workstations

Restore or add rear chassis airflow to compatible HP Z2 G5 SFF Workstations using the CleanSpec Lab CSL-001 V2 RevC Rear Chassis Cooling Kit.

The CSL-001 was developed after thermal testing identified the importance of rear chassis airflow in higher-performance HP Z2 G5 SFF configurations. Rather than simply creating a 3D-printed fan bracket, CleanSpec Lab developed the CSL-001 through an iterative process of design, prototyping, physical fitment testing, and sustained system stress testing using real HP Z2 G5 SFF workstation hardware.

CSL-001 V2 uses a reduced-depth mounting assembly specifically developed to provide clearance for the factory 80W CPU cooler configuration.

Each kit is fully assembled and ready for installation with a high-quality Delta 60mm 4-pin PWM fan pre-installed.

IMPORTANT — VERIFY YOUR CPU COOLER BEFORE ORDERING

CSL-001 V2 RevC is designed and validated for HP Z2 G5 SFF systems equipped with the 80W CPU cooler.

80W CPU Cooler

HP Spare P/N: M10357-001
Cooler P/N: 810281-002

The V2 reduced-depth design was developed specifically to provide the additional rear-chassis clearance required by this cooler configuration.

Have a 65W or 125W CPU Cooler?

CSL-001 V2 will physically fit systems equipped with the 65W and 125W CPU coolers; however, CleanSpec Lab has not validated V2 as the cooling solution for those configurations.

For systems equipped with either of the following coolers, please purchase CSL-001 V1 RevC, which is the CleanSpec Lab validated configuration:

65W CPU Cooler
HP Spare P/N: M10355-001
Cooler P/N: 810282-002

125W CPU Cooler
HP Spare P/N: M10358-001
Cooler P/N: L97045-001

80W cooler → CSL-001 V2 RevC
65W or 125W cooler → CSL-001 V1 RevC

Please compare your system with the compatibility photographs and part numbers shown in this listing before ordering.

Features

• Designed specifically for the HP Z2 G5 SFF Workstation
• CleanSpec Lab engineered rear fan mounting assembly
• High-quality Delta 60mm 4-pin PWM chassis fan
• Factory-style snap-in installation
• Uses the workstation's rear chassis fan connection
• No cutting or permanent chassis modification required
• Mounting assembly manufactured by CleanSpec Lab
• Kit assembled and inspected in the USA

Engineered & Validated by CleanSpec Lab

CSL-001 was developed as a workstation cooling solution, not simply as a mounting adapter.

Development included iterative CAD design and prototyping, installation and clearance verification on actual HP Z2 G5 SFF workstations, evaluation of multiple factory CPU cooling configurations, and sustained system stress testing using OCCT.

Production configurations were evaluated under sustained workstation loads to verify physical fitment, fan operation, system stability, and thermal behavior.

The current RevC design incorporates refinements made through continued production, testing, and real-world use.

CleanSpec Lab documents its testing methods, workstation configuration practices, and other engineering topics through our Technical Brief series.

For additional test data, Technical Briefs, product information, and CleanSpec Lab engineering documentation, visit the CleanSpec Lab website.

Installation

CSL-001 uses the factory rear chassis mounting location and requires no cutting, drilling, or permanent modification to the workstation chassis.

Install the assembled CSL-001 into the rear chassis location and connect the included Delta PWM fan to the appropriate motherboard chassis fan connection.

The kit can be removed later without permanently altering the workstation.

What's Included

• CleanSpec Lab CSL-001 V2 RevC Rear Chassis Cooling Assembly
• Pre-installed Delta 60mm 4-pin PWM fan
• Fan mounting hardware
• Fully assembled and ready for installation

Workstation, CPU cooler, graphics card, and other components shown in listing photographs are for demonstration purposes only and are not included.

Condition

Brand new.

Each CSL-001 kit is assembled and inspected by CleanSpec Lab prior to shipment.

The mounting assembly is produced using additive manufacturing (3D printing). Minor surface texture, layer lines, and other characteristics inherent to the manufacturing process may be visible. These cosmetic characteristics are normal and do not affect intended fit or function.

Important Information

• CSL-001 is designed and manufactured by CleanSpec Lab
• This is an aftermarket product and is not an HP OEM component
• HP and Z2 are trademarks of their respective owner and are used only to identify product compatibility
• Compatibility is limited to the configurations specifically identified in this listing
• 80W cooler: CSL-001 V2 RevC
• 65W or 125W cooler: CSL-001 V1 RevC

Why Choose CleanSpec Lab?

CleanSpec Lab products are developed using the same engineering-focused approach we apply to our refurbished workstation builds.

CSL-001 progressed from an identified cooling need through design, prototype development, physical fitment verification, revision, and sustained system validation on real HP workstation hardware.

The result is a purpose-built cooling kit designed around the actual Z2 G5 SFF platform rather than a generic fan adapter adapted to fit.

Tested. Optimized. Dependable.
