IBM ServeRAID LSI SAS3082E-R 44e8690 PCIe SAS RAID Card 8internal SATA SAS Ports For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

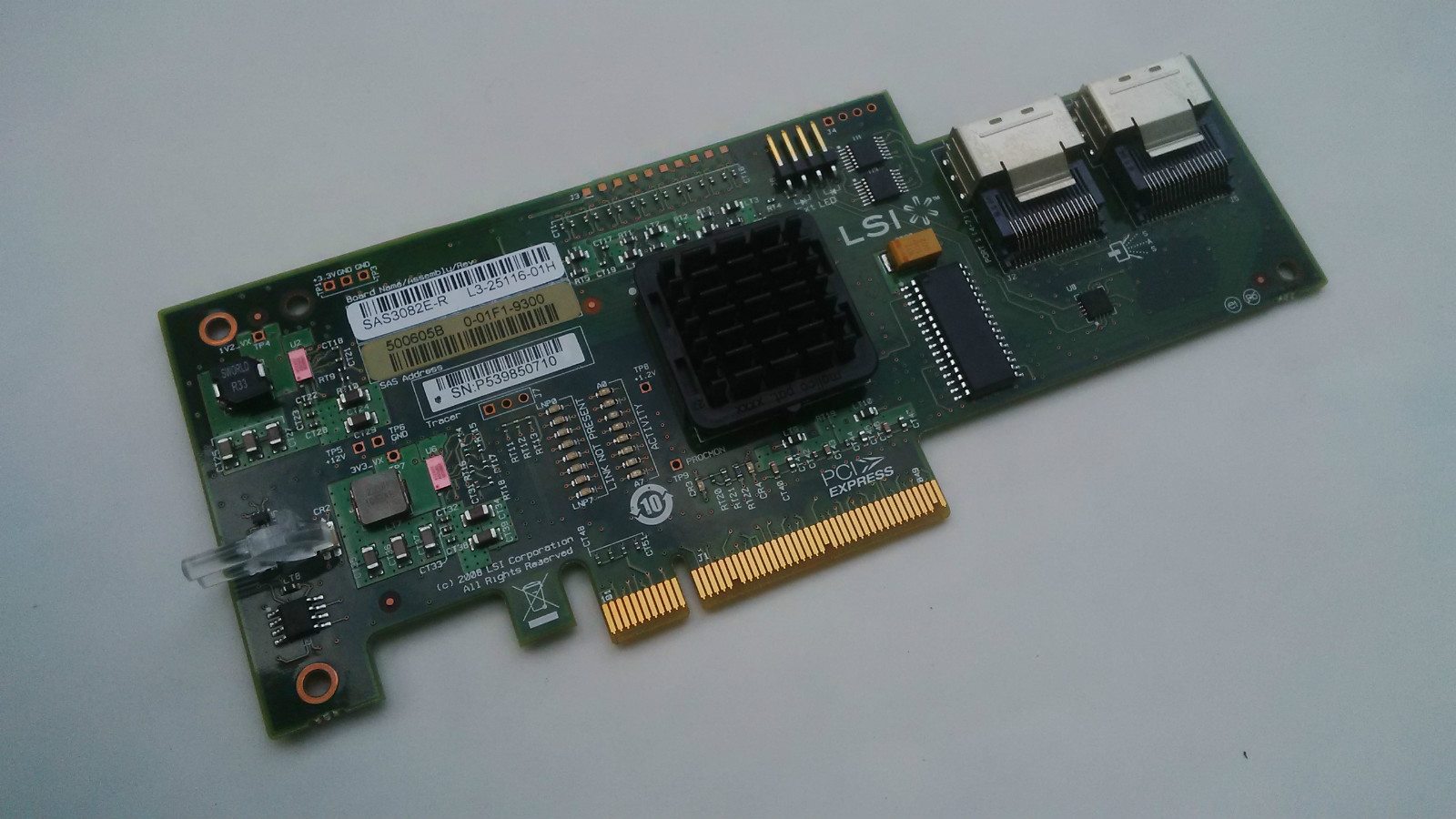

IBM ServeRAID LSI SAS3082E-R 44e8690 PCIe SAS RAID Card 8internal SATA SAS Ports
Price: CA $3.57
pulls from upgraded prior to sale servers
WE WILL SHIP TO ANY WHERE REGARDLESS OF WHAT AUTO SHIP SAYS
Description: The ServeRAID-BR10i controller PCI Express interface is compliant with the PCI Express Specification, revision 1.0a. The controller uses either a standard PCI or low-profile PCI bracket type. The controller SAS interface is compatible with the ANSI Serial Attached SCSI 1.0 specification and the Serial ATA 1.0a specification. The functionality of the ServeRAID-BR10i controller comes from the LSI1068E controller chip. The LSI1068E chip integrates eight high-performance SAS/SATA PHYs. The design of the controller makes it easy to add SAS interfaces to any computer, workstation, or server with a PCI Express bus. The controller provides a 2 Mb x 8-bit flash ROM for storing the BIOS and firmware. The controller provides up to 32 Kb x 8-bit NVSRAM for storing the nonvolatile RAID information when a system failure occurs. The controller provides a 128 Kb x 36-bit pipelined burst static random access memory (PBSRAM) device for storing SAS address port information, which enables connection to more than 128 devices.
Storage Controller
Controller interface type Serial ATA-300 / SAS
Data Transfer Rate 300 MBps
Storage Controller / Supported Device Type Disk array (RAID)
