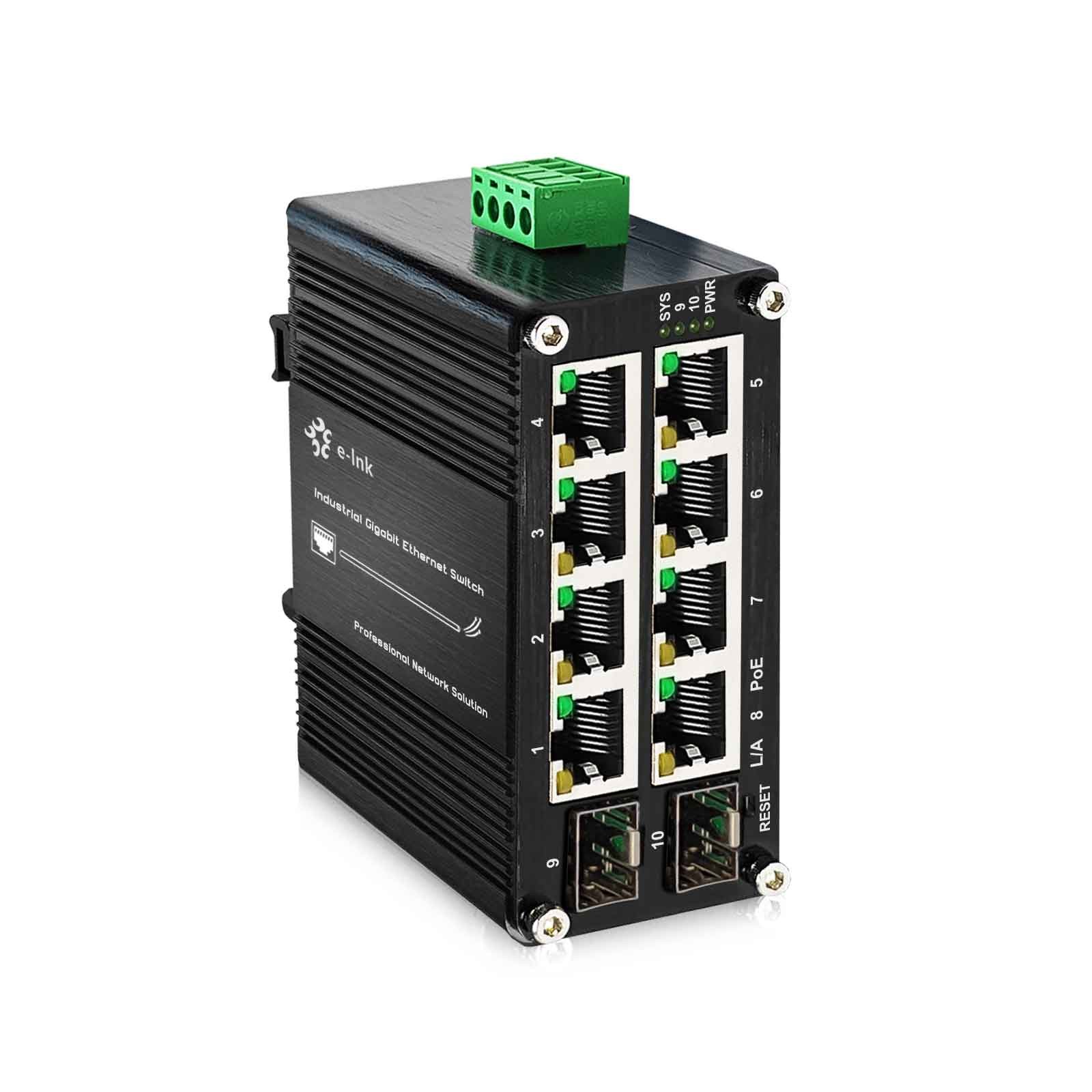

Industrial Managed Gigabit 8-Port 30W PoE+ Switch 2SFP Network ApplicationsE-link Managed Gigabit PoE Switch
managed industrial network PoE Switch, with 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable.
Key Features
- 8×10/100/1000Base-TX + 2×100/1000Base-X SFP
- 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
- Supports WEB Management
- Supports IEEE 802.3at PoE+ (30W per port)
- Supports 802.3x Flow Control
- Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
- Support IEEE 802.3D/W/S standard STP/RSTP protocol
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Redundant Power Inputs
- Supports DIN-Rail installation
- -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
The LNK-IMC208MGP-SFP represents a sophisticatedindustrial Gigabit PoE switchsolution engineered for demanding network environments requiring robust power and data connectivity. This advancedmanaged Gigabit PoE switchintegrates eight 10/100/1000Base-TX ports with two 100/1000Base-X SFP fiber slots, delivering comprehensive connectivity for both copper and fiber network infrastructures. Designed as a versatileprofessional Gigabit PoE switch, it provides IEEE 802.3at PoE+ functionality across all eight RJ-45 ports, enabling simultaneous power and data delivery to connected devices.
This high-performancehardened Gigabit PoE switchsupports flexible fiber connectivity through its dual SFP slots, compatible with both single-mode and multi-mode fiber optic cables for long-distance network extension. The ruggedmetal enclosure Gigabit PoE switchfeatures industrial-grade construction that ensures reliable operation in challenging environmental conditions, making it suitable for deployment in manufacturing facilities, transportation systems, and outdoor installations. The sophisticatedweb-managed Gigabit PoE switchincorporates comprehensive network management capabilities, allowing administrators to monitor power distribution, configure network parameters, and optimize performance through an intuitive web interface.
The reliablehigh-power Gigabit PoE switchdelivers up to 30W per port, supporting power-hungry devices such as PTZ cameras, wireless access points, and industrial equipment without requiring separate power supplies. Thiscompact Gigabit PoE switchis specifically designed for space-constrained installations, featuring DIN-rail mounting compatibility for seamless integration into control cabinets and industrial equipment racks. The advancedfiber-ready Gigabit PoE switchenables seamless network expansion between remote locations, bridging copper and fiber networks while maintaining full PoE functionality.
Engineered for maximum reliability, thisindustrial-grade Gigabit PoE switchundergoes rigorous testing to ensure stable operation across extended temperature ranges and demanding electrical conditions. The versatilehybrid connectivity Gigabit PoE switchprovides network designers with a flexible solution for integrating diverse network devices across distributed locations, making it an ideal choice for surveillance systems, industrial automation networks, and telecommunications infrastructure where both power delivery and network reliability are critical operational requirements.
Hybrid Network Connectivity
Eight 10/100/1000Base-TX copper ports and two 100/1000Base-X SFP fiber ports provide flexible network integration options.
Intelligent Port Configuration
RJ45 ports automatically negotiate speed, duplex mode, and cable type for optimal connection performance.
Application
Industrial Automation Networks
Deployed infactory control systemsandmanufacturing facilities, multiple sensors,motor controllers, andHMI panelswithSFP fiber connectivityandDIN-rail mounting.
Outdoor Security and Surveillance
Supportingextended temperature ranges, PTZ camerasandwireless APswithfiber uplinkforlong-distance surveillance networks.
Intelligent Transportation Systems
Utilizingredundant power inputs,traffic monitoringandvehicle detectioninITS infrastructurewithSTP/RSTP protocolsupport.
Why Choose Us
Web-Based Management System
Comprehensive web management interface enables remote configuration, monitoring, and control of network operations.
High-Power PoE+ Capability
IEEE 802.3at PoE+ standard delivers 30W per port to support power-demanding network devices.
Advanced Traffic Management
IEEE 802.3x flow control prevents data loss and maintains network stability during high traffic periods.
Multi-Standard Protocol Support
Full compliance with IEEE 802.3 series standards ensures reliable store-and-forward switching operation.
Network Redundancy Protocols
STP/RSTP support provides automatic network path redundancy and prevents loop conditions.
Technical Indexes
Ethernet
Standards:
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3af Power over Ethernet
IEEE802.3atPower over Ethernet
Forward & FilteringRate:
14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Backplane bandwidth
20Gbps
Packet Buffer Memory:
9216 bits
Processing Type:
Store-and-Forward
Max Packet Length:
9K Bytes Jumbo Frame
Address Table Size:
4KMAC Addresses
Interface
Connector:
8x RJ45
Optical Port:
2x 100/1000Base-XSFP
PoE (Power over Ethernet)
Standard:
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port:
RJ45
Power Pin Assignment
4/5(+), 7/8(-)Mode-B
PoE Budget:
Up to 240-watt PoE budget
Environmental
Operating Temperature:
-40°C to 80°C (-40°F to 176°F)
Storage Temperature:
-40°C to 85°C (-40°F to 185°F)
Relative Humidity:
5% to 95% non-condensing
MTBF
> 200,000 hrs
Electrical and Mechanical
Input Power:
48~57VDC,Redundant Power (4-pin Terminal Block)
Power Consumption:
5W Max.(PoE in Use<240W)
Protection:
Power Input Overload:
Automatic Resettable
Reverse Polarity:
Present
LED Indicators:
PWR:
Power Status
Ethernet (Per Port):
Link/Activity
PoE:
PoE Status
Fiber:
Gigabit SFP Port: F9~F10
Dimensions (WxDxH):
95x 70x 46mm
Weight:
300g
Casing:
AluminumCase
Mounting Options:
DIN-Rail mount
Software Features
Redundancy Protocols
Support STP/RSTP
Multicast Support
Support IGMP Snooping V1/V2/V3
VLAN
Support IEEE 802.1Q 4K VLAN
QOS
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance
Support port mirroring, Syslog, Ping
ManagementFunction
WEB
Security
Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
Ordering Information
Model
Description
LNK-IMC208MGP-SFP
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet PoE Switch
SFP Options
► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options
► Default DIN-Rail Bracket installed.
Power Options
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
