Features:
1.WiFi intelligent bridge function, Wireless switch wired, wired switch wireless, intelligent switch;
2.WiFi intelligent repeater mode, it supports WiFi hot spots scan automatically and WiFi hot spot memory function;
3.Support turn off the wifi hotspot function;
4.Support WEB remote firmware upgrade, can get the latest firmware free;
5.Support connecting about 20 pieces WiFi terminal at the same time
Hardware Specifications:
Interface:1 DC2.0 power hole; 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable;
Button:Reset button (long press 5 seconds)
Antenna: Built-in 2pcs Smart omnidirectional 2dbm Antennas
input voltage: DC5V-15V total input power: ≥5W
Packages:
1*VAP11G-300
1*English user manual
1*Retail box

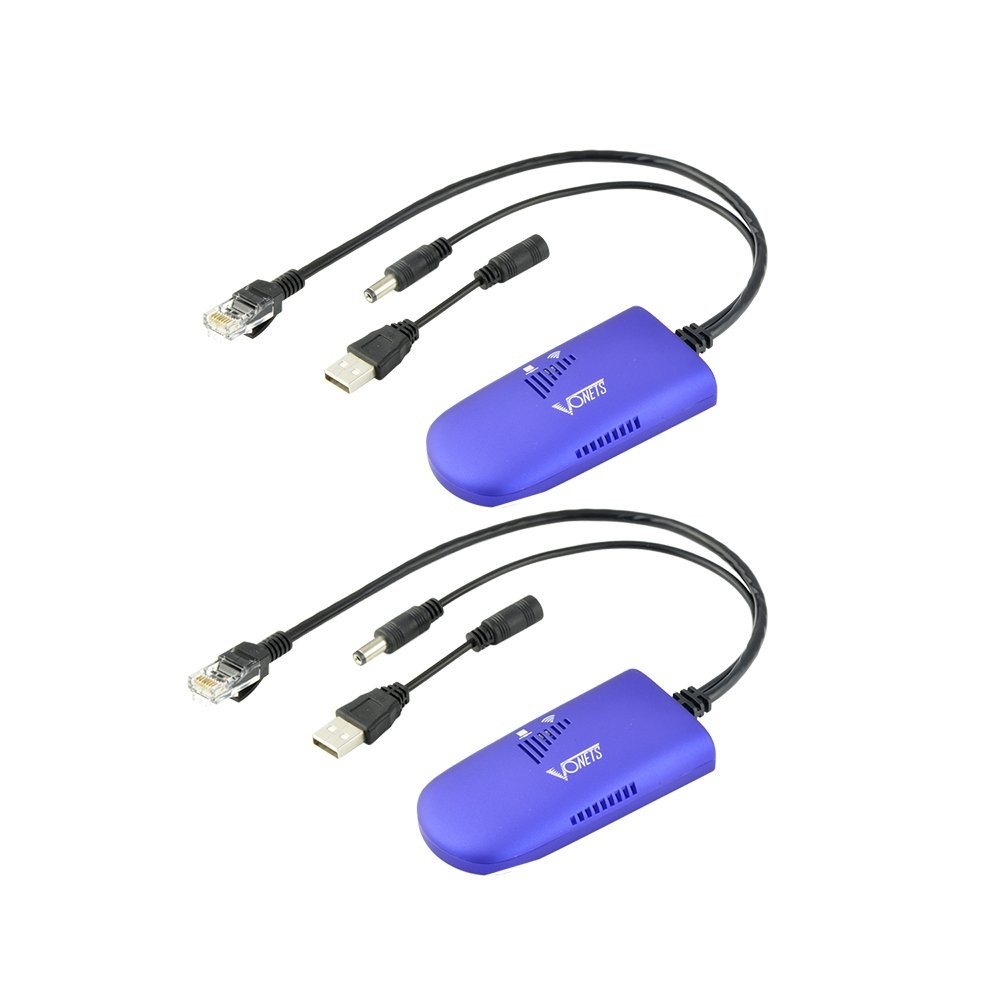

Industrial Mini 2.4GHz WiFi bridge/repeater (Small size); Can achieve WiFi to Wired or Wired to WiFi function（Ethernet to WiFi or WiFi to Ethernet Adapter) ; Support WiFi 802.11b/g/n, WiFi rate:300Mbps; One 10/100Mbps adaptive Ethernet ports(one 30cm cable with 1 male RJ45 port).
Support wide voltage DC5V-15V(Typical 5V/1A, ripple less than 100mV), the average power consumption is less than 2.5W; DC/USB optional powered Mode, one 30cm power cable with 1 male DC port and 1 male USB port, one female DC port of parallel connection.
Support three kinds of application methods: WiFi repeater, WiFi bridge ( IP layer or MAC layer transparent transmission), WiFi AP hotspots.WiFi smart bridge function, WiFi to wired, wired to WiFi, smart exchange.
Point-to-point transmission distance: maximum can be up to 80 meters when without obstacle and small data, then less than 50 meters when used for video transmission; WiFi Tx Power:14.5dBm/16dBm optional (Enhanced Power), 2 X 1.5dBi internal antennas; Good Partner for monitoring, electronic scales, DVR, IP camera, medical devices, IoT devices, Video transmission,industrial PLC,PS3,network Printer, robot, doll machine and more Network application.
Support SSA signal strength detection reporting function, motion detection function and memory hotspot(Up to 100) automatic matching connection function, realize to WiFi motion applications.Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC), make sure the lasting stability to ensure that the WiFi signal is not dropped.
