Intel AX210NGW WiFi6E Wireless Card M.2 BT5.4 Tri-band 802.11AX 5400Mbps Adapter

Product Description

Model: AX210NGW
Chipset: Intel AX210
WiFi Standard: WiFi 6E (IEEE 802.11ax), backward compatible with WiFi 6 / WiFi 5 / WiFi 4
Frequency Bands: Tri-Band 2.4GHz + 5GHz + 6GHz
Max Total Throughput: 5374Mbps (theoretical tri-band combined value)
Bluetooth Version: Bluetooth 5.4
Host Interface: M.2 NGFF 2230 Key A/E
Antenna Connector: IPEX4 (2 ports)
Security Encryption: WPA3, WPA2, WPA
Core Technologies: OFDMA, MU-MIMO
Supported OS: Windows 10 64-bit, Windows 11 64-bit, mainstream Linux

Product Features

1. WiFi 6E Tri-Band High-Speed Transmission

Compliant with IEEE 802.11ax WiFi 6E standard, three independent frequency bands adapt to different usage scenarios:

- 2.4GHz Band: Strong wall penetration and wide coverage, suitable for web browsing and smart device connection
- 5GHz Band: Balanced speed and range, perfect for 4K video streaming, online meetings and daily file download
- 6GHz Band: Interference-free exclusive spectrum, delivers minimum ping and clean signal for competitive gaming, VR experience and high-bitrate media playback

Advanced OFDMA and MU-MIMO technology optimizes network efficiency under multi-device connection, reducing latency and speed drops when multiple devices are online at the same time.

2. Bluetooth 5.4 Reliable Wireless Connectivity

Built-in Bluetooth 5.4 module provides faster pairing speed, wider signal range and lower audio latency compared to older Bluetooth versions. It supports simultaneous connection of multiple Bluetooth peripherals such as headphones, keyboards, mice, gamepads and speakers, fully meeting daily wireless connection needs.

3. Universal M.2 Interface Wide Compatibility

Standard M.2 NGFF 2230 Key A/E dual-notch design is compatible with most consumer laptops, mini PCs, all-in-one computers and embedded devices with M.2 wireless card slots. It can directly replace the original factory wireless card to complete the upgrade without additional adapters.

4. All-in-One Installation Accessory Kit

Package comes with dedicated screwdriver, plastic mounting retainer bracket and fixing screw. All necessary accessories for installation are provided in one pack, no extra purchase needed. Makes DIY internal upgrade easy and accessible for end users.

5. Stable Performance & Security Protection

Supports WPA3, WPA2 and WPA multi-layer security encryption protocols to comprehensively protect network security and prevent unauthorized access. The Intel chip solution features mature stability and excellent power & thermal control, suitable for long-hour continuous operation in office, entertainment and always-on scenarios.

Compatible With:

• It can used on almost NGFF M.2 card slot, such as for etc;
• Doesn't Compatible with IBM/Thinkpad/lenovo/hp laptop.

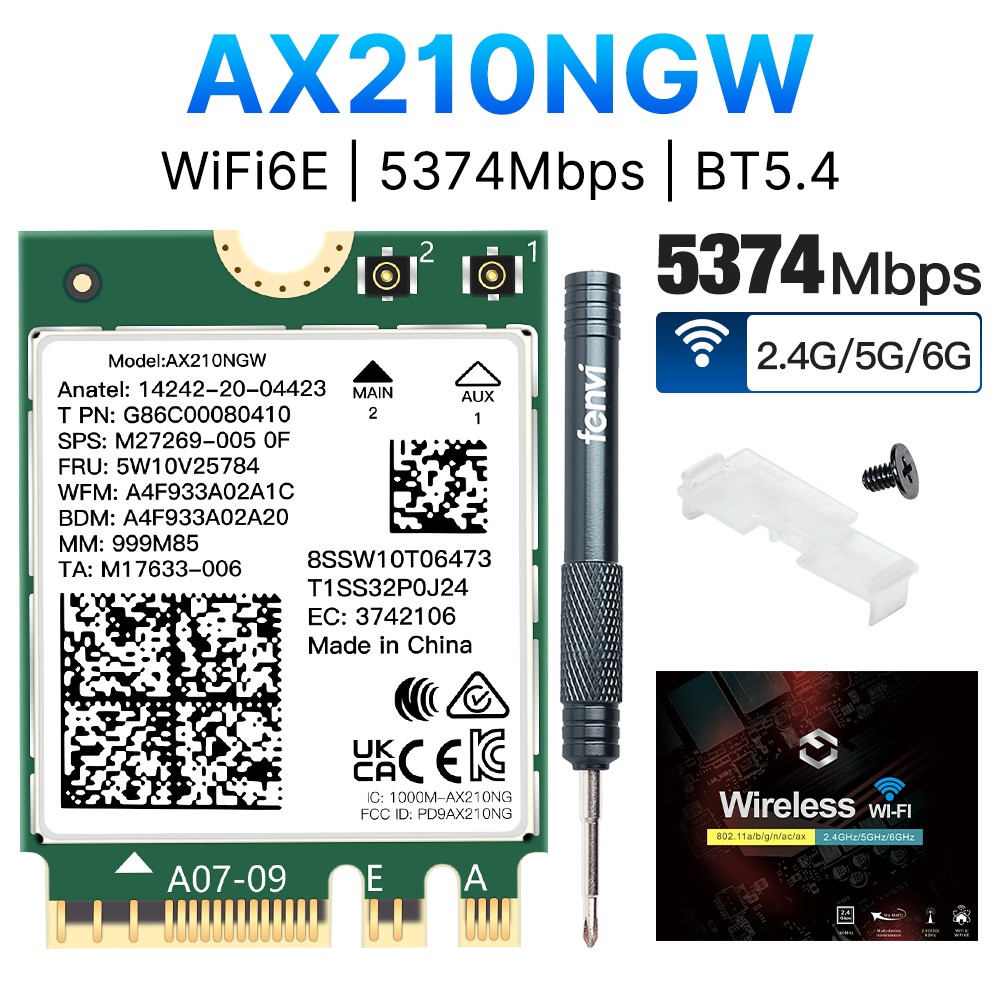

Package Include:

• 1 x AX210NGW NGFF M.2 wifi card
• 1 x Plastic clip
• 1 x Screwdriver
• 1 x Screw

Important Notes

1. 6GHz band function requires a WiFi 6E‑capable router.
2. Driver official installation is required to activate full WiFi and Bluetooth features.
3. Desktop PC requires separate M.2 to PCI‑E adapter (NOT included).
4. After installation, please disable the original onboard WiFi and Bluetooth in Device Manager or BIOS to avoid signal conflicts.
