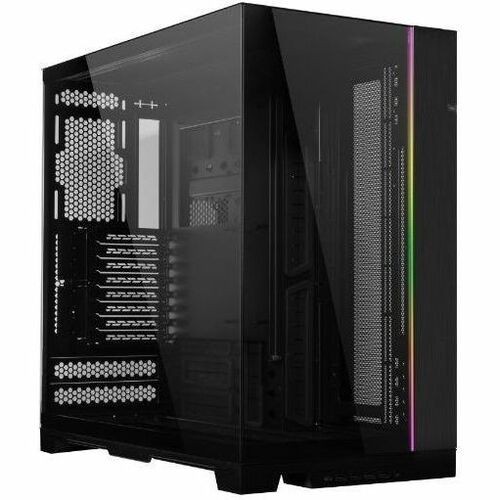

Lian Li O11 Dynamic EVO XL O11DEXLX Lian Li O11 Dynamic EVO XL O11DEXLX

This item is brand-new, factory sealed.

Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.

TWO COLOR / TWO MODES

Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.

The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to motherboard.

FINE MESH, EQUISITE TOUCH

Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.

The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis.

COMPLETE SEEMLESS VIEW

The O11D EVO XL's front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case's structure.BIG SIZE, GREAT COMPATIBILITY

Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There's also sufficient cooling with the support for 3 ? 420mm radiators.

FLEXIBLE CONFIGURATION

The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.

The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard

TOOL-LESS INSTALLATION

Easily secure the graphics card.

Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.

STRUGGLE-FREE FAN BRACKETS

Equipped with quick-release design, the fan brackets can be easily removed or installed.

Top Fan Bracket

Removable from the top

Bottom Fan Bracket

Removable from the main chamber

The side bracket can be oriented in two ways depending on how you set up the fan intake/exhaust or position.

Side Fan Bracket

Removable with a quick-latch

Comes with 2 seal plates to ensure no air pressure leak is created when mounting a 360mm radiator or 3 ? 120mm fan on the side. The plates can be adjusted and moved around based on the configuration.

Outer Scenario

Supports up to 117.2 mm thick radiator/ fan combo in the main chamber

Fans mount toward the front side

Fans mount toward the back side

RELOCATABLE I/O PORT

To satisfy any need, the modular I/O port includes 1 ? USB Type C and 4 ? USB Type A ports.

At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.

FRIENDLY STORAGE CAPACITY

Offers multiple easily accessible storage mounting locations that support up to 7 ? SSDs or 4 ? HDDs + 3 ? SSDs.

CABLE MANAGEMENT BAR

2.5" SSD ? 3

The removable cable management bar helps tidy up your system and give it a better aesthetic.

DRIVE CAGE

2.5" SSD? 4 or 3.5" HDD ? 4

Two swinging hot-swappable cages that can mount a 15mm thick 120mm fan on the side to cool the drives.

WITH WATER COOLING IN MIND

Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes .

CUSTOMIZABLE CABLE MANAGEMENT

The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.

SpecificationPower DescriptionNumber of Power Supplies Supported1Physical CharacteristicsProduct Material

• Tempered FactorFull-towerCooler TypeFan/Liquid CoolerProduct ColorBlackHeight20.9"Color FamilyBlackMaximum GPU Length18.11"Maximum PSU CPU Cooler Height6.57"WarrantyLimited Warranty1 YearInterfaces/PortsMicrophoneYesTotal Number of Audio Out Ports1USB Port Details
  • 1 x USB Type C
  • 4 x USB 3.0
  Front Audio InYesFront Audio OutYesFront USBYesTotal Number of USB Ports5Total Number of Audio In Ports1General InformationBrand NameLian LiMarketing Information Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts. TWO COLOR / TWO MODES Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view. The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to motherboard. FINE MESH, EQUISITE TOUCH Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL. The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis. COMPLETE SEEMLESS VIEW The O11D EVO XL's front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case's structure.BIG SIZE, GREAT COMPATIBILITY Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There's also sufficient cooling with the support for 3 ? 420mm radiators. FLEXIBLE CONFIGURATION The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination. The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard TOOL-LESS INSTALLATION Easily secure the graphics card. Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs. STRUGGLE-FREE FAN BRACKETS Equipped with quick-release design, the fan brackets can be easily removed or installed. Top Fan Bracket Removable from the top Bottom Fan Bracket Removable from the main chamber The side bracket can be oriented in two ways depending on how you set up the fan intake/exhaust or position. Side Fan Bracket Removable with a quick-latch Comes with 2 seal plates to ensure no air pressure leak is created when mounting a 360mm radiator or 3 ? 120mm fan on the side. The plates can be adjusted and moved around based on the configuration. Outer Scenario Supports up to 117.2 mm thick radiator/ fan combo in the main chamber Fans mount toward the front side Fans mount toward the back side RELOCATABLE I/O PORT To satisfy any need, the modular I/O port includes 1 ? USB Type C and 4 ? USB Type A ports. At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools. FRIENDLY STORAGE CAPACITY Offers multiple easily accessible storage mounting locations that support up to 7 ? SSDs or 4 ? HDDs + 3 ? SSDs. CABLE MANAGEMENT BAR 2.5" SSD ? 3 The removable cable management bar helps tidy up your system and give it a better aesthetic. DRIVE CAGE 2.5" SSD? 4 or 3.5" HDD ? 4 Two swinging hot-swappable cages that can mount a 15mm thick 120mm fan on the side to cool the drives. WITH WATER COOLING IN MIND Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes . CUSTOMIZABLE CABLE MANAGEMENT The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan. Product TypeGaming Computer CaseProduct NameO11 Dynamic EVO XLManufacturerLian Li Industrial Co., LtdManufacturer Part NumberO11DEXL-XProduct ModelO11DEXL-XProduct LineO11 Dynamic EVO XLTitleProduct TitleLian Li O11 Dynamic EVO XL (O11DEXLX)Technical InformationMotherboard Supported
  • Mini ITX
  Number of Fans Supported9Features
  • Dual Chamber
  • Cable Management
  • Reset Button
  • Dust Filter
  Fan Size Supported
