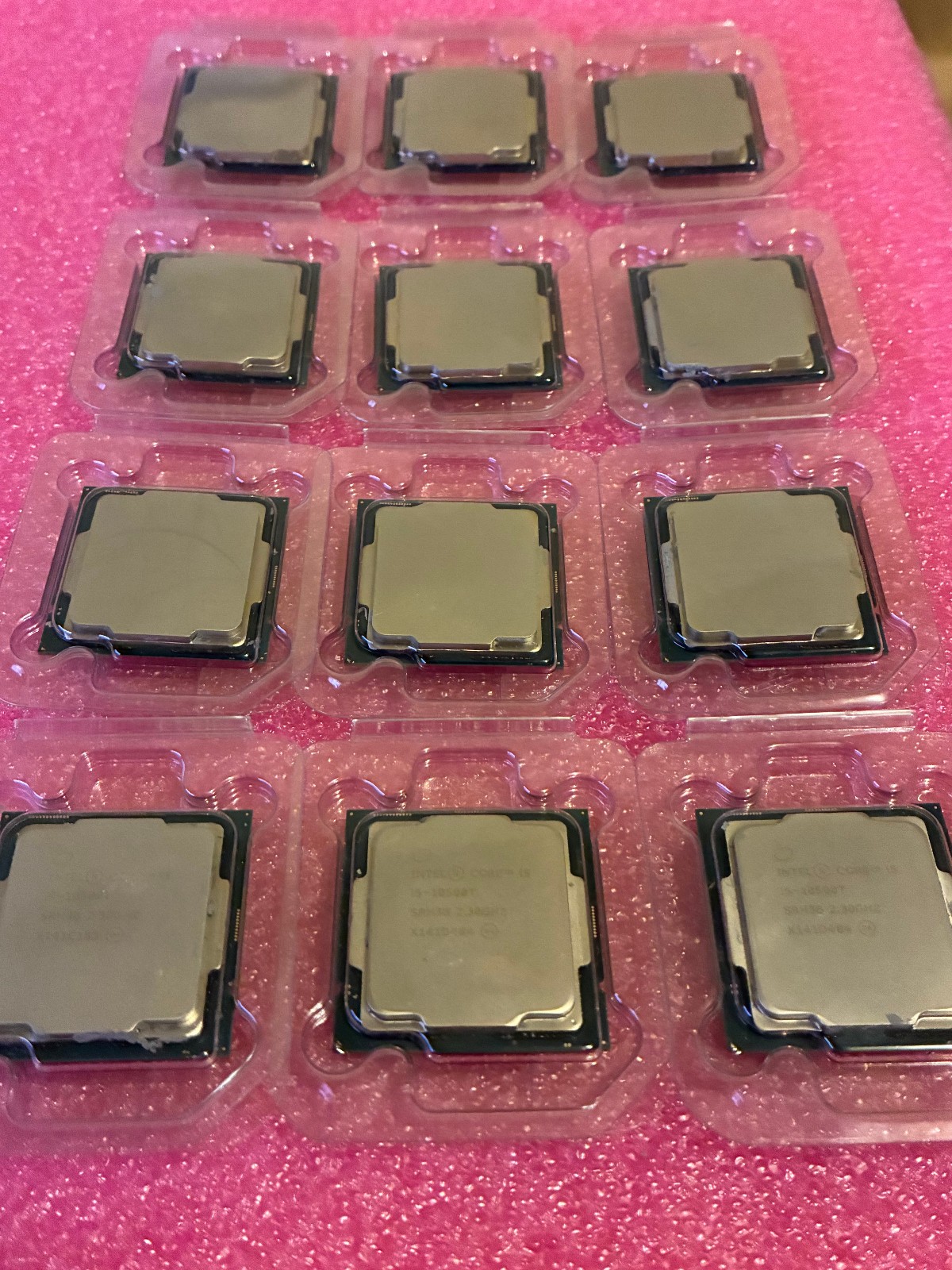

12 tray pulls from working computers. no fan, no box, inserted to cpu fitted clamshell
Intel Core i5-10500T Processor Specifications

Product Collection: 10th Generation Intel® Core™ i5 Processors

Code Name: Products formerly Comet Lake

Vertical Segment: Desktop

Processor Number: i5-10500T

Use Conditions: PC/Client/Tablet

CPU Specifications

• Total Cores: 6

• Total Threads: 12

• Max Turbo Frequency: 3.80 GHz

• Intel® Turbo Boost Technology 2.0 Frequency: 3.80 GHz

• Processor Base Frequency: 2.30 GHz

• Cache: 12 MB Intel® Smart Cache

• Bus Speed: 8 GT/s

• TDP: 35 W

• Marketing Status: Launched

• Launch Date: Q2'20

• Embedded Options Available: No

Memory Specifications

• Max Memory Size (dependent on memory type): 128 GB

• Memory Types: DDR4-2666

• Max # of Memory Channels: 2

• Max Memory Bandwidth: 41.6 GB/s

• ECC Memory Supported ‡: No

GPU Specifications

• GPU Name‡: Intel® UHD Graphics 630

• Graphics Base Frequency: 350 MHz

• Graphics Max Dynamic Frequency: 1.15 GHz

• Graphics Video Max Memory: 64 GB

• 4K Support: Yes, at 60Hz

• Max Resolution (HDMI)‡: 4096 x 2160@30Hz

• Max Resolution (DP)‡: 4096 x 2304@60Hz

• Max Resolution (eDP - Integrated Flat Panel)‡: 4096 x 2304@60Hz

• DirectX Support:* 12

• OpenGL Support:* 4.5

• Intel® Quick Sync Video: Yes

• Intel® InTru™ 3D Technology: Yes

• Intel® Clear Video HD Technology: Yes

• Intel® Clear Video Technology: Yes

• # of Displays Supported ‡: 3

• Device ID: 0x9BC8

Expansion Options

• PCI Express Revision: 3.0

• PCI Express Configurations ‡: Up to 1x16, 2x8, 1x8+2x4

• Max # of PCI Express Lanes: 16

Package Specifications

• Sockets Supported: FCLGA1200

• Max CPU Configuration: 1

• Thermal Solution Specification: PCG 2015B

• Package Size: 37.5mm x 37.5mm

Advanced Technologies

• Intel® Optane™ Memory Supported ‡: Yes

• Intel® Thermal Velocity Boost: No

• Intel® Turbo Boost Max Technology 3.0 ‡: No

• Intel® Turbo Boost Technology ‡: 2.0

• Intel® Hyper-Threading Technology ‡: Yes

• Intel® Transactional Synchronization Extensions: No

• Intel® 64 ‡: Yes

• Idle States: Yes

• Enhanced Intel SpeedStep® Technology: Yes

• Thermal Monitoring Technologies: Yes

• Intel® Identity Protection Technology ‡: Yes

Security & Reliability

• Intel vPro® Eligibility ‡: Intel vPro® Platform

• Intel® Secure Key: Yes

• Intel® AES New Instructions: Yes

• Intel® Software Guard Extensions (Intel® SGX): Yes with Intel® ME

• Intel® OS Guard: Yes

• Intel® Trusted Execution Technology ‡: Yes

• Execute Disable Bit ‡: Yes

• Intel® Boot Guard: Yes

• Intel® Stable IT Platform Program (SIPP): Yes

• Intel® Virtualization Technology (VT-x) ‡: Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes

• Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
