Qty 4

Tested

Grade A

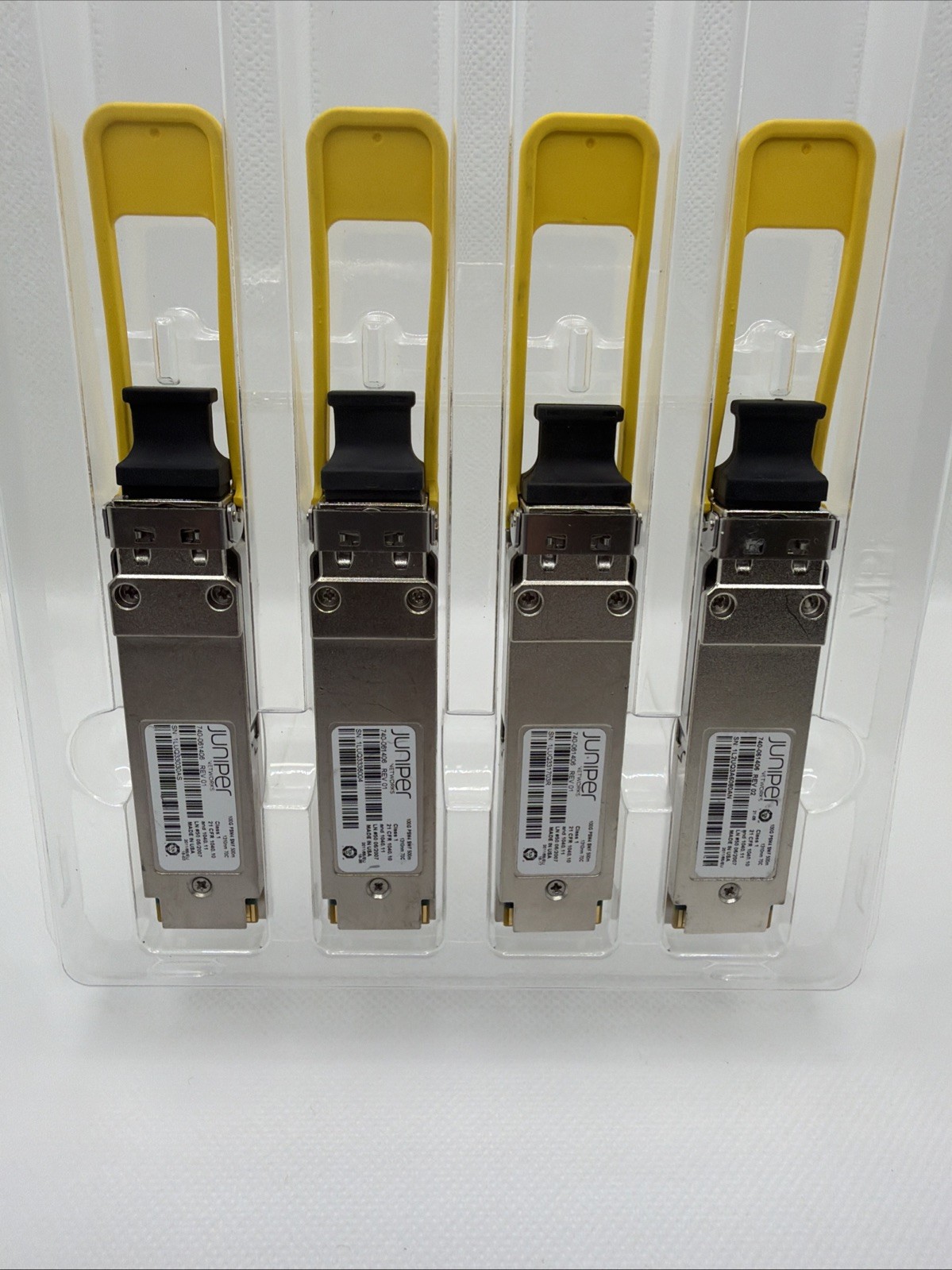

The Juniper JNP-QSFP-100G-PSM4 transceiver module is a high-performance optical transceiver designed for 100 Gigabit Ethernet applications. This transceiver module is commonly used in Data Center Core Networks, ISP, and Mobile Operator applications. It is compliant with QSFP28 Multi Source Agreement (MSA) SFF-8665, 100G PSM4 MSA, and IEEE 802.3bm standards.

TECHNICAL SPECIFICATION

Type: QSFP28 form factor

Speed: 100 Gigabit Ethernet (can also support 4 x 25 Gigabit Ethernet)

Wavelength: 1310nm or 1325nm

Fiber Type: Single-Mode Fiber (SMF)

Distance: Up to 500 meters

Connector: MPO-12 (female MPO/APC)

Digital Optical Monitoring (DOM): Yes, for real-time monitoring of transceiver parameters

Breakout Capable: Yes, using specific MTP-LC breakout cables

Operating Temperature Range: 0° C to 70° C

Storage Temperature Range: -40° C to 85° C

Maximum Power Consumption: 3.5 W

Receiver Sensitivity (Each Lane): -8.6 dB

Extinction Ratio (Minimum): 3.5 dB

Rx Wavelength Bandwidth: 95 nm (1260-1355 nm)

Transmitter Wavelength Range: 1295 nm through 1325 nm

Transmitter Output Power (Each Lane): -9.4 dBm (minimum) to 2.0 dBm (maximum)

Receiver Input Power (Each Lane): -12.66 dBm (minimum) to 2.0 dBm (maximum)
