Product Features:

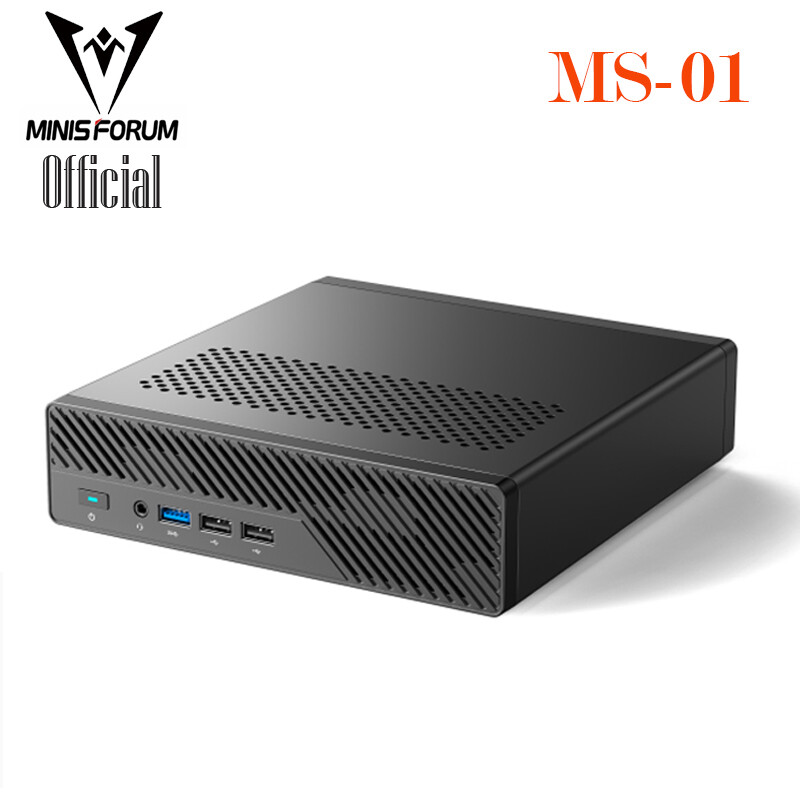

1. MINISFORUM MS-01 Series Mini desktop computers is equipped with the high-end Intel 12th Core i9 12900h Processor,Featuring integrated Intel Iris Xe Graphics with maximum frequencies of 1.5GHz and 1.45GHz,it bring powerful performance and ultimate smooth experience for gaming and working.
2. Supports dual channel DDR5,up to 64GB .The PCIe 4.0 x16 slot allows for the installation of high-performance external GPUs, network cards, storage controllers, and other external devices.Faster data transfer, delivering optimal performance in various applications that require high computational power and bandwidth, such as gaming, video editing, and 3D rendering. Meanwhile,PCIe 4.0 x8 (128GT/s) and is compatible with up to RTX A2000 Mobile.
3. MS-01 supports enterprise-class storage, and expands with up to three M.2 NVMe SSDs, with each slot supporting a maximum capacity of 2TB. The leftmost slot is PCIe 4.0 compatible, with a maximum transfer speed of 7000MB/s.It supports both RAID0 for increased capacity and RAID1 for enhanced data safety. Supports enterprise-class storage, allowing for expansion up to a total max storage of 24TB with a configuration of one U.2 NVMe SSD and two 22110 M.2 NVMe SSDs.MS-01 meets a wide range of capacity requirements.
4. Mini PC MS-01 supports Intel vPRO technology for hardware-level protection, provides hardware-level protection and reduces security risks between virtual machines. vPRO supports hardware acceleration, such as device virtualization for GPUs and sound cards, allowing for more efficient processing of graphics and audio tasks.
5. Micro PC MS-01 is equipped with two 10Gbps SFP+ Ethernet ports. The SFP+ module provides high stability and fiber-optic transmission to prevent eavesdropping and interception, ensuring network security. The 10Gbps transmission speed is 10 times that of traditional 1000Mbps Ethernet, which meets the needs of high-performance network devices. In addition, to the two SFP+ network ports, the MS-01 is equipped with two standard 2.5Gbps RJ45 network ports, which deliver twice the transfer speed of a single 2.5Gbps port for improved network performance.

Product specifications: Model MINISFORUM MS-01 Processor Intel® Core™ i9-12900H Processor More Details » GPU Intel® lris® Xe Graphics eligible Memory DDR5 Up to 4800 MHz (dual channels), Max 64GB Storage M.2 22110/2280 NVME SSD *2 (PCIe 3.0 x2, x4) Storage Expansion M.2 2230 (PCIe colay CNVio2), support WIFI 6E, Bluetooth 5.2 Wireless Connectivity M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.3) Video Output HDMI (4K@60Hz) ×1 Type C_USB4 (40Gbps+Alt DP) ×2 Audio Output HDMI×1 Audio Jack (Ø3.5mm Combo Jack)x1 Ports &Buttons RJ45 (2.5G) (intel KTI226V B3)×1 RJ45 (2.5G with vPro) (intel I226-LM)×1 USB 2.0 (colay with SFP+ ports)×2 USB_type A(USB3.2 10Gbps)×2 SFP+(PCIe 4.0 x4)×2 USB_type Ax1 (USB3.2 10Gbps) USB 2.0 x2 Audio Jackx1 (Ø3.5mm Combo Jack) Power Buttonx1 (with LED) Power DC-IN Jack x1 (19V/16A) System Windows Product Dimension 195.6×189×48mm RAM Size& SSDCapacityOptional 0GB RAM + 0GB SSD Barebone No RAM, No SSD Q & A
1.What's “Barebone”？
Barebone refers to a computer without RAM and solid-state drive. To assemble a computer, RAM and solid-state drives need to be purchased and assembled separately by the user.
2. What's the Brand of SSD and RAM? We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, teamgroup etc. as our RAM and SSD suppliers. Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers. The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
3.Does it comes with an operating system? Barebone Comes with no RAM and no SSD, no operating system. Windows 11 operating system will be pre installed, need other OS, you leave us a note or can contact us before it's shipped.
