Price Note:
For shipments to the United States, Canada, and Australia, customs duties are included in the price. You don't need to worry about duties — we will handle and pay them.
For shipments to EU countries such as Germany, Italy, France, Spain, United Kingdom etc., customs clearance must be handled by the customer. Please contact us to confirm the customs duties.
Please note: The 64GB memory chips on this model are soldered to the motherboard. User upgrade to 128GB is not possible.

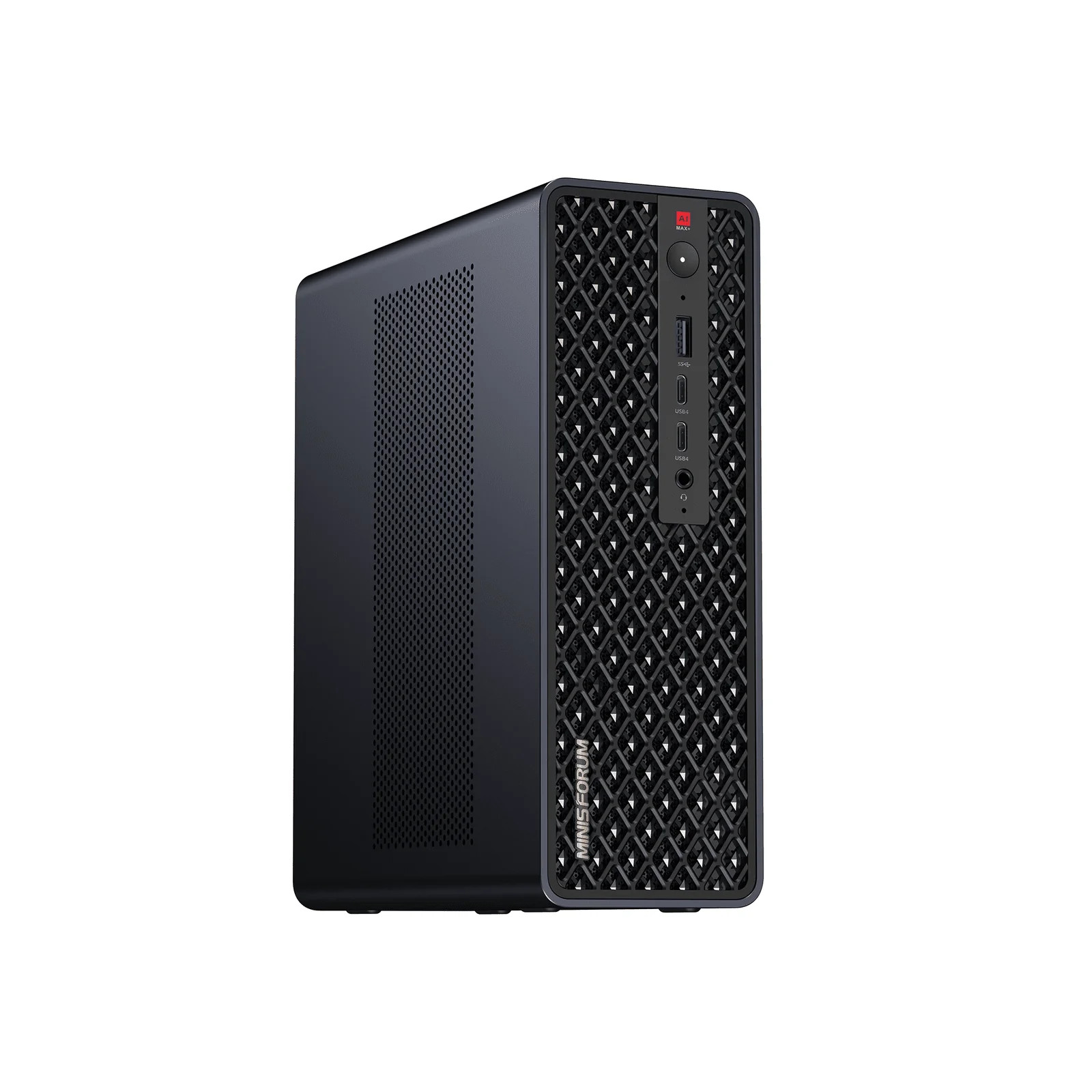

Minisforum MS-S1 MAX Product Specification CPU
AMD Ryzen™ AI Max+ 395
16 Cores, 32 Threads
Max Clock: 5.1 GHz
TDP
Performance Mode: 130W
Balanced Mode: 95W
Quiet Mode: 60W
GPU
Radeon 8060S Graphics (Internal)
GPU Cores: 40
GPU Clock: 2900 MHz
AI Engine Performance
AMD Ryzen™ AI
NPU Computing Power: Up to 50 TOPS
Total Computing Power: Up to 126 TOPS
RAM
LPDDR5x-256Bit
Max frequency support: 8000MHz
Max capacity support: 64GB/128GB Optional
SSD
1× M.2 2280 NVMe SSD slot
(supports up to 8TB, PCIe 4.0 ×4)
1× M.2 2280 NVMe SSD slot
(supports up to 8TB, PCIe 4.0 ×1)
Heat Dissipation
6 Heat Pipes & Phase Change Material
Dual Turbine Fans
Max CPU Fan Speed: 3600 RPM
Wireless Connectivity
Wi-Fi 7 | Bluetooth® 5.4
Ethernet Controller
2× 10GbE LAN (RJ45)
Video Output
1× HDMI (up to 8K@60Hz/4K@120Hz)
2× USB4 (up to 8K@60Hz/4K@120Hz)
2× USB4 V2 (up to 8K@60Hz/4K@120Hz)
Audio Output
HDMI ×1
3.5mm Audio Combo Jack (TRRS) ×1
Audio Input
DMIC ×2
3.5mm Audio Combo Jack (TRRS) ×1
I/O Ports (Front)
2× USB4 (40Gbps, Alt DP 2.0, PD out 15W)
1× USB 3.2 Gen2 (10Gbps)
1× 3.5mm Audio Combo Jack (TRRS)
2× DMIC
I/O Ports (Rear)
1× 10GbE LAN (RJ45, Realtek RTL8127)
1× 10GbE LAN (RJ45, Realtek RTL8127)
2× USB 3.2 Gen2 (10Gbps)
2× USB 2.0
2× USB4 V2 (80Gbps, Alt DP2.0, PD out 15W)
1× HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz)
I/O Ports (Internal)
PCIe ×16 slot (PCIe 4.0 ×4)
Button/Hole
1× Power Button (with LED)
1× BIOS Reset Hole
Pre-installed OS
OS Support
Windows 11 Pro
Windows 11 24H2 Pro / Home
Power
AC INPUT
(100-240V ~6A 50-60Hz, Internel-DC 12V/26.6A, 320W MAX)
VESA Mount & Dimensions
100-178.5mm
222.1 × 206.3 × 77.1 mm
Weight
2.8 kg
