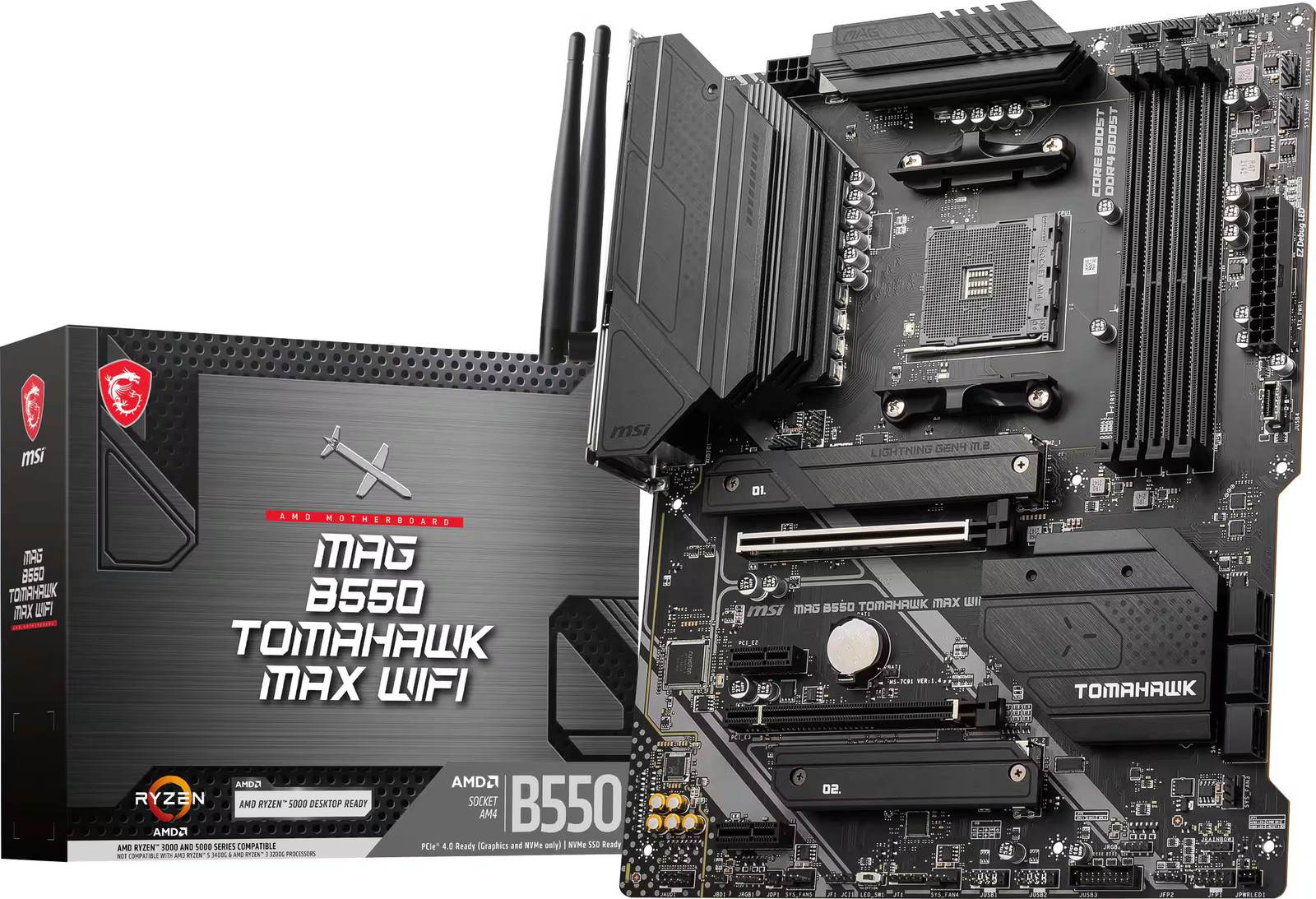

MSI - B550 TOMAHAWK MAX WIFI (Socket AM4) AMD B550 ATX DDR4 Wi-Fi 6E Motherboard - Black

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. MAG B550 TOMAHAWK WIFI features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

Included ItemsFeatures

Supports AMD Ryzen 7 and Ryzen Processors
In an AM4 socket.

Up to 4866+MHz
4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 MHz by JEDEC; Supports DDR4 MHz by A-XMP OC MODE.

AMD CrossFireX Graphics Support
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1Maximum shared memory of 16GB.

Four 288-Pin DDR4 SDRAM DIMM Sockets
Support up to 64GB of system memory.

Audio
Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output.

Storage
6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/2260/2280/22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/2260/2280 storage devices.

Expansion Slot
1x PCIe 4.0/3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots.

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.

USB
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors).

LAN
1x Realtek RTL8125B 2.5Gbps LAN controller; 1x Realtek RTL8111H 1Gbps LAN controller.

Internal Connectors
1x 24-pin ATX main power; 1x 8-pin ATX 12V power; 6x SATA 6Gb/s; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors; 1x 4-pin CPU fan.

Internal Connectors
1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x TPM module connector; 1x Clear CMOS Number:B550TMHWKWIFIProduct Name:B550 TOMAHAWK MAX WIFI (Socket AM4) AMD B550 ATX DDR4 Wi-Fi 6E MotherboardColor:BlackChipset:AMD B550Chipset Compatibility:AMDForm Factor:ATXProcessor Socket:Socket AM4 (PGA 1331)Processor Compatibility:AMD Ryzen 7 5000 Series, AMD Ryzen 7 3000 Series, AMD Ryzen 5 5000 Series, AMD Ryzen 5 3000 SeriesOperating System Compatibility:Windows 10, Windows 11 Home, Windows 11 ProNumber of PCI-E Slots:3Number of M.2 Slots:2Number Of PCI-E x16 Slots:2Number Of PCI-E x1 Slots:1SATA Connector:6x SATA 6GWireless Connectivity:Bluetooth, Wi-FiWireless Networking Standard:Wi-Fi 6EWireless Standard:AXUSB Ports:4 x USB-A 2.0, 5 x USB-A 3.0, 2 x USB-C 3.1Audio Ports:1x Front Audio (JAUD)Number of Audio Channels:7.1Number Of Memory Slots:4Product Length:304.8 millimetersProduct Width:50.8 millimetersProduct Weight:20 ouncesMaximum Memory Supported:128 gigabytesMemory Type Supported:DDR4Memory Format Supported:UDIMMMemory Speeds Supported:4866Memory Slot Type:288-pin DIMMRAID Support:RAID 0, RAID 1, RAID 10 (RAID 1+0)Warranty - Parts:3 yearsWarranty - Labor:3 YearYear of Release:2021
