MSI GeForce RTX 5090 32GB GDDR7 SUPRIM Liquid SOC
UPC: 824142318097
MPN: RTX 5090 32G SUPRIM LIQUID SOC
Brand: MSI
Chipset Manufacturer: NVIDIA
Chipset/GPU Model: NVIDIA GeForce RTX 5090
Memory Size: 32 GB
Memory Type: GDDR7
Compatible Slot: PCI Express 5.0 x16
Connectors: DisplayPort, HDMI
Power Cable Requirement: 16-Pin PCI-E
Cooling Component Included: Fan with Heatsink and Liquid Cooler
APIs: DirectX 12 Ultimate, OpenGL 4.6
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- RTX509032GGAMTR
- G5090-32GTC
- TUF5090O32GGM
- 90YV0P00-MVAA00
- 90YV0LW2-MVAA00
- GV-N5090GAMING OC-32GD
- GV-N5090WF3OC-32GD
- ZT-B50900J-10A
- ZT-B50900D-10P
- MSI GeForce RTX 5090 SUPRIM X 32G
- MSI GeForce RTX 5090 GAMING X TRIO 32G
- ASUS ROG Strix GeForce RTX 5090 LC 32GB GDDR7
- GIGABYTE AORUS GeForce RTX 5090 WATERFORCE 32GB GDDR7
- ZOTAC GAMING GeForce RTX 5090 AMP Extreme AIRO Liquid 32GB GDDR7
Architecture & Compute Performance
Powered by the groundbreaking NVIDIA Blackwell architecture (GB202-300-A1), this RTX 5090 delivers unprecedented compute and rendering capabilities. Featuring a massive 21,760 CUDA Cores, 680 5th Generation Tensor Cores, and 170 4th Generation Ray Tracing Cores, it is engineered for extreme high-end gaming, AI/Machine Learning, and enterprise-grade workloads. The factory-overclocked core reaches up to 2580 MHz in MSI Center Extreme Performance mode, ensuring maximum frame rates and compute throughput.
VRAM & Memory Bandwidth
Equipped with a staggering 32GB of next-generation GDDR7 memory, this GPU is built to handle the most demanding 8K gaming and massive dataset rendering. Operating on a 512-bit memory bus at 28 Gbps effective speed, it achieves an astonishing 1,792 GB/s (1.79 TB/s) of total memory bandwidth. Combined with a massive 98 MB L2 cache, it eliminates bottlenecks in high-resolution textures and complex AI models.
Power, Cooling & Connectivity

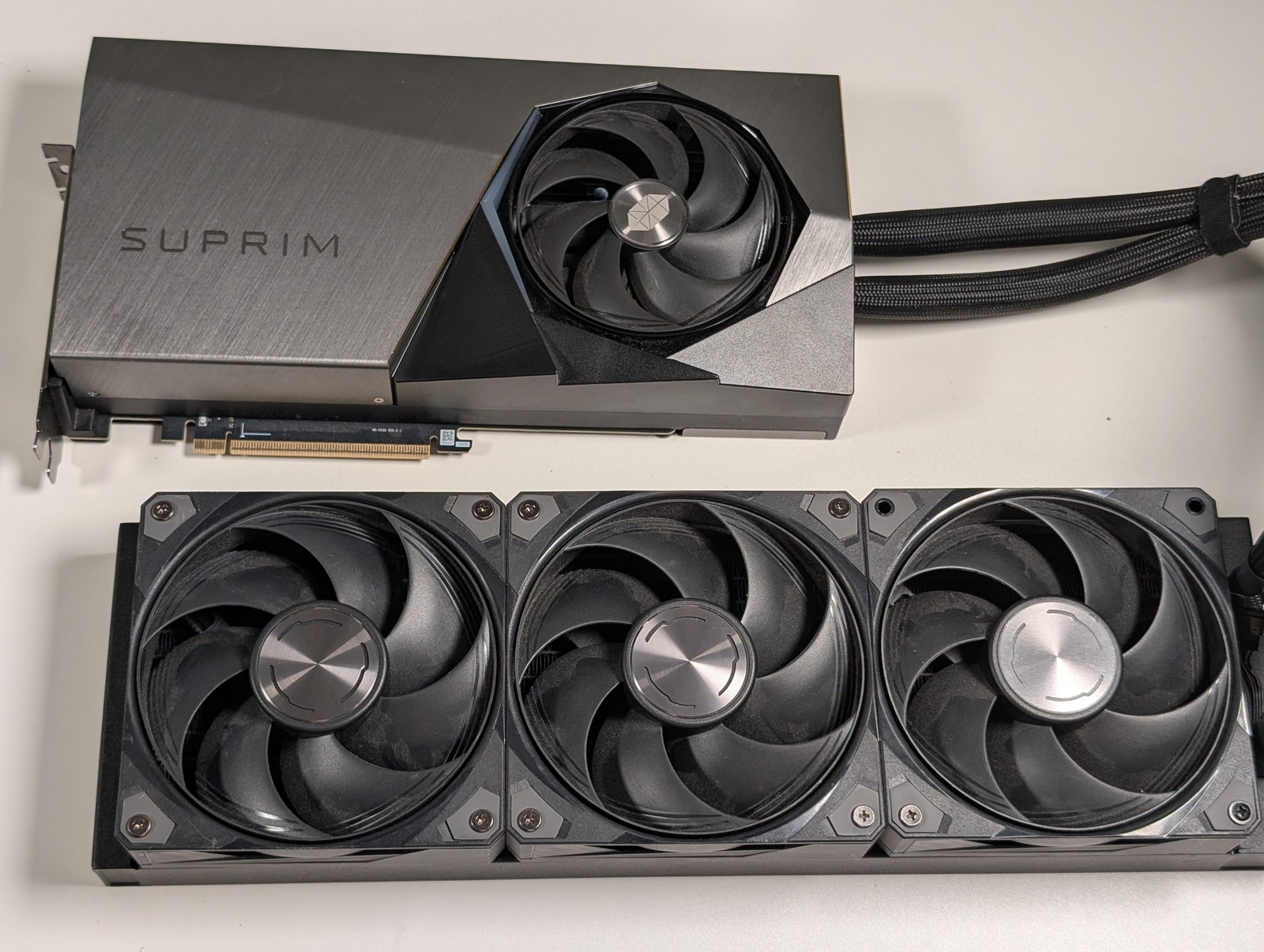

The SUPRIM Liquid SOC features an advanced hybrid liquid cooling system, utilizing a 360mm AIO radiator with STORMFORCE fans alongside a dedicated VRM fan on the card itself to tame its 575W Total Graphics Power (TGP). It requires a 1000W recommended power supply and utilizes a single 16-pin (PCIe 5.0 / ATX 3.0) power connector. Display connectivity includes 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting maximum digital resolutions up to 7680 x 4320. The physical card occupies a quad-slot footprint, ensuring robust thermal dissipation for sustained peak performance.
