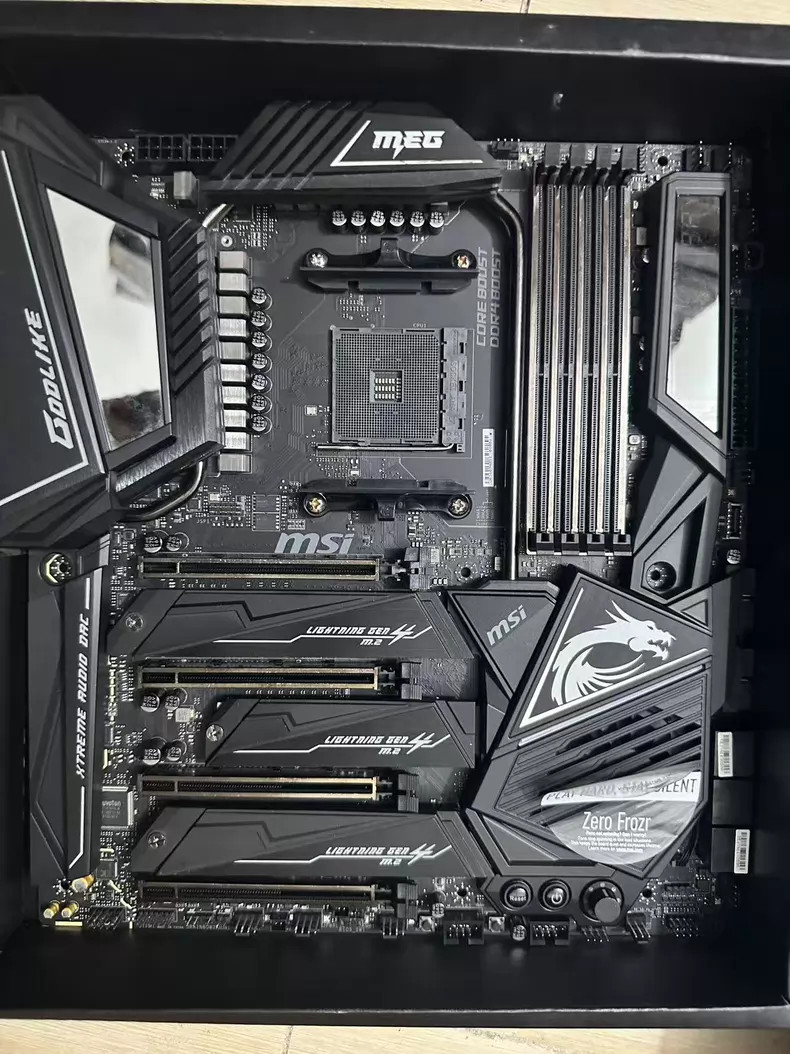

Model：MSI MEG X570 GODLIKEChipset：AMD X570CPU Socket：Socket AM4Supported CPUs： - 2nd/3rd Gen AMD Ryzen (up to Ryzen 9 5950X)
- Ryzen with Radeon Vega Graphics
Memory： - 4×DDR4 DIMM slots
- Max Capacity：128GB (4×32GB)
- Frequency：DDR4 5400(OC)/5333(OC)/…/2133 MHz
- Architecture：Dual Channel；ECC & XMP support
Expansion Slots： - 4×PCIe 4.0 x16 (Steel Armor)
- Config：x16/x0/x0/x0, x8/x0/x8/x0, x8/x4/x4/x0
- Multi-GPU：NVIDIA 2-Way SLI；AMD 3-Way CrossFireX
Storage： - SATA：6×SATA 6Gb/s
- M.2：3×M.2 2280/22110 (PCIe 4.0 x4, M.2 Shield Frozr)
- Bonus：M.2 Xpander-Z card (2×extra M.2)
- RAID：0/1/10 (SATA)
USB： - Rear：1×USB3.2 Gen2x2 Type-C, 1×USB3.2 Gen2 Type-C, 3×USB3.2 Gen2 Type-A, 2×USB3.2 Gen1 Type-A
- Front：1×USB3.2 Gen2 Type-C, 4×USB3.2 Gen1 Type-A, 4×USB2.0
- Total：10×USB3.2, 4×USB2.0
LAN： - 1×Killer E3000 2.5Gbps
- 1×Killer E2600 Gigabit
- Wireless：Killer Wi-Fi 6 AX1650 (2.4G/5G, 2.4Gbps) + Bluetooth 5.1
Audio： - Dual Realtek ALC1220
- ESS E9018 DAC (6.3mm gold-plated jack)
- 7.1-channel HD Audio, THX TruStudio PRO, Optical S/PDIF out
Power & Overclocking： - 16+4+1 phase digital PWM (IR, DrMOS, Titanium Choke II)
- Dual 8pin + 24pin, server-grade PCB, full armor
- Onboard：Power/Reset, Debug LED, Dynamic Dashboard
- BIOS：UEFI GUI, 128Mb, Mystic Light Infinity II
Rear I/O Ports： - USB3.2 Gen2x2 C, USB3.2 Gen2 C, 3×USB3.2 Gen2 A, 2×USB3.2 Gen1 A, 2×RJ45, Wi-Fi antenna, Optical S/PDIF, 5×Audio jacks, CMOS clear
Form Factor：  |
|
