MSI X99A GAMING PRO CARBON ATX Motherboard LGA2011-V3
Working system pull. Confirmed working.

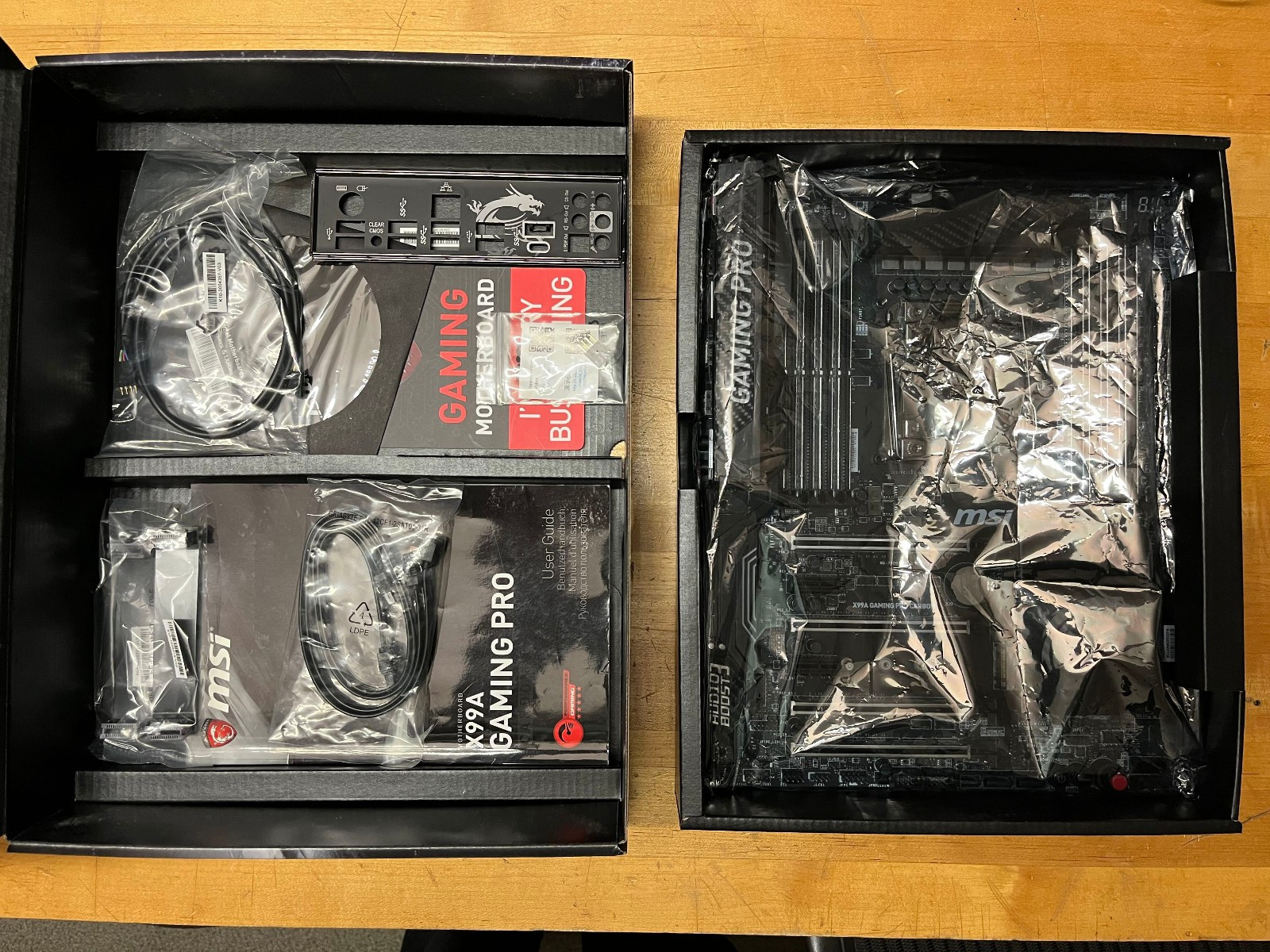

Comes in original box with I/O backplate, manual, and other accessories (see pic).
Free shipping to US lower 48 states.ModelBrandMSIModelX99A GAMING PRO CARBONSupported CPUCPU Socket TypeLGA 2011-v3CPU TypeCore i7 (LGA2011-v3)ChipsetsChipsetIntel X99Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphicMemoryNumber of Memory Slots8x288pin (DDR4)Memory StandardDDR4 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133Maximum Memory Supported128GBChannel SupportedQuad ChannelExpansion SlotsPCI Express 3.0 x164 x PCIe 3.0 x16 slots*
- Support x16/ x0/ x0/ x0, x16/ x16/ x0/ x0, x16/ x16/ x0/ x8, x8/ x16/ x8/ x8 with the CPU that supports 40 PCIe lanes.
- Support x16/ x0/ x0/ x0, x16/ x8/ x0/ x0, x8/ x8/ x8/ x0, x8/ x8/ x8/ x4 with the CPU that supports 28 PCIe lanes.* PCI_E6 slot shares the bandwidth with U.2 port and M.2 PCIe 3.0 x4. Please refer to page 32 for PCIe 3.0 bandwidth table.PCI Express x12 x PCIe 2.0 x1 slotsStorage DevicesSerial ATA (SATA)10 x SATA 6Gb/s ports (2 ports from SATAe port)
- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7~10 only support IDE mode and AHCI modeSATA Express1 x SATAe port* (compatible with 2 SATA ports)
- Supports up to PCIe 2.0x2M.21 x M.2 slot (Key M)*
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
1 x U.2 port */ **
- Supports PCIe 3.0 x4 NVMe storage* M.2 slot (PCIe 3.0 x4) and U.2 share the same bandwidth. Please refer to page 38 for U.2/ M.2/ SATAe & SATA combination table.
** The U.2 port will be unavailable when installing the PCIe device in PCI_E6 slot.Onboard AudioAudio ChipsetRealtek ALC1150Audio Channels7.1 ChannelsOnboard LANLAN ChipsetIntel I218VRear Panel PortsBack I/O Ports1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 4 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-APS/21 x PS/2 keyboard/mouse portRJ451 x RJ45USB 3.14 x USB 3.1 Gen1 ports
1 x USB 3.1 Gen2 port
1 x USB 3.1 Gen2 Type-C portUSB 1.1/2.04 x USB 2.0S/PDIF Out1 x OpticalAudio Ports5 PortsInternal I/O ConnectorsOnboard USB2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
1 x USB 3.1 Gen1 Type-C portOther Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
3 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x Slow mode booting jumper
1 x GAME BOOST knob
1 x Power button
1 x Reset button
1 x Multi-BIOS switch
1 x RGB LED connectorPhysical SpecForm FactorATXDimensions (W x L)12.0" x 9.6"Power Pin24 PinFeaturesFeaturesSupports New Intel Core i7 Processor Extreme Edition for LGA 2011-3 socketDDR4 Steel Armor with Best signal stability, Quad Channel DDR4-3466+(OC)Mystic Light: Customize and set up your own color scheme with GAMING APP to make your PC look & feel brand new!Mystic Light Extension: Extend you style to everythingTurbo U.2 & M.2 Steel Armor: Delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32Gb/sUSB 3.1 Gen2 Type-C & Type-A combo + USB 3.1 Gen 1 Type-C (front) + SATA EXPRESS 10Gb/s + SATA 6Gb/sAudio Boost 3: Reward your ears with studio grade sound qualityNahimic Audio Enhancer: Immersive sound quality that pushes the limits of realityGAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latencyXSplit Gamecaster V2: Show off you skills to the world with a 1 year premium license for this popular streaming softwareMilitary Class 5: The latest evolution in high quality components featuring the brand new Titanium ChokesGuard-Pro: Improved Protection and Power EfficiencyMULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports 3-way NVIDIA SLI & AMD CrossfireGame Boost: Generate more FPS in games with 1 push of a buttonEZ Debug LED: Easiest way to troubleshootOvervoltage Protection: Prevent Unforeseen DamageGAMING Hotkey: Launch your favorite games with a single buttonClick BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable fontSteelSeries Certified: Optimized for SteelSeries gaming gearGAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experienceMulti-GPU
- Supports 3-Way AMD CrossFire Technology
- Supports 3-Way NVIDIA SLI TechnologyMounting
- 9 mounting holes
