Dear valued buyer, thank you for viewing our page. We will provide you best service and high quality products. Every Item will be inspect before ship it out, we ensure it qualified in orders, and everyone will be packaged carefully. You must be happy to do business with us.
we specialize in computer accessories and so on. we only sell original parts please buy with confidence.

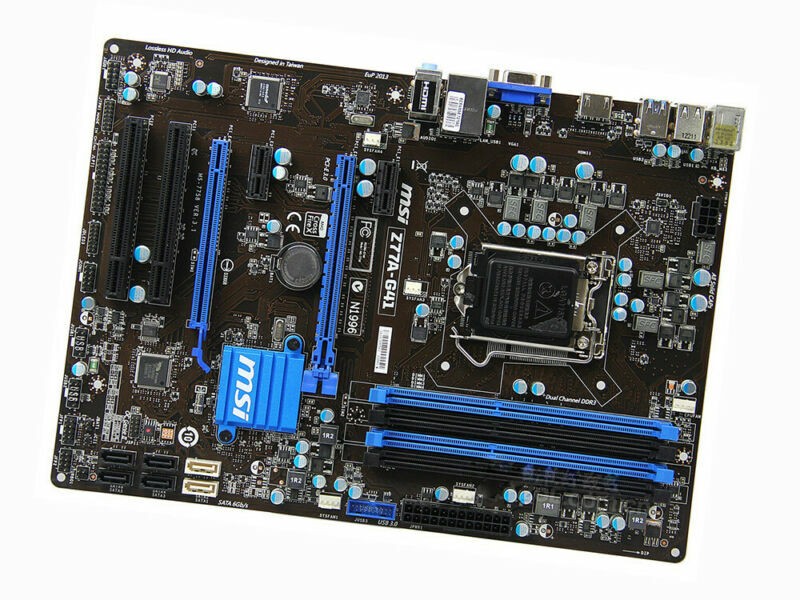

Motherboard model
MS-7758 Z77A-G41
Package Included
1 x Motherboard.
2x sata cable(free gift).
1 xI/O back panel.
We accept PayPal payment ONLY.
Shipping time(Standard shipping)
Area
Normally delivery time
USA
10-20 days
European Union
12-25 days
Australia Canada Europe Countries
12-25 days
Asia countries
15-30 days
Other countries
15-40 days
it maybe arrive late,if you want to get it fast, please choose expedited shipping when buying.
2. Please contact us before returning items and we will provide the shipping address. DO NOT send without communication.
3. Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
4. Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..
General information:
CPU
• Supports3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® Z77 Chipset
Main Memory
• Support four DDR3 DIMMs 1066/1333/1600/1866(OC)/2133(OC), 2200*/2400*/2667*/2800*MHz(OC, 22nm CPU required) DRAM (32GB Max)
- Supports Dual-Channel mode
Note: DDR 1600 memory support will vary based on the CPU use
Slots
• 1 x PCIe 3.0 x16 slots
- PCI_E2 supports up to PCIe 3.0 x16 speed
• 1 x PCIe 2.0 x16 slot
- PCI_E4 supports up to PCIe 2.0 x4 speed
• 2 x PCIe 2.0 x1 slots
•2 x PCI slots
On-Board SATA
• SATAIII controller integrated in Intel® Z77chipset
- Up to 6Gb/s transfer speed.
- Supportstwo SATAIII ports (SATA1~2) by Z77
• SATAII controller integrated in Intel® Z77chipset
- Up to 3Gb/s transfer speed.
- Supportsfour SATAII ports (SATA3~6) byZ77
• RAID
- SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® Z77
USB 3.0
•2 x USB 3.0 rear IO ports by Intel® Z77
• 1 x USB 3.0 onboard connector by Intel® Z77
Audio
• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
LAN
• Supportsone PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111E
Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x 4 FAN connectors
- 1 x Clear CMOS jumper
-4 x Serial ATAII connectors
-2 x Serial ATAIII connectors
-2 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Trusted Platform Module (TPM) header
- 1 x Front Panel Audio connector
- 1 x Front Panel connector
- 1 x Chassis Intrusion connector
- 1 x Voice Genie connector (optional)
- 1 x MultiConnect Panel connector (optional)
Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse port
-4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x3 in 1 audio jack
- 1 x HDMI® port with max. resolution up to 1920x1200 at 60Hz
- 1 x VGA port with max. resolution up to 2048x1536 at 75Hz
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 30.5cm(L) x 21.6cm(W) ATX Form Factor
Mounting
•6 mounting holes.
