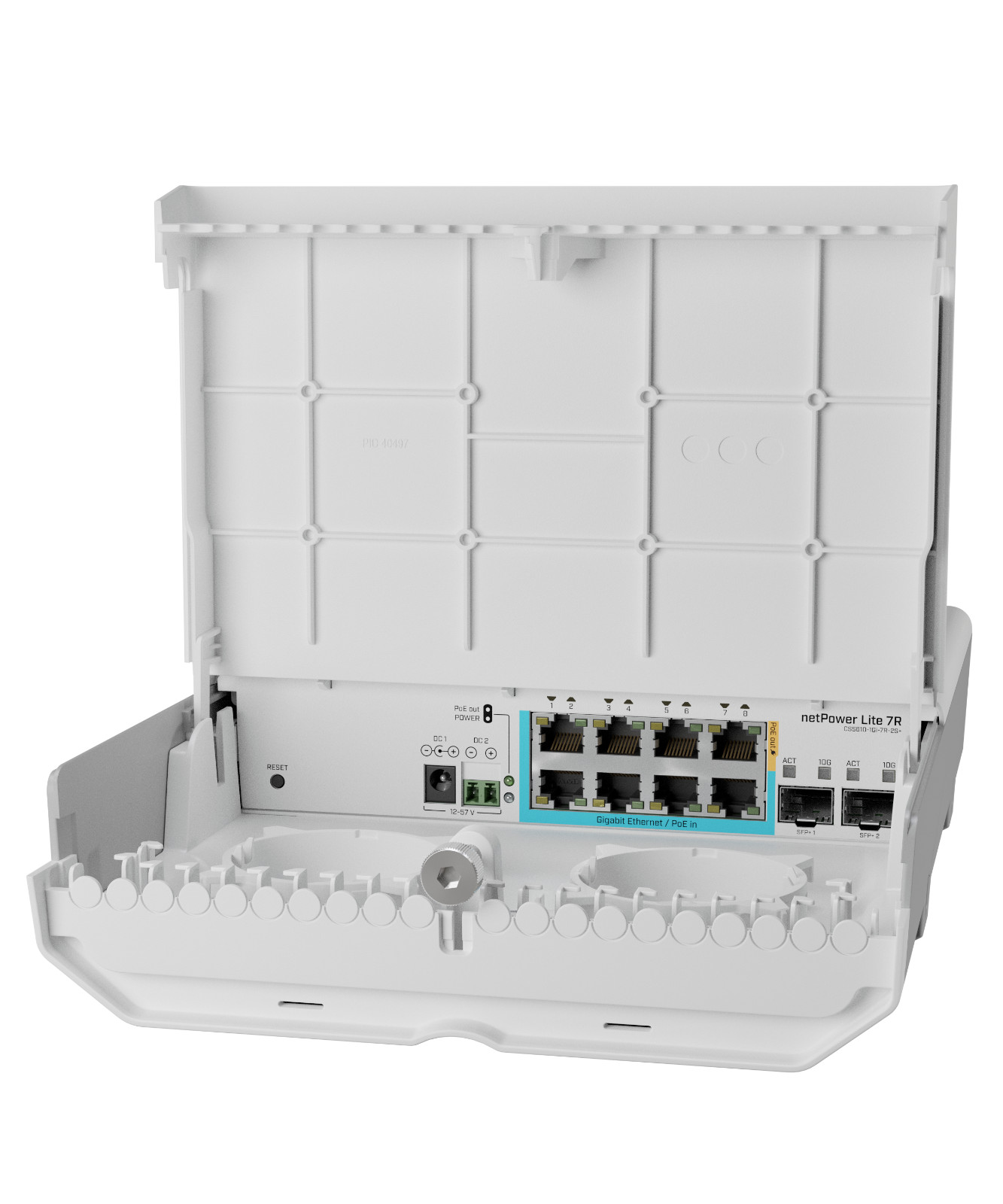

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This electronics switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.
The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
SpecificationsDetailsProduct codeCSS610-1Gi-7R-2S+OUTSwitch chip model88E6193XDimensions304 x 212 x 71 mmOperating SystemSwitchOS LiteStorage size64 KBStorage typeFLASHMTBFApproximately 200'000 hours at 25CTested ambient temperature-40°C to 70°CPoweringDetailsNumber of DC inputs3 (DC jack, PoE-IN, 2-pin terminal)DC jack input Voltage12-57 V2-pin terminal input Voltage12-57 VMax power consumption29 WMax power consumption without attachments7 WCooling typePassivePoE inPassive PoEPoE in input Voltage12-57 VPoE-outDetailsPoE-out portsEther8PoE outPassive PoEMax out per port output (input 18-30 V)600 mAMax out per port output (input 30-57 V)450 mAEthernetDetails10/100/1000 Ethernet ports8Number of 1G Ethernet ports with Reverse PoE (PoE-in)7Number of 1G Ethernet ports with PoE-out1FiberDetailsSFP+ ports2Certification & ApprovalsDetailsCertificationCE, EAC, ROHSIPIP54
