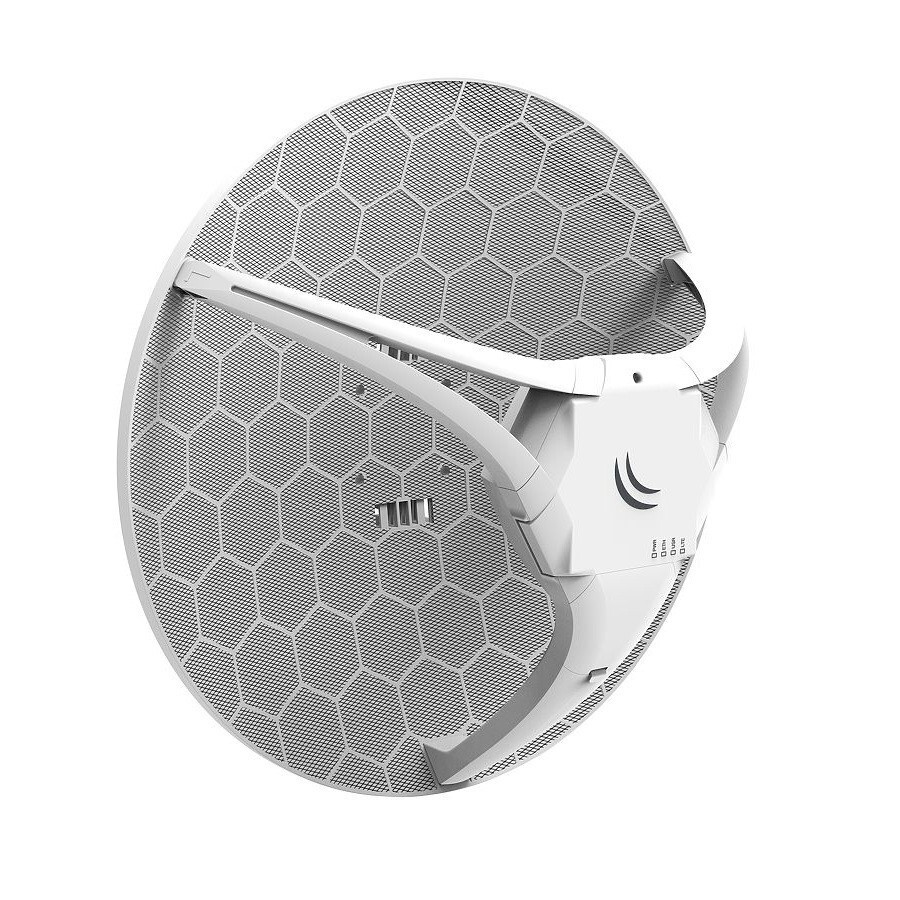

PRODUCT INFORMATIONMikroTik RouterBOARD RBLHGR&R11e-LTE6LHG LTE6 kit, 17dBi 25° antenna, single SIM, 650MHz CPU
The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
The grid design ensures protection against wind, the antenna element is built into the wireless unit – no loss on cables. Choose LHG LTE6 kit and always be RBLHGR&R11e-LTE6CPU QCA9531650 MHzSize of RAM64 MBStorage16 MB flashLTE antenna gain17 dBiAntenna beam width25°LTE category6 (300 Mbps downlink, 50 Mbps uplink)3G categoryR7 (21 Mbps downlinks, 5.76 Mbps uplink) R8 (42.2 Mbps downlink, 5.76 Mbps uplink)2G categoryClass12Mini SIM slot1PoE inPassive PoE, 802.3af/atSupported input voltage12 - 57 VDimensions391 x 391 x 227 mmOperating ambient temperature-40°C .. +60°CLicense level3Max power consumption6 WSupported bandsLHG LTE6 kitLTE (FDD) (TDD) bands1(2100)/2(1900)/5(850)/8(900)2G bands2(1900)/3(1800)/5(850)/8(900)
