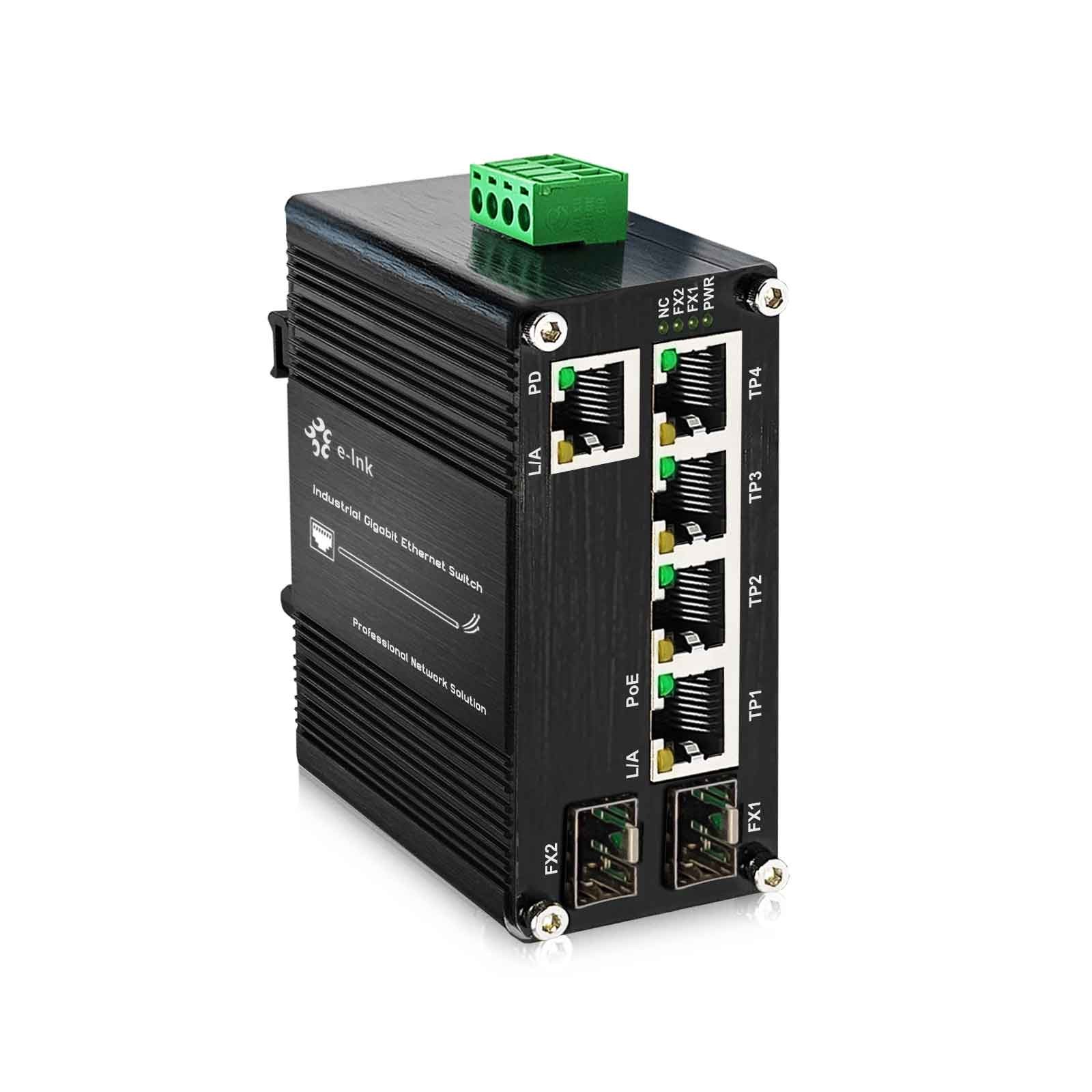

Mini Industrial Gigabit 90W PoE++ PD Fiber Switch 4×RJ45 + 1×PD Port + 2×SFPMini Industrial Gigabit 90W PoE++ PD Fiber Switch (4×RJ45 + 1×PD Port + 2×SFP) - LNK-IMC205GHP-SFPPD PoE Switch Overview
The E-link LNK-IMC205GHP-SFP Series represents a cutting-edge industrial-grade networking solution engineered for high-power device applications. This advanced PD PoE switch integrates 4×10/100/1000Base-T ports with IEEE 802.3bt PoE++ capability delivering up to 90W per port, 1×standard Gigabit Ethernet port, and 2×dual-rate 100/1000Base-X SFP fiber slots for flexible network connectivity.
Utilizing innovative IEEE 802.3bt PoE++ standard and Power over HDBaseT (PoH) technology, this PD PoE switch delivers up to 95 watts of power through all four pairs of standard Cat5e/6 Ethernet cabling, providing both high-power delivery and full-speed data transmission to connected devices. This represents a 300% power increase compared to conventional 802.3at PoE+ technology, addressing the growing demand for power-intensive network applications.
Specifically designed for high-power devices, this PD PoE switch efficiently supports power-hungry equipment including PTZ speed dome cameras, thin clients, all-in-one touch PCs, point of sale systems, information kiosks, digital signage displays, and PoE lighting systems. The robust IP40-rated enclosure and DIN-rail mounting capability ensure reliable operation in demanding industrial environments.
Ideal for power/utility systems, water wastewater treatment, oil/gas/mining operations, factory automation, security surveillance, and intelligent transportation systems, this switch provides enhanced EFT and ESD protection for mission-critical applications in outdoor and harsh environmental conditions where reliable high-power delivery and network connectivity are essential requirements.
Key Features
- 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports PD PoE Switch
- 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
- One IEEE 802.3bt (PoE++) PD PoE Port with 95 W Power Input
- Up to 4 ports of IEEE 802.3bt/at/af devices powered
- Powered by PoE switch or PoE injector, Or powered by 48-57VDC external power adaptors
- When powered PoE devices, 4 PSE PoE ports, PoE Power Budget up to 71 Watt
- POE extender: No AC adapter is required, powered by PoE switch or PoE injector
- Supports PoE power up to 95 watts for each PoE port when external power adaptors 48~57V DC Input
- Up to 360-watt PoE budget
- Supports DIN-Rail installation
- Compact fanless design avoids overheating
- IP40 rugged high-strength metal case
- -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 4-Port PoE++ Switch 90W Port 360W Budget 2 SFP -40~80°C Voltage Booster
E-link LNK-IMC205GHP-SFP Series is a Mini Industrial High Power 90W 802.3bt PD PoE Switch with 4*10/100/1000T Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection.
Industry-Leading 90W Per Port PoE++
Unleash the full potential of high-power devices with our industrial PD PoE switch, featuring4 IEEE 802.3bt (PoE++)portsthat deliver an industry-leading90W (up to 95W) per port. This massive power output eliminates the need for separate electrical wiring for energy-intensive equipment such ashigh-performance PTZ cameras with heaters/blowers, advanced Wi-Fi 6/6E access points, and even LED lighting systems. With a generoustotal PoE budget of 360 watts, you can fully utilize all four ports simultaneously without overloading. This makes it the ultimateall-in-one power and data solutionfor next-generation surveillance, wireless coverage, and industrial IoT applications.
Redundant Power & Industrial Hardening
Engineered for non-stop operation in the most demanding conditions, this PD PoE switch is built around a philosophy of absolute reliability. Its48-57V DC redundant power inputswith reverse polarity protectionprovide a critical fail-safe, ensuring yourmission-critical networksremain online 24/7, even in the event of a power supply failure or wiring error. Housed in afanless, IP40-rated rugged metal case, it guarantees stable and silent operation across anextended temperature range of-40°C to 80°C, capable of withstanding extreme cold or heat in unconditioned industrial settings. The compactDIN-rail mountingdesign allows for seamless integration into control cabinets, making it the cornerstone of a robust and resilient network infrastructure.
Application
High-Power Surveillance Systems
EnablesPTZ camera networksandAI analytics systems, providing90W per portforhigh-performance camerasandfiber backbone connectivityincity surveillance projects
Digital Signage Networks
Supportslarge-format displaysandinteractive kiosks, deliveringsufficient powerfordigital signage systemswithreliable fiber uplinksforcontent distribution
Industrial Automation
Enablesmachine vision systemsandindustrial PCs, providinghigh-power PoEforHMI panelsandautomation equipmentinsmart factory environments
Retail Technology Deployments
SupportsPOS systemsandretail analytics, deliveringpower and connectivityfortouchscreen displaysandcustomer counting systems
Transportation Infrastructure
EnablesITS applicationsandtraffic monitoring, providingreliable operationforvehicle detection systemsandlicense plate recognition cameras
Utilities and Energy
Supportssubstation automationandremote monitoring, featuringharsh environment capabilityforpower distribution equipmentandSCADA systems
Why Choose Us
Industry-Leading Power Capacity
Delivers90W per portwith360W total PoE budget–3x more powerthan standard PoE+ switches, supportingmultiple high-wattage deviceslikePTZ camerasanddigital signagesimultaneously
Future-Proof Network Architecture
Combines4 high-power PoE++ portswithstandard Gigabit portanddual SFP fiber uplinks, providinginvestment protectionfornext-generation high-power applications
Industrial-Grade Reliability
IP40 metal housingwithfanless designand-40°C to 80°C operating rangeensures99.99% uptimein harsh environments, validated in200+ industrial installations
Advanced Power Protection
48-57V DC redundant powerwithreverse polarity protectionguaranteesstable operationduringpower fluctuationsandelectrical anomalies
Easy Deployment & Maintenance
DIN-rail mountingandcompact designenableinstallation within 15 minutes, whileplug-and-play operationeliminatescomplex configuration
Universal Compatibility
Supportsfull IEEE 802.3af/at/bt standards, ensuringseamless integrationwithexisting PoE infrastructureandlegacy devices
Proven Field Performance
Deployed insurveillance,digital signage, andindustrial automationwith<0.1% failure rateover 3 years of continuous operation
Cost-Effective Solution
Eliminates need forseparate power suppliesandadditional wiring, reducingtotal installation costsby50%compared to traditional power delivery methods
PD PoE Switch Technical IndexesEthernetStandards:IEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3x Full-Duplex Flow ControlIEEE 802.3az Energy Efficient Ethernet (EEE)IEEE 802.3bt 4-pair Power over EthernetIEEE 802.3at Power over Ethernet Plus PSEIEEE 802.3af Power over Ethernet PlusForward & FilteringRate:14,880pps (10Mbps)148,800pps (100Mbps)1,488,000pps (1000Mbps)Packet Buffer:2MbitsPacket Length:9KbytesMAC Address Table:4KSwitch Fabric:14Gbps/non-blockingExchange Property
Backplane bandwidth: 14Gbps;
Packet forwarding rate: 10.42Mpps
Connector:4 ports with PoE+ injector function (Ports 1 to 4)Network Cables
Twisted-pair:
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module)
100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module)
9/125μm single-mode cable for 20/40/60/120km (vary on SFP module)
InterfaceConnector:5 x RJ45 (1-Port PoE In, 4-Port PoE Out)Optical Port:2 x SFP 1000Base-Xor 100Base-FX (auto detection)PoE (Power over Pin Assignment:
Pair 1 End-span: 1/2(+), 3/6(-)
Pair 2 Mid-span: 4/5(+), 7/8(-)
802.3bt/PoH: 1/2(+), 3/6(-), 4/5(+), 7/8(-)
PoE Budget:
Up to 360-watt PoE budget (48-57V DC Input)
Up to 71-watt PoE budget (IEEE802.3bt PoE IN)
EnvironmentalOperating Temperature:-40°C to 80°C (-40°F to 176°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F)Relative Humidity:5% to 95% non-condensingMTBF> 200,000 hrsElectrical and MechanicalInput Power:48~57VDC (Terminal Block) or IEEE802.3bt PoE INPower Consumption:382W Max. (PoE in use)<5W(PoE not in use)Power Input Overload:Automatic ResettableReverse Polarity:PresentDimensions (LxWxH):95 x 70x 46mmWeight:300gCasing:Aluminum CaseMounting Options:DIN-RailLED StatusFX1/FX2:SFP Fiber Link StatusRegulatory ApprovalsISO9001, CE, FCC, RoHSEN55022:2010+AC: 2011, Class AEN 61000-3-2: 2006+A1: 2009+A2: 2009EN 61000-3-3: 2013EN55032:2017IEC 61000-4-2: 2008 (ESD)IEC 61000-4-3: 2010 (RS)IEC 61000-4-4: 2012 (EFT)IEC 61000-4-5: 2014 (Surge)IEC 61000-4-6: 2013 (CS)IEC 61000-4-8: 2009 (PFMF)PD PoE Switch Ordering 90W PoE Fiber Switch IEEE802.3bt, 1-Port PoE Passthrough / 4-Port 10/100/1000Mbps RJ45 PoE++ and 2-Port 100/1000X SFP Gigabit PD PoE SwitchSFP Options► SFP option. Please select your SFP on our SFP Options Page(Industrial SFP).► SFP module is to be purchased separately.Mounting Options► Default DIN-Rail Bracket installed.Power Options► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.► Power Supply is to be purchased usPaymentWe accept
