NEW Dell EMC PowerSwitch N3248TE-ON 48x 1GbE RJ45 4x SFP+ 2x QSFP28 RA Switch OS10Model:N3248TE-ON
NEWRear to Front Airflow

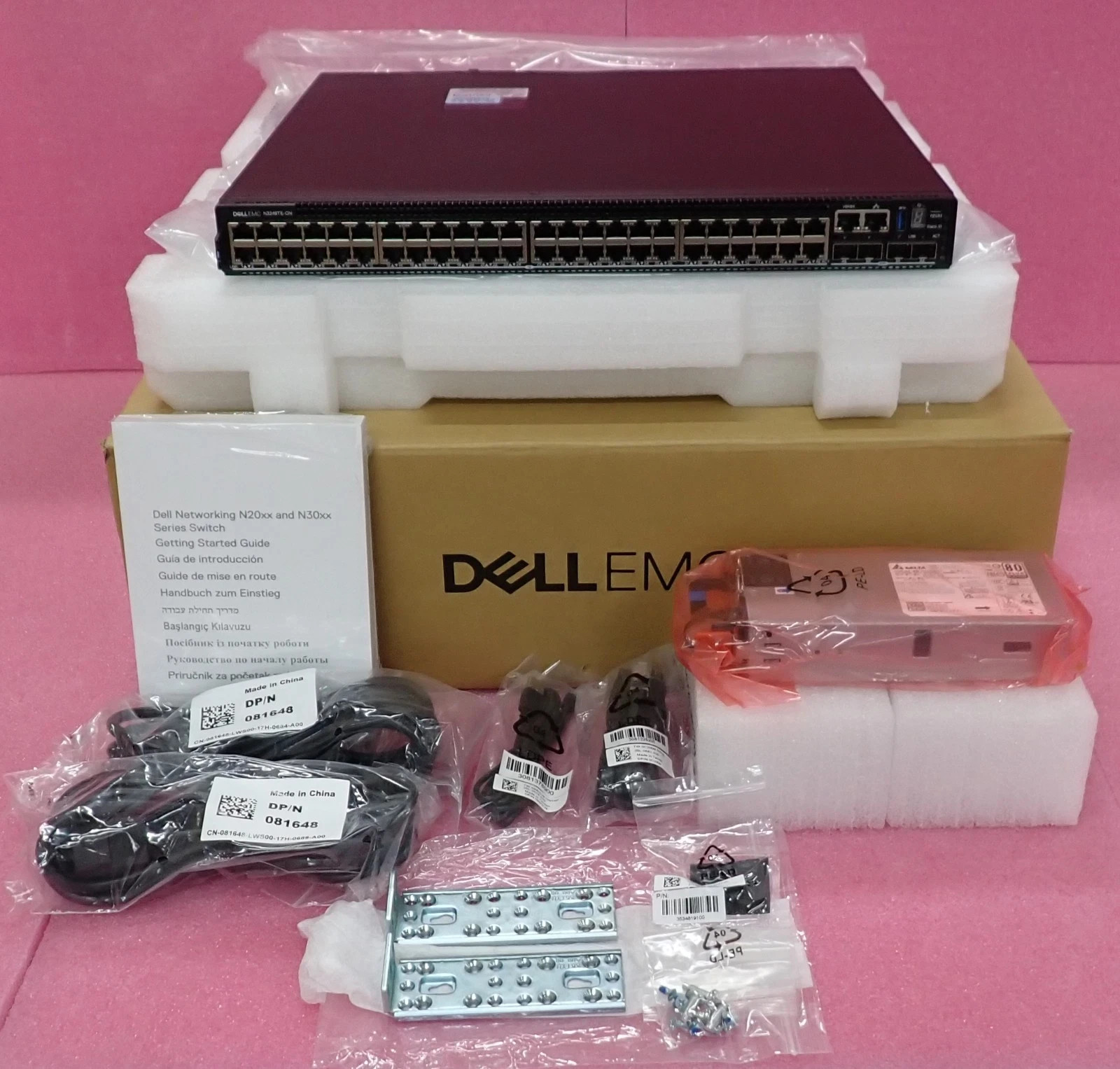

OS10 Enterprise Perpetual Pre-InstalledIncluded:
- 1 x NEW Dell EMC PowerSwitch N3248TE-ON 48x 1GbE 4x 10G SFP+ 2x 100G QSFP28 Switch OS10
- 2 x Power Supply (PSU to IO)
- 3 x Fan Modules (PSU to IO)
- 1 x Set Of Rack Ears
- 2 x Power Cables
- 1 x Dell USB 2.0 Type A to Micro USB Type B Console Cable
- 1 x Dell DB9 9-Pin Serial to RJ45 Console Cable
- 1 x Getting Started Guide
Description:
The N3248TE-ON offers power-efficient and resilient 1GbEswitching solution for advanced Layer 3 distribution withintegrated 10GbE SFP+ and 100GbE QSFP28 ports. TheN3248TE-ON has high-performance capabilities and wirespeed performance utilizing a non-blocking architecture toeasily handle unexpected traffic loads. Use dual internalhot-swappable 80PLUS Platinum certified power suppliesfor high availability and power efficiency.
Hardware, performance and efficiency
- 1RU switch with 48 line-rate RJ45 1GbE ports, and fourintegrated 10GbE SFP+ ports.
- Two 100GbE QSFP28 integrated rear ports.
- Add a second 80PLUS Platinum certified hotswappable internal power supply.
- Variable speed fan operation helps decrease coolingand power costs.
- Energy-efficient Ethernet and lower power PHYsreduce power to inactive ports and idle links, providingenergy savings from the power cord to the port.
- Dell Fresh Air compliance for operation in environmentsup to 113°F (45°C) reduces cooling costs.
Hardware specificationsPhysical
- 48 RJ45 ports of 1G, 4 SFP+ ports of 10Gand 2 QSFP28 ports of 100G
- Out-of-band management port(10/100/1000BASE-T)
- USB (Type A) port for configuration via USBflash drive
- MicroUSB (Type B) console port (MicroUSB toUSB connector cable included)
- RJ45 console port with RS232 signaling(RJ-45 to female DB-9 connector cableincluded)
- Auto-negotiation for speed and flow controlAuto-MDI/MDIX, port mirroring
- Flow-based port mirroring
- Broadcast storm control
- Energy-Efficient Ethernet per port settings
- Redundant variable speed fans
- Air flow: Normal or Reverse
- Power supply:550W 80PLUS. Optional 2nd PSUfor reduncancy.
- Dual firmware images on-board
- Switching engine model: Store and forward
Chassis
- Size (1RU, H x W x D):1.71 in x 17.09 in x 15.75 in (power supply/fan tray handle adds add’l 1.18 in)
- Approximate weight(Switch with 1 PSU rack mounting kit
Environmental
- Power supply efficiency:88% or better in all operating modes
- Max. thermal output (BTU/hr):723
- Power consumption max (watts):212
- Operating temperature: 32° to 113°F(0° to 45°C)
- Operating relative humidity: 95%
- Storage temperature: –40° to 158°F(–40° to 70°C)
- Storage relative humidity: 95%
Performance
- CPU memory: 4GB
- SSD: 32GB
- Packet buffer memory: 8MB
- Switch fabric capacity rate:800Mpps
- Line-rate Layer 2 switching: All (non-blocking)
- Line-rate Layer 3 routing: All (non-blocking)
Boot Log:
OS10#show version
Dell EMC Networking OS10 Enterprise
Copyright (c) 1999-2021 by Dell Inc. All Rights Reserved.
OS Version: 10.5.3.2
Build Version: 10.5.3.2.89
Build Time: 2021-12-03T21:05:43+0000
System Type: N3248TE-ON
Architecture: x86_64
Up Time: 00:04:38
OS10#show inventory
Product: N3248TE-ON
Description: N3248TE-ON 48x1GbE Copper, 4x10G SFP+ Interface Module
Software version: 10.5.3.2
Product Base:
Product Serial Number :
Product Part Number:Unit TypePart NumberRevPiece Part IDSvc TagExprs Svc 686 700 license statusSystem Name:Dell EMC
Product Name:N3248TE-ON
Hardware Version:A02
Platform Tag:J3GWV43
Product Base:
Product Serial Number:
Product Part Number:
License Type:PERPETUAL
License Duration:Unlimited
License Status:Active
