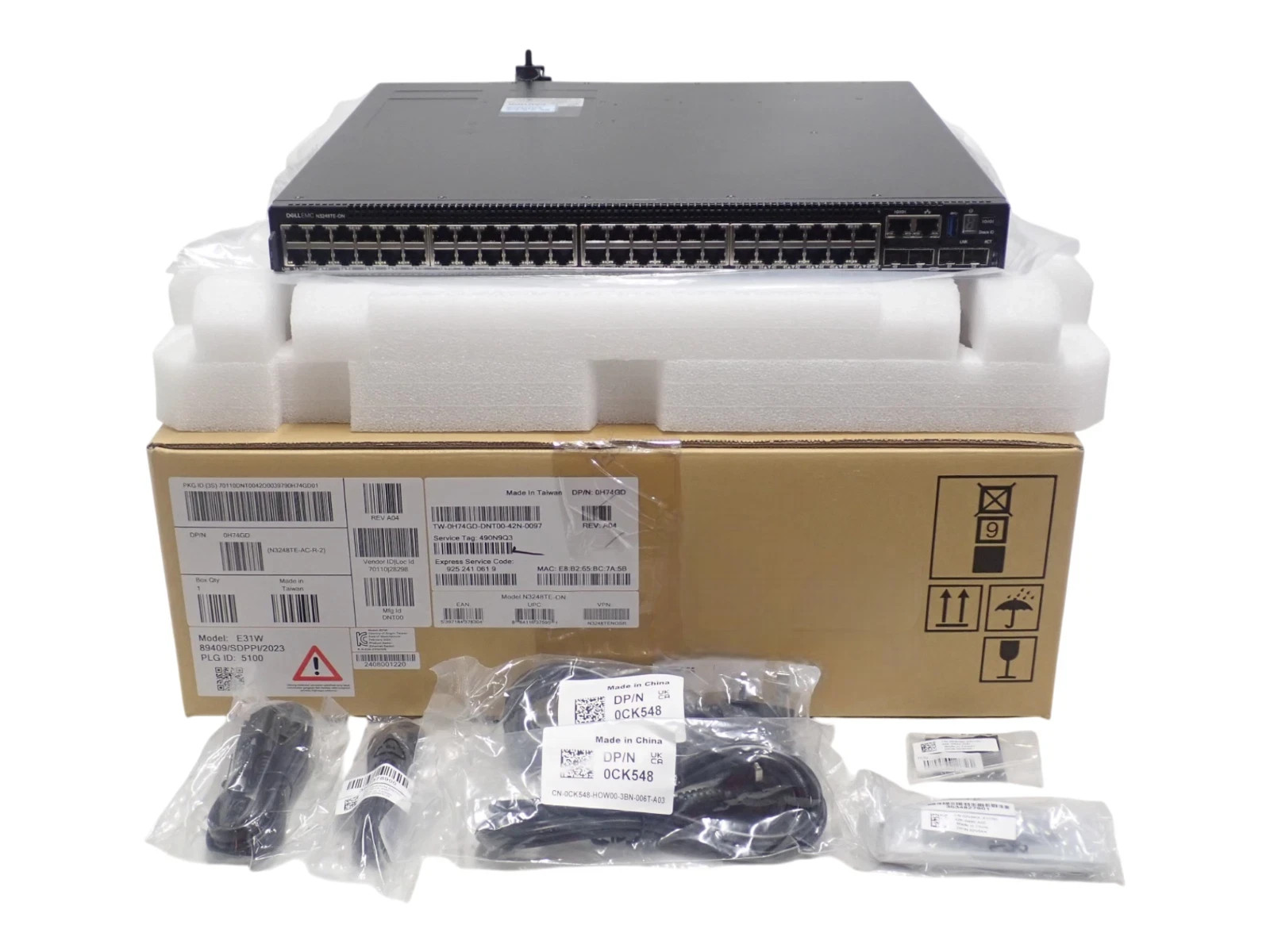

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship NEW Dell EMC PowerSwitch N3248TE-ON 48x 1GbE RJ45 4x SFP+ 2x QSFP28 Network Switch ONIE What's Included 1 xNEW Dell EMC PowerSwitch N3248TE-ON 48x 1GbE RJ45 4x SFP+ 2x QSFP28 Network Switch ONIE -New Open Box
Specification Delivery Returns
ONIE Pre-Installed – No Operating System
The system is supplied with ONIE (Open Network Install Environment) pre-installed, but no operating system is installed.
We can supply the system with OPX, if you require OPX please contact us immediately after placing your order
The N3248TE-ON offers power-efficient and resilient 1GbE switching solution for advanced Layer 3 distribution with integrated 10GbE SFP+ and 100GbE QSFP28 ports. The N3248TE-ON has high-performance capabilities and wirespeed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS Platinum certified power supplies for high availability and power efficiency.
Hardware, performance and efficiency
1RU switch with 48 line-rate RJ45 1GbE ports, and four integrated 10GbE SFP+ ports.
Two 100GbE QSFP28 integrated rear ports.
Add a second 80PLUS Platinum certified hot swappable internal power supply.
Variable speed fan operation helps decrease cooling and power costs.
Energy-efficient Ethernet and lower power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port.
Dell Fresh Air compliance for operation in environments up to 113°F (45°C) reduces cooling costs.
Hardware specifications
Physical
- 48 RJ45 ports of 1G, 4 SFP+ ports of 10G and 2 QSFP28 ports of 100G
- Out-of-band management port (10/100/1000BASE-T)
- USB (Type A) port for configuration via USB flash drive
- MicroUSB (Type B) console port (MicroUSB to USB connector cable included)
- RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included)
- Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring
- Flow-based port mirroring
- Broadcast storm control
- Energy-Efficient Ethernet per port settings
- Redundant variable speed fans
- Air flow: Normal or Reverse
- Power supply: 550W 80PLUS. Optional 2nd PSU for reduncancy.
- Dual firmware images on-board
- Switching engine model: Store and forward
Chassis
- Size (1RU, H x W x D): 1.71 in x 17.09 in x 15.75 in (power supply/ fan tray handle adds add’l 1.18 in)
- Approximate weight (Switch with 1 PSU installed): 15.4lbs/6.99kg
- 2-post rack mounting kit
Environmental
- Power supply efficiency: 88% or better in all operating modes
- Max. thermal output (BTU/hr): 723
- Power consumption max (watts): 212
- Operating temperature: 32° to 113°F (0° to 45°C)
- Operating relative humidity: 95%
- Storage temperature: –40° to 158°F (–40° to 70°C)
- Storage relative humidity: 95%
Performance
- CPU memory: 4GB
- SSD: 32GB
- Packet buffer memory: 8MB
- Switch fabric capacity (full-duplex): 576Gbps
- Forwarding rate: 800Mpps
- Line-rate Layer 2 switching: All (non-blocking)
- Line-rate Layer 3 routing: All (non-blocking)
