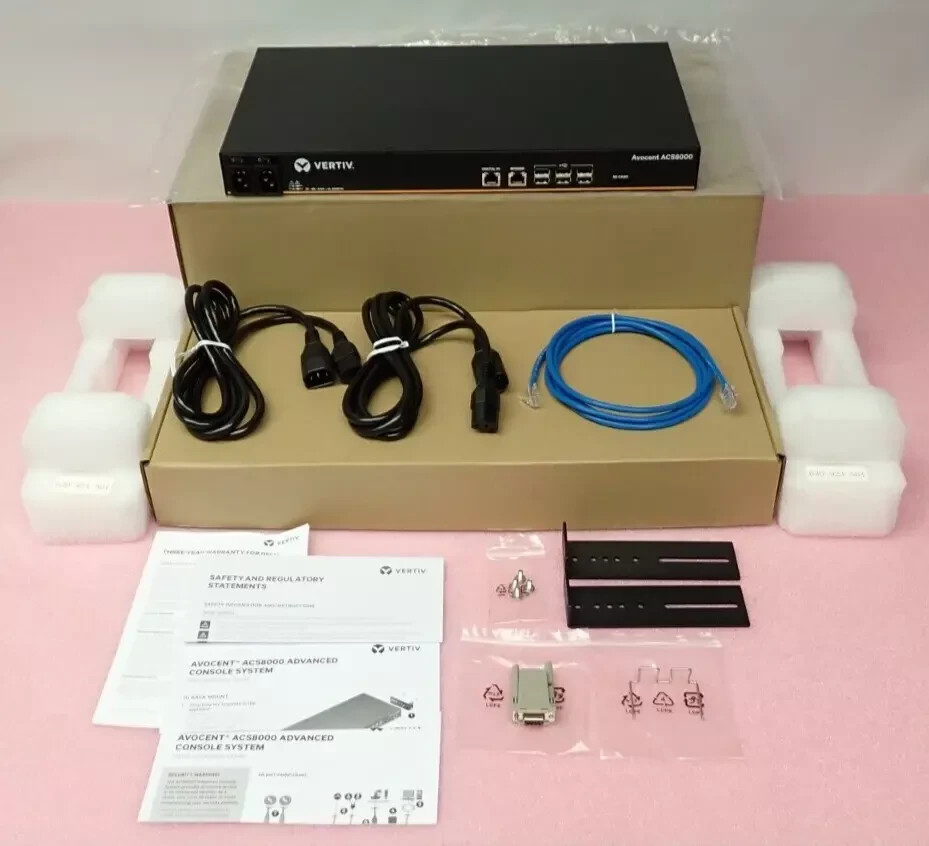

NEW Vertiv Avocent ACS8000 16-Port Console Server DAC Dual PSU factory sealed - the one shown in the photo is one we opened for photos, the one you will receive will be new factory sealed

Includes:

• 1 xNEW Vertiv Avocent ACS8000 16-Port Console Server DAC Dual PSU ACS8016DAC

Description:
The Avocent ACS8000 advanced console server series continues the long runningsuccess story with a new, ground-up platform of innovation, integrating important newconnectivity features such as cellular, gigabit fiber, USB and sensors. IT professionals andnetwork operations center (NOC) personnel can now harness these new capabilities tofurther enable them to perform secure, remote data center management and out-ofband management of IT assets from anywhere in the world. Featuring a dual-core ARMprocessor architecture with expanded memory capabilities, the updated Linux operatingsystem and DSView management software, provides the Avocent ACS8000 optimalperformance, security, reliability for a complete out-of-band management console and power management

Server and network management

Secure access to test and developmentlab environments

Telco central office and remote details

• Zero Touch Provisioning (ZTP): Yes
• Web-based management: Yes
• Temperature sensor: Yes
• Product colour: Black
• Rack mounting: Yes
• Internal modem: No
• Event logging: Yes

Management features

• Management protocols: CLI, HTTP/ HTTPS, SNMP

Security

• One-time password (OTP): Yes
• Security algorithms: 3DES,128-bit AES,192-bit AES,256-bit AES,AES,FIPS address filtering: Yes
• Authentication method: LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)

Ports & interfaces

• SFP module slots quantity: 2
• USB 2.0 ports quantity: 8
• Serial ports quantity: 16
• Ethernet LAN (RJ-45) ports: 2
• Console port: RJ-45
• AC outlet types: C13 system installed: Embedded family: ARM Cortex-A9
• Processor architecture: ARM Cortex-A9
• Processor cores: 2
• Processor frequency: 667 MHz

Memory

• RAM type: DDR3L
• RAM capacity: 1024 MB
• eMMC capacity: 16 GB
• Internal memory: 1024 MB
• Flash memory: 16000 MB

Weight & dimensions

• Weight: 3.4 kg
• Dimensions (WxDxH): 438.2 x 241.3 x 44.5 mm

Power

• Power consumption (max): 35 W
• Power source type: AC
• AC input voltage: 100 – 240 V
• AC input frequency: 50 – 60 Hz
• Power consumption (typical): 20 W
• Number of power supply units: 2
• Input current: 0.1 A

Operational conditions

• Storage temperature (T-T): -20 – 70 °C
• Storage relative humidity (H-H): 5 – 95%
• Operating temperature (T-T): -10 – 60 °C
• Operating relative humidity (H-H): 20 – 80%

Network

• Copper ethernet cabling technology: types supported: Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Other features

• Safety: UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
