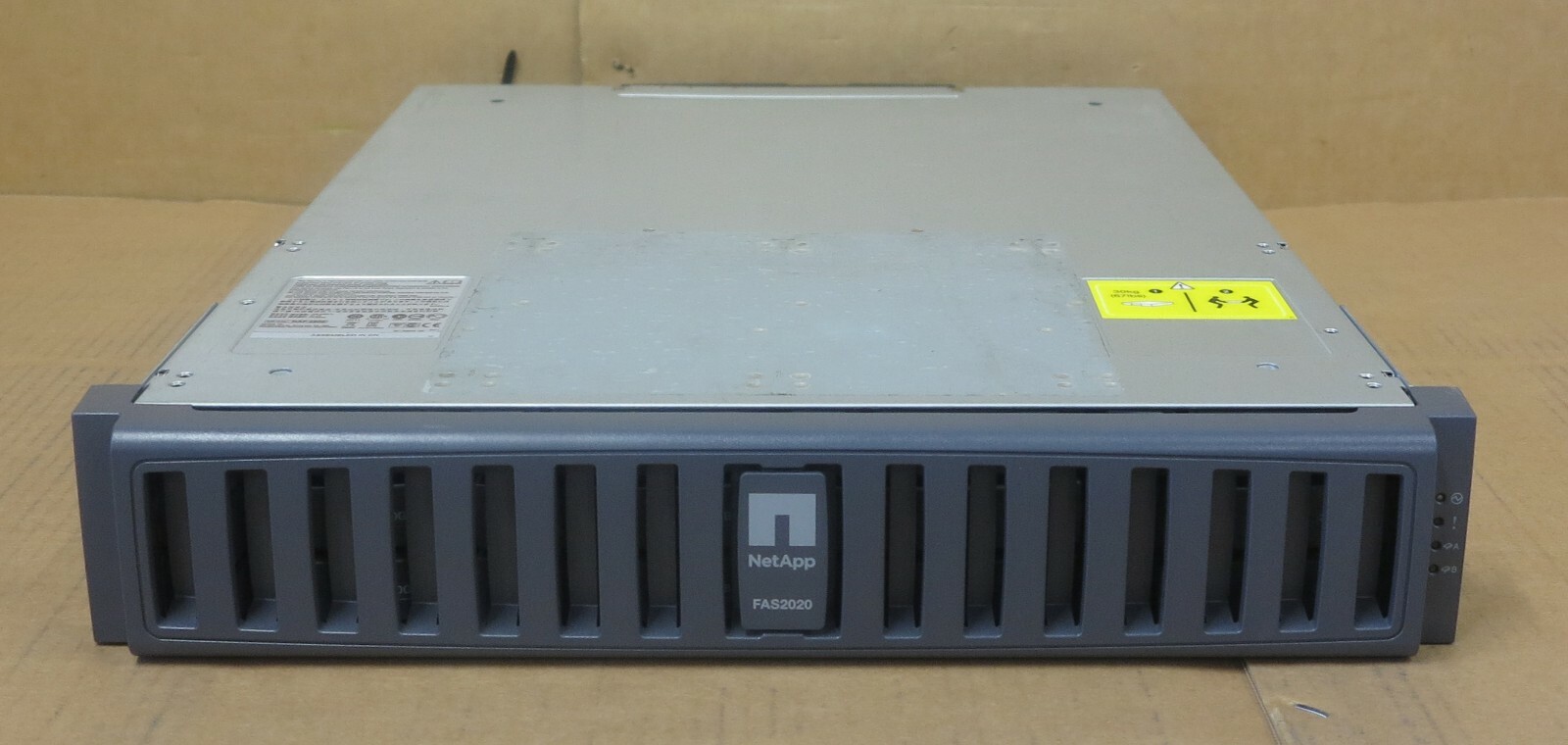

NetApp FAS2020 Filer iSCSI Storage Array ShelfModel: FAS2020Model No: NAF-0602
In Good Condition,Full Working OrderTested2 Years Warranty
Running NetApp Release 7.3.6
Includes:
- 1 x NetApp FAS2020 Filer iSCSI 2U Storage Array Shelf
- 4 x 300GB 3.5" SAS 6Gb/s 15K HDD - X287A-R5 / SP-287A-R5 / 108-00166+D1
- 1 x NetApp Controller Module - 111-00449+A0
- 1 x NetApp Cpntroller Module - 111-00237+G0
- 2 x 675W Power Supply - YM-2751A / CP-1103R2
- 1 x Front Bezel
Boot Log:
*> sysconfig -v
NetAppRelease 7.3.6: Thu Jul 7 02:02:45 PDT2011
System ID: 0135097684 (); partner ID:0142235002 ()
System Serial Number: 700000389024 ()
System Rev: A0
SystemStorage Configuration: Single-Path HA
System ACPConnectivity: NA
slot 0:System Board 2198 MHz (System Board XIV G1)
Model Name: FAS2020
Part Number: 110-00049
Revision: G1
Serial Number: 879956
BIOS version: 3.0
Processors: 1
Memory Size: 1024 MB
NVMEM Size: 128 MB of MainMemory Used
CMOS RAM Status: OK
Controller: A
slot 0:Dual 10/100/1000 Ethernet Controller G20
e0aMAC Address: e0bMAC Address: Device Type: Rev 6
slot 0:Interconnect HBA: Mellanox IB MT25204
GUID: 0x2c90287995600 LID:0x6d54 Remote LID: 0x957a
Firmware rev: 1.0.800
Hardware rev: 160
Command rev: 1
slot 0: FCHost Adapter 0a (QLogic 2432 rev. 2, L-port, <OFFLINE (hard)>)
Firmware rev: 4.5.2
Host Loop Id: 0
FCNode Name: 5:00a:098000:25c649
SFPVendor: FINISAR CORP.
SFPPart Number: FTLF8524P2BNV
SFPSerial Number: PKB13Q0
SFPCapabilities: 1, 2 or 4 Gbit
Link Data Rate: 1 Gbit
slot 0:Fibre Channel Target Host Adapter 0b
(Dual-channel, QLogic 2432(2462) rev. 2, 64-bit, <UNINITIALIZED>)
Firmware rev: 4.5.2
Host Port Addr: 000000
Cacheline size: 16
SRAM parity: Yes
FCNodename: FCPortname: Connection: No link
slot 0: SASHost Adapter 0c (LSI Logic 1068E rev. B2, SAS, <UP>)
Firmware rev: 1.31.02.00
Base WWN:f:080d6d:5400000:00
PhyState: [0] Enabled, 3.0 Gb/s
[1] Enabled,3.0 Gb/s
[2] Enabled,3.0 Gb/s
[3] Enabled,3.0 Gb/s
ID Vendor Model FW Size
00.1 : NETAPP X287_S15K7288A15NA08 272.0GB (573653840 520B/sect)
00.4 : NETAPP X287_S15K7288A15NA08 272.0GB (573653840 520B/sect)
00.5 : NETAPP X287_S15K7288A15NA08 272.0GB (573653840 520B/sect)
00.9 : NETAPP X287_S15K7288A15NA08 272.0GB (573653840 520B/sect)
Shelf 0: ESAS Firmware rev. SAS A: 05 SAS B: 05
slot 0:ATA/IDE Adapter 0e (0x000001f0)
0e.0 STEC NACF256MM1U-B11 01/17/07 245MB 512B/sect(STI1MN7311059203020)
BaseboardManagement Controller:
Firmware Version: 1.3
IPMI version: 2.0
DHCP: on
BMCMAC address: 00:a0:98:24:b7:32
IPaddress: 192.168.70.57
IPmask: 255.255.255.0
Gateway IP address: 192.168.70.1
BMCARP interval: 10 seconds
BMChas (1) user: naroot
ASUP enabled: on
ASUP mailhost: 0.0.0.0
ASUP from:[email removed by ]l
ASUP recipients:[email removed by ]
Uptime: 0 Days,00:52:13*> environment status all
Voltage ok
Temperature ok
Power Supplies OutVoltage ok
Battery ok
Power Supply 1 ok
Power Supply 2 ok
Environmentfor channel 0c
Number ofshelves monitored: 1 enabled: yes
Environmental failure on shelves on this channel? no Channel: 0c
Shelf: 0
SES devicepath: local access: 0c.00.99
Moduletype: ESAS; monitoring is active
Shelfstatus: normal condition
SESConfiguration, shelf 0:
vendoridentification=NETAPP
productidentification=DS12-ESAS
productrevision level=0505
Vendor-specific information:
ProductSerial Number: NTAPLGH-11160D9B1F
Statusreads attempted: 25; failed: 0
Controlwrites attempted: 1; failed: 0
Shelf bayswith disk devices installed:
11, 10,9, 8, 7, 6, 5, 4, 3, 2, 1
witherror: none
PowerSupply installed element list: 1, 2; with error: none
PowerSupply information by element:
[1]Serial number: NTAPDNH-1016NW5302 Partnumber: <N/A>
Type:<N/A>
Firmware version: Y140 Swaps: 0
[2]Serial number: NTAPDNH-1112NW6RRW Partnumber: <N/A>
Type:<N/A>
Firmware version: Y140 Swaps: 0
VoltageSensor installed element list: 1, 2, 3, 4, 5, 6; with error: none
Shelfvoltages by element:
[1]12.120 Volts Normal voltage range
[2] 5.60Volts Normal voltage range
[3] 3.540Volts Normal voltage range
[4]12.160 Volts Normal voltage range
[5] 5.60Volts Normal voltage range
[6] 3.560Volts Normal voltage range
CurrentSensor installed element list: 1, 2, 3, 4; with error: none
Shelfcurrents by element:
[1] 3890mA Normal current range
[2] 180mA Normal current range
[3] 4010mA Normal current range
[4] 130mA Normal current range
CoolingUnit installed element list: 1, 2; with error: none
CoolingUnits by element:
[1] 5580RPM
[2] 5520RPM
TemperatureSensor installed element list: 1, 2, 3, 4; with error: none
Shelftemperatures by element:
[1] 29 C(84 F) Normal temperature range
[2] 30 C(86 F) Normal temperature range
[3] 27 C(80 F) Normal temperature range
[4] 27 C(80 F) Normal temperature range
Temperaturethresholds by element:
[1] Highcritical: 62 C (143 F); high warning 54 C (129 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
[2] Highcritical: 62 C (143 F); high warning 54 C (129 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
[3] Highcritical: 62 C (143 F); high warning 55 C (131 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
[4] Highcritical: 62 C (143 F); high warning 55 C (131 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
ESElectronics installed element list: 1, 2; with error: none
ESElectronics reporting element: 1
SASExpander Module installed element list: 1, 2; with error: none
SASExpander master module: 2 Shelfmapping (shelf-assigned addresses) for channel 0c:
Shelf 0: 1110 9 87 6 54 3 2 1XXX
*> disk show -n
Local System ID: 135097684 DISK OWNER POOL SERIAL NUMBER
------------ ------------- ------------------
0c.00.4 NotOwned NONE 6SJ1GJZ70000N14083JH
0c.00.1 NotOwned NONE 6SJ1GKKH0000N139HLST
0c.00.5 NotOwned NONE 6SJ1GLL20000N14079UP
0c.00.9 NotOwned NONE 6SJ1GJJ70000N13866ZX
*> storage show disk
DISKSHELF BAY SERIALVENDOR MODEL REV
--------------------- --------- ---------------- ------------------ ----
0c.00.10 1 6SJ1GKKH0000N139HLST NETAPP X287_S15K7 NA08
0c.00.40 4 6SJ1GJZ70000N14083JH NETAPP X287_S15K7 NA08
0c.00.50 5 6SJ1GLL20000N14079UP NETAPP X287_S15K7 NA08
0c.00.90 9 6SJ1GJJ70000N13866ZX NETAPP X287_S15K7 NA08
