Product Features • High-speed fiber optic cable
• Available in lengths up to 30m

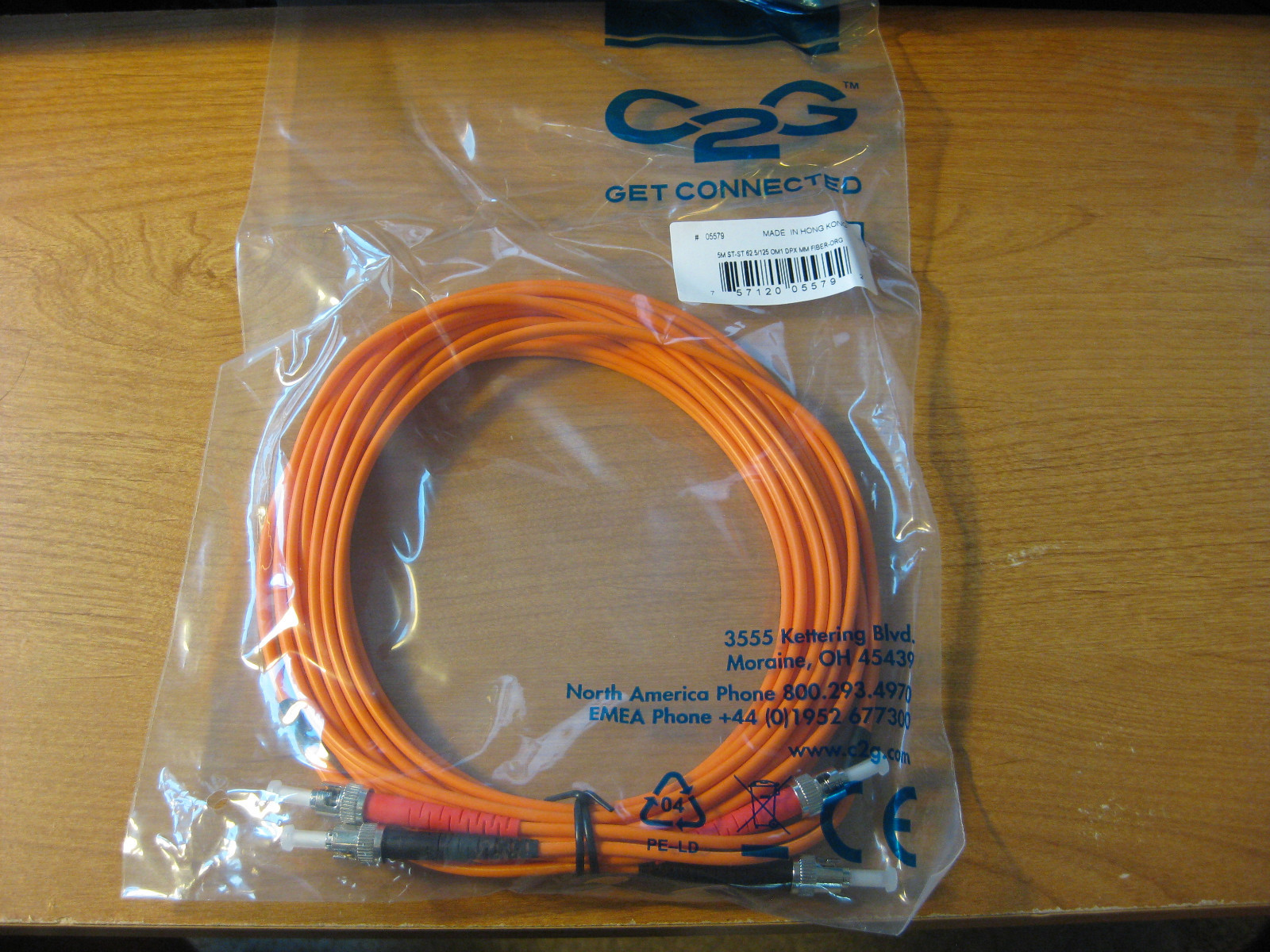

• Metal connectors with bayonet locking system Product Description With ST to ST termination, this high quality fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications. The ST connector features a bayonet locking system.The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference. Product Specifications Color : Orange Length : 5.00 Meter UPC : 757120055815 Warranty : Lifetime Vendor : C2G Weight : 0.270 LB • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm.
• ST Connector Dimensions: 9.8mm Height x 19.6mm Width x 59mm Depth
• Maximum Connector Loss: 0.50 dB
• Typical Connector Loss: 0.30 dB
• Typical Return Loss: -25 dB
• Buffer Material: PVC
• Buffer OD: 900 µm
• Jacket Material: PVC (OFNR riser-rated)
• Jacket OD: 2.8 mm
• Installation Tensile Load: 100 N (445 lbs)
• Long-Term Tensile Load: 50 N (222 lbs)
• Maximum Tensile Load: 100 N/cm
• Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
• Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
• Crush Resistance: 750 N/cm
• Impact Resistance: 1,000 cycles
• Flex Resistance: 5,000 cycles
• Attenuation at 1300 nm: 1.0 dB/km
• Attenuation at 850 nm: 3.5 dB/km
• Operating Temperature: -20°C to +70°C
Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
