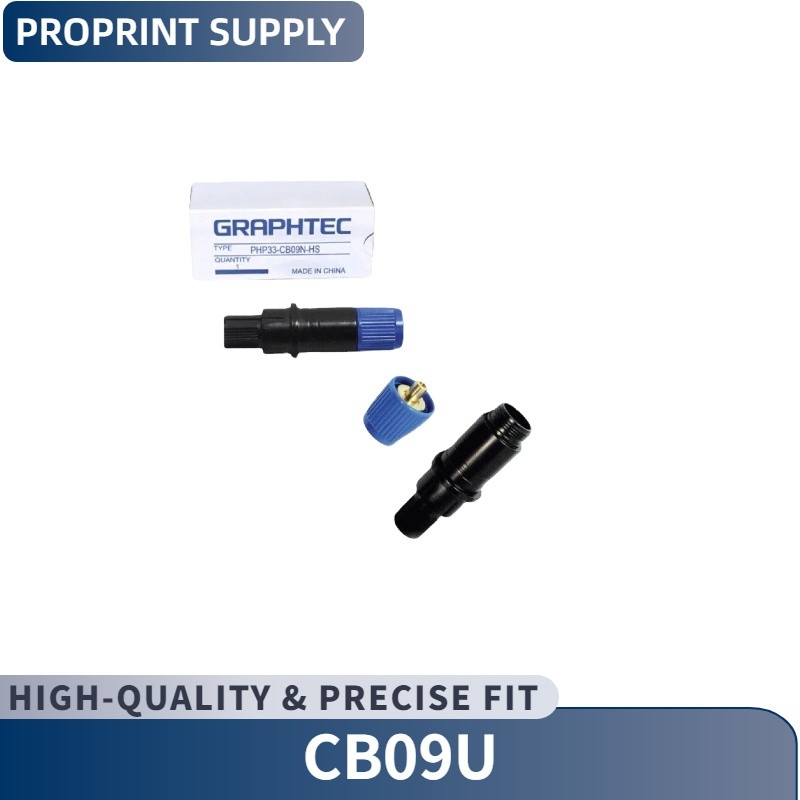

1PC New Original Graphtec PHP33-CB09N-HS Blade Holder | CB09U Spring-Built for CB09UB CE6000 FC8600 FCX4000 🛠️ 100% New Original Graphtec | PHP33-CB09N-HS (CB09U) | Spring-Built Blade Holder | for CB09UB (No Spring) Blades

Product Name : Graphtec PHP33-CB09N-HS Cutter / Blade Holder

Part Number : PHP33-CB09N-HS (CB09U Series)

Condition : Brand New, Original OEM, Factory Packaged

Packing Qty : 1PC

Core Feature : Integrated Spring | For 0.9mm CB09UB (No Spring) Blades | Precision Depth Control

Primary Use : Vinyl, Decal, Window Tint, Thin Film Cutting

ℹ️ OEM PART NOTE: PHP33-CB09N-HS is Graphtec’s genuine spring-built blade holder for 0.9mm CB09UB / CB09UB-K60 (no spring) blades. Do NOT use with CB09UA (with spring) blades—remove the blade spring before installation if using CB09UA{insert\_element\_0\_}. This holder is factory-calibrated for consistent pressure, eliminating blade wobble, uneven cuts, and depth drift. Blade is NOT included—sold as 1PC holder only. 1PC New Original Graphtec PHP33-CB09N-HS (CB09U) Blade Holder – Spring-Built for CB09UB Blades

This 1PC new original Graphtec PHP33-CB09N-HS blade holder is the OEM 0.9mm cutting tool carrier for Graphtec CE/FC/FCX series plotters. Featuring a factory-integrated spring, it delivers constant, uniform downforce for clean, precise cuts on vinyl, decals, window tint, and thin films—critical for sign shops, wrap installers, and packaging converters. A worn or non-OEM holder causes blade chatter, inconsistent depth, partial cuts, edge fraying, and premature blade wear—leading to material waste, rework, and missed deadlines.

As a genuine Graphtec part, this holder is engineered with precision-machined brass tip, rigid ABS body, and calibrated spring tension to match CB09UB (no spring) blades perfectly{insert\_element\_1\_}. Unlike generic plastic holders, it ensures zero blade wobble, repeatable depth adjustment, and smooth carriage movement—even in high-speed production. The twist-lock mechanism allows tool-free blade changes and fine depth tuning, reducing downtime and ensuring consistent results across batches. Whether cutting intricate decals or large-format wraps, this OEM holder restores factory cutting performance and reliability.

📋 Core Specifications

Brand : 100% New Original Graphtec ®

OEM Part No. : PHP33-CB09N-HS (CB09U Spring-Built Type)

Blade Compatibility : 0.9mm CB09UB, CB09UB-K60 (no spring); CB09UA (spring to be removed)

Blade Size : 0.9mm Shank (Standard CB09 Series)

Construction : Rigid ABS Body + Precision Brass Tip + Calibrated Internal Spring

Operation : Twist-Lock Depth Adjustment | Tool-Free Blade Change

Condition : Brand New, Unused, Factory Sealed

Packaging : Graphtec Original Polybag with Label

🔌 Compatible Graphtec Plotter Series

• CE5000 / CE6000 / CE6000 Plus
• CE7000 / CE8000
• FC8000 / FC8600
• FC2250 / FC4500
• FCX2000 / FCX4000 (Flatbed)

⚠️ COMPATIBILITY RULE: Use only with CB09UB (no spring) blades (recommended). If using CB09UA, REMOVE THE BLADE SPRING FIRST—double spring causes over-pressure, blade damage, and cut errors{insert\_element\_2\_}. Blade NOT included.

🔧 Quick Installation & Setup (No Tools Required)

⚠️ SAFETY FIRST: POWER OFF PLOTTER | UNPLUG AC CORD | Retract Blade Fully Before Handling to Prevent Injury!

1. Power off the plotter and unplug the AC cord. Move the carriage to the center for easy access.
2. Prepare your blade: For CB09UB – use as-is (no spring). For CB09UA – remove the small coil spring from the blade shank first{insert\_element\_3\_}.
3. Twist the top collar of the PHP33-CB09N-HS holder counterclockwise to loosen the collet.
4. Insert the blade shank fully into the holder, then twist the collar clockwise to lock it lightly (do not over-tighten).
5. Adjust the cutting depth: Twist the collar to extend the blade tip by 0.1–0.2mm beyond the holder tip (visible only as a tiny point).
6. Insert the holder into the carriage tool slot until it clicks into place. Secure with the carriage’s retaining clip.
7. Load scrap material (same as production) and run a small test cut (e.g., 20mm square with inner cross).
8. Check the cut: Edges should be clean, no fraying, and the liner should not be cut through. Fine-tune the depth as needed.
9. Once set, lock the collar with a light twist and mark the depth setting for future reference.

💡 PRO TIP: For window tint or thin films, use a CB09UB-K60 blade with this holder for sharper, cleaner cuts and extended blade life. Replace the holder if the tip is worn or the spring loses tension.

📦 Package Contents

✔ 1 x New Original Graphtec PHP33-CB09N-HS Blade Holder (CB09U, Spring-Built)
• ✖ Blade (CB09UB/CB09UA) – Sold Separately

🏢 Purchase Information

• 100% Graphtec Genuine : PHP33-CB09N-HS OEM holder – calibrated spring tension, brass tip, and perfect fit for CE/FC/FCX series.
• Spring-Built for CB09UB : Optimized for 0.9mm no-spring blades; eliminates double-spring over-pressure and cut errors.
• Restores Cutting Precision : Stops blade wobble, depth drift, and partial cuts – delivers clean edges on vinyl, decals, and window tint.
• Tool-Free Operation : Twist-lock depth adjustment for quick blade changes and fine tuning – reduces downtime in high-volume shops.
• In Stock : 1PC ready to ship. MOQ = 1PC. Bulk discounts for sign shops, wrap installers, and service centers.
