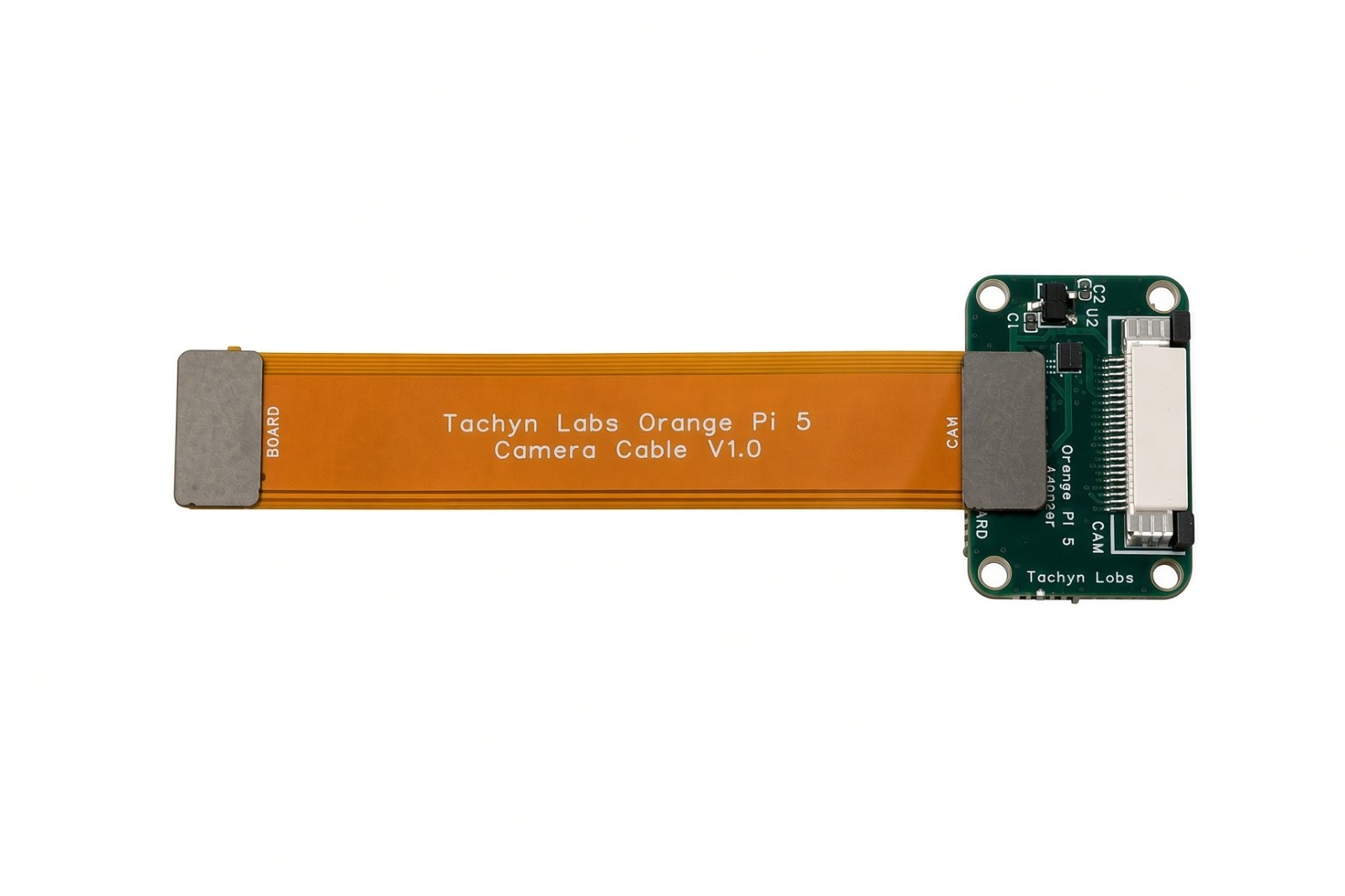

Orange Pi 5 Camera Adapter - Compatible with Raspberry Pi Cameras

Price: US $20.00

Orange Pi 5-Series Camera Adapter (CSI to Raspberry Pi 5-Style 22-Pin)

This adapter board remaps the Orange Pi 5-series 30-pin, 1.8V CSI mezzanine connector to a Raspberry Pi 5-style 22-pin camera FPC connector. It includes onboard I2C level shifting between the Orange Pi's 1.8V bus and the 3.3V bus used by Raspberry Pi camera modules. This is a pinout-remap and voltage-translation adapter — it is not a camera module, and it is not a simple 15-to-22 pin ribbon cable.

What's included

1x adapter board (I2C level shifter, CSI-to-22-pin remap)
1x Orange Pi-side FPC cable (30-pin, connects the board to your Orange Pi)

Compatible boards BoardStatus Orange Pi 5Compatible Orange Pi 5BCompatible Orange Pi 5 PlusCompatible Orange Pi 5 MaxCompatible Orange Pi 5 ProCompatible Orange Pi 5 UltraCompatible Orange Pi AI Pro, RV2, 4A, 6Electrically compatible, untested

If your board isn't listed above, please message us to confirm the CSI connector before ordering.

Compatible cameras SensorStatusNotes OV5647TestedConfirmed working on Joshua Riek Ubuntu and Armbian IMX219TestedConfirmed working on Joshua Riek Ubuntu and Armbian IMX708TestedConfirmed working on Joshua Riek Ubuntu and Armbian IMX477Not testedElectrically compatible IMX519TestedConfirmed working on Joshua Riek Ubuntu and Armbian

15-pin Raspberry Pi camera modules need their own 15-to-22 pin cable (sold separately by the camera manufacturer) in addition to this adapter.

Setup notes

Orientation warning: contacts on the camera ribbon must face UP into the camera module's connector. Reversed orientation is the most common cause of a "camera not detected" issue.
OS/driver caveat: camera support depends on your Orange Pi OS image and kernel/driver version. We've tested with Joshua Riek's Ubuntu builds and Armbian. Other images (including stock manufacturer images) may need a different config or may not support a given sensor at all — check your OS's camera driver documentation before buying if you're unsure.
You will need your own standard 22-pin Raspberry Pi camera ribbon cable to go from this adapter to your camera module.

What's not included
