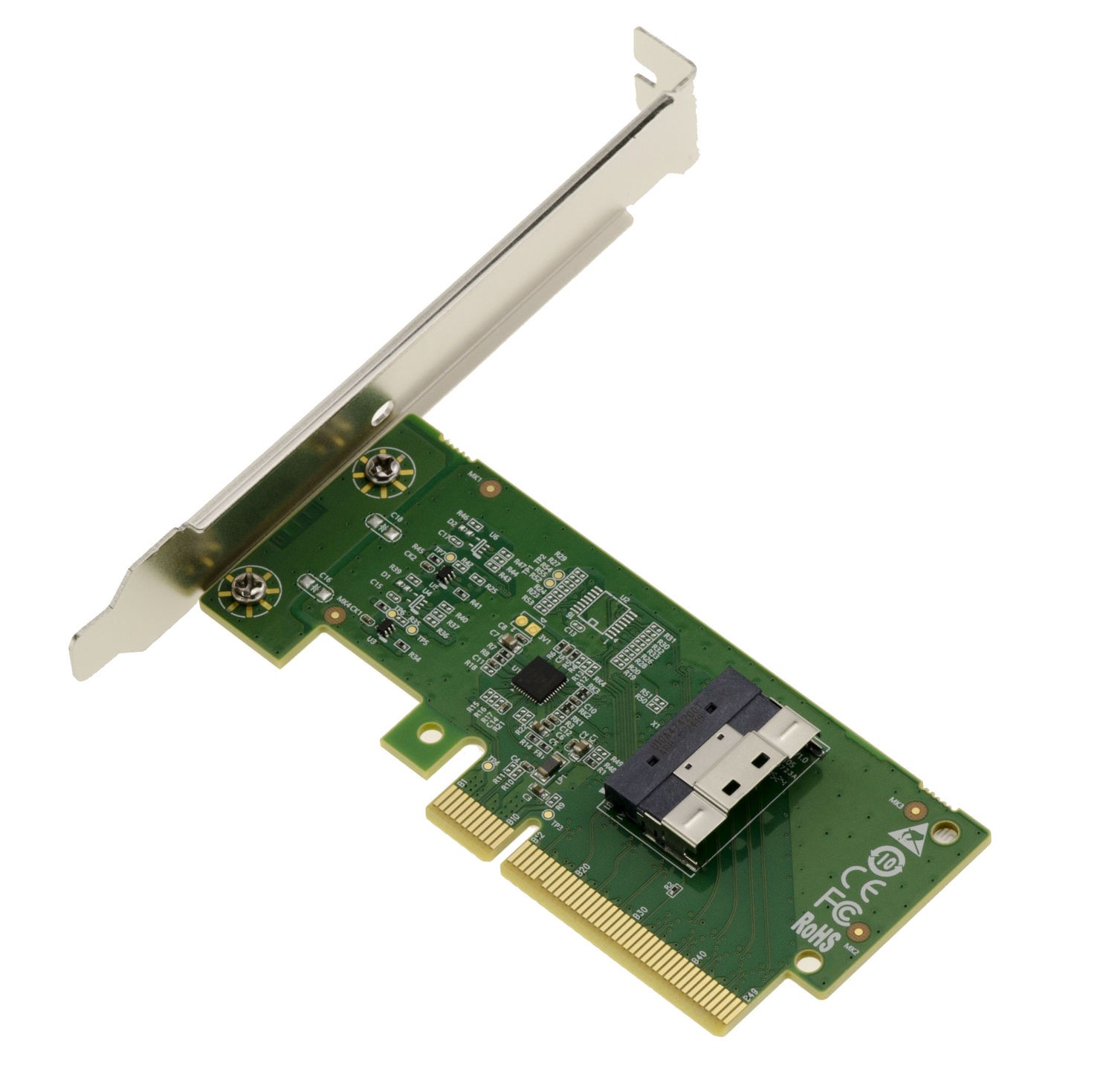

High performance low dielectric loss interface conversion board. For NVMe SSD or PCIe connectors via 74-pin SlimSAS (SFF-8654) connector. Supports up to 2 PCIe or NVMe SSD devices.
Compatibility:
The adapter does not require a driver for operation or communication with connected NVMe drives. The drives are presented natively to the host and use native NVMe drivers.
Compatible with Windows, Mac, Linux, DOS....
Features :
PCIe 4.0 x8 type card.
Compatible with PCIe Gen4, Gen3, Gen2, Gen1.
Card bandwidth is the bandwidth that the motherboard's PCIe slot can support.
A SlimSAS SFF-8654 connector (74 Pin, x8 PCIe Gen 4).
Supports up to 2 PCIe or NVMe SSD devices if supported by motherboard from bifurcation (x8) to 2x (x4) mode.
Support for a single NVMe or PCIe device if bifurcation mode is not supported.
Direct connection to NVMe U2 or U3 SSD via SlimSAS 8654 (8i) to SFF-8639 cable.
Operating temperature 5 to 50°C.
Dimensions 102mm x 45mm, weight 50g.
Card Supplied with High and Low profile brackets.
High performance low dielectric loss interface conversion board. For NVMe SSD or PCIe connectors via 74-pin SlimSAS (SFF-8654) connector. Supports up to 2 PCIe or NVMe SSD devices. The adapter does not require a driver for operation or communication with connected NVMe drives. The drives are presented natively to the host and use native NVMe drivers. Card bandwidth is the bandwidth that the motherboard's PCIe slot can support. A SlimSAS SFF-8654 connector (74 Pin, x8 PCIe Gen 4). Supports up to 2 PCIe or NVMe SSD devices if supported by motherboard from bifurcation (x8) to 2x (x4) mode. Support for a single NVMe or PCIe device if bifurcation mode is not supported. Direct connection to NVMe U2 or U3 SSD via SlimSAS 8654 (8i) to SFF-8639 cable. Card Supplied with High and Low profile bracket Recommended products Provided by PCIe 4.0 Controller Card 2 Ports Slim SAS SFF-8654 8I For NVMe SSD M2 M3 U2 U3 View product KALEA-INFORMATIQUE PCIe 5.0 To 2-Port MCIO 8i Controller Card For NVMe SSD View product PCIe 3.0 16X Controller Card For 4 M.2 NVMe M Key (M2 NGFF). PLX PEX 8747 View product KALEA-INFORMATIQUE PCIe x16 PCIe 3.0 Card for NVMe U.2 SSD or SATA SSD View product KALEA-INFORMATIQUE PCIe 3.0 16x Card for 4 M.2 NVMe SSDs M Key (M2 NGFF) ASM2824 View product KALEA-INFORMATIQUE PCIe Controller For M2 WiFi E Key Card View product PCIE 3.0 SAS SATA 12GB - 8 Internal Ports - OEM 9300-8I - SAS 3008 Fusion View product KALEA-INFORMATIQUE PCIe Gen 4.0 x16 To 4-Port Oculink SFF-8612 SFF-8611 View product
