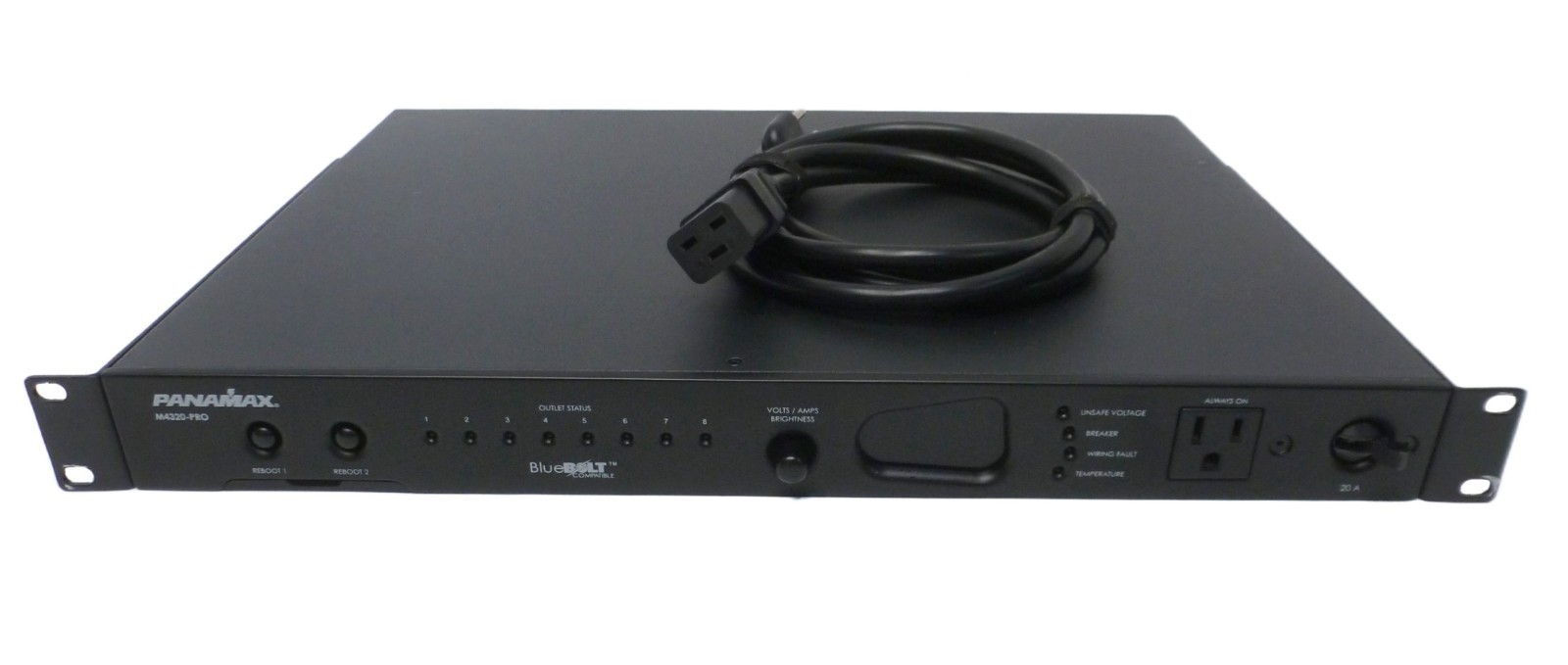

TECHAINIACS TREASURES PANAMAX M4320-PRO 20 Amp Power Management 9-Outlet Power Conditioner with BlueBOLT NEW BLUE LED DISPLAY • BLUEBOLT TESTED • 20 AMP • 2400 WATT ABOUT THIS ITEM
The Panamax M4320-PRO is a professional-grade 20 Amp rack-mount power management and conditioning system designed for home theater, custom AV, network, automation, commercial AV and professional equipment-rack installations.
With a maximum capacity of 20 Amps / 2400 Watts, the M4320-PRO combines Panamax Automatic Voltage Monitoring (AVM), Linear Filtering Technology (LiFT), Protect-or-Disconnect surge protection, isolated outlet banks, programmable power control and BlueBOLT IP network management in a compact 1RU chassis.
The unit provides nine total AC outlets, consisting of eight individually controllable rear-panel outlets plus a front-panel convenience outlet. The rear outlets are organized into four isolated filter banks to help prevent electrical noise generated by one component from contaminating other connected equipment.
NEW BLUE LED DISPLAY:
The original aging front-panel blue LED readout was removed and replaced with a new blue LED display. The new display is bright, clear and easy to read and provides a significant improvement over the dim or deteriorated displays commonly found on older M4320-PRO units.
BLUEBOLT MODULE TESTED & PREPARED FOR NEW OWNER:
The installed BlueBOLT network management module was connected, tested and confirmed operational. The module firmware was upgraded to Version 1.3.059.026.
After testing was completed, the BlueBOLT module was factory reset and the device unregistered so that the new owner can register and configure the M4320-PRO using their own BlueBOLT account.
The chassis was opened and cleaned internally to remove accumulated dust. The complete M4320-PRO and installed BlueBOLT module were then tested and are in good working condition.
Condition: Used in good working condition and very good to virtually excellent cosmetic condition. The unit shows only normal minor evidence of previous use. Please examine all listing photographs for the exact cosmetic condition.
Includes:
- Panamax M4320-PRO 20 Amp Power Management / Power Conditioner
- Includes the original Panamax specialized 20A AC power cord
- Installed BlueBOLT Network Management Module
- Newly Installed Bright Blue LED Front-Panel Display
- Rack-Mount Ears
Unless specifically shown in the listing photographs or stated above, no additional cables, accessories, manuals, network equipment or original packaging are included.
SERVICED, UPDATED & TESTED
- New Bright Blue LED Readout Installed
- Original Aging Display Replaced
- Internal Chassis Cleaned Free of Accumulated Dust
- BlueBOLT Network Module Installed
- BlueBOLT Network Operation Tested
- BlueBOLT Module Confirmed Operational
- Firmware Updated to Version 1.3.059.026
- BlueBOLT Module Factory Reset After Testing
- Device Unregistered from Previous BlueBOLT Account
- Ready for New Owner BlueBOLT Registration
- M4320-PRO Power Management Functions Tested
- Unit Confirmed in Good Working Condition
Key Features
- Professional 20 Amp Power Management
- Maximum 2400 Watt Capacity
- 9 Total AC Outlets
- 8 Individually Controllable Rear-Panel Outlets
- Front-Panel Convenience Outlet
- BlueBOLT TCP/IP Network Management Installed
- Fully Programmable Outlet Control
- Remote Equipment Reboot Capability
- Programmable Power Sequencing
- Automatic Network Device Reboot Capability
- Four Isolated Filter Banks
- Three Isolated LiFT Linear Filter Banks
- One High-Current Isolated Filter Bank
- Panamax Linear Filtering Technology (LiFT)
- Automatic Voltage Monitoring (AVM)
- Protect-or-Disconnect Surge Protection
- 2700 Joule Surge Energy Rating
- 135,000 Amp Peak Impulse Current Rating
- Front-Panel Voltage / Current Display
- New Bright Blue LED Readout Installed
- Front-Panel Circuit Breaker
- 12 Volt Trigger Input
- Gigabit Ethernet / LAN Surge Protection
- Coaxial Cable / Satellite Protection
- Telephone / Communication Line Protection
- 1RU Rack-Mount Design
- Removable Front Rack Ears
- Detachable AC Power Connection
Specifications Specification Details Brand Panamax Model M4320-PRO Product Series PRO Series Product Type Power Management / Line Conditioner UPC 050616008600 Input Voltage 120 VAC Maximum Current Capacity 20 Amps Maximum Load 2400 Watts Total AC Outlets 9 Rear Outlets 8 Individually Controllable / Programmable Front Outlet 1 Convenience AC Outlet Isolated Filter Banks 4 Standard LiFT Banks 3 Isolated Banks High-Current Bank 1 Isolated Bank Standard Bank Filtration 76 dB, 5 kHz – 250 kHz; 46 dB, 250 kHz – 1 MHz High-Current Bank Filtration 60 dB, 5 kHz – 450 kHz; 46 dB, 450 kHz – 1 MHz Network Management BlueBOLT TCP/IP Installed BlueBOLT Firmware Version 1.3.059.026 Display Newly Replaced Bright Blue LED Voltage / Current Readout Voltage Protection Rating 500V — UL 1449 3rd Edition, 3,000A Single-Pulse Energy Dissipation 2700 Joules Peak Impulse Current 135,000 Amps Power Protection AVM & Protect-or-Disconnect Circuitry LAN Wires Protected 8 Wires LAN Compatibility 10/100/1000 BASE-T LAN Clamping Level 60 ± 5V Coax Protection Shielded Cable / Satellite Protection Coax Frequency Range 0 MHz – 2.2 GHz Coax Insertion Loss Less Than 0.5 dB Coax Connectors Gold-Plated Female F Connectors Low-Voltage Trigger 12V Input Triggering Rack Height 1RU / 1U Width Approximately 19" Depth Approximately 12.3" Height Approximately 1.8" Weight Approximately 12 lbs. Color Black
``` BlueBOLT IP Power Management
BlueBOLT provides network-based power management for compatible Panamax equipment, allowing system integrators and equipment owners to remotely manage connected devices.
- Remote Power Control
- Remote Equipment Rebooting
- Scheduled Power Cycles
- Programmable Outlet Sequencing
- Automatic Network Device Recovery
- System and Power Status Monitoring
- Event Logging
- Remote Management of Connected AV and Network Equipment
This unit's installed BlueBOLT module has been tested operational, firmware updated, factory reset and unregistered, making it ready for registration by its new owner.
Advanced Power Protection & Conditioning
Automatic Voltage Monitoring (AVM): Continuously monitors the incoming AC line and protects connected equipment from potentially damaging voltage conditions.
LiFT Linear Filtering Technology: Panamax linear filtration reduces AC-line noise that can interfere with sensitive audio, video, networking and control equipment.
Protect-or-Disconnect: Panamax surge-protection circuitry is designed to disconnect connected equipment during catastrophic surge events rather than allow damaging energy to reach valuable electronics.
Isolated Filter Banks: Connected components can be separated into different filter banks to reduce cross-contamination from electrical noise generated by other equipment.
Applications
- Professional AV Equipment Racks
- Home Theater Systems
- Custom Residential AV Installations
- Commercial AV Systems
- Whole-House Audio Systems
- Control4 and Other Home Automation Systems
- AV Receivers and Surround Processors
- Power Amplifiers
- Powered Subwoofers
- Network Routers and Switches
- Modems and Internet Equipment
- Media Servers
- Streaming Devices
- Digital Signage Systems
- Conference and Presentation Systems
- Remote Equipment Reboot Applications
- Equipment Requiring Sequenced Power-On / Power-Off
- Remote AV and Network System Management
Guarantee
This Panamax M4320-PRO with its original AC power cord has been fully tested and is guaranteed to be in proper working order.
The front-panel blue LED display has been replaced with a new bright and clear display.
The installed BlueBOLT module has been tested, upgraded to firmware Version 1.3.059.026, factory reset and unregistered for use by the new owner.
Buy with confidence from a trusted seller.
Returns Policy
Returns: 30-Day Money Back Guarantee.
Condition: Item must be returned in the same original condition in which it was received, with all included accessories.
Cancellation requests after payment may be subject to partial refund due to non-recoverable seller fees.
