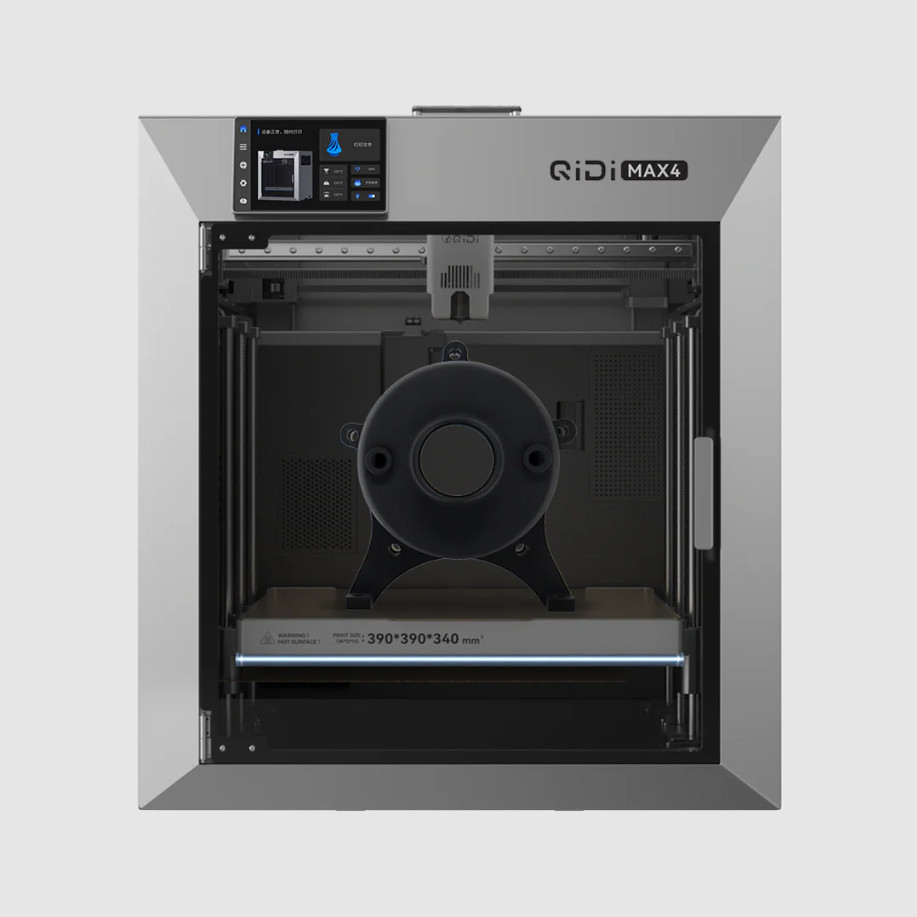

- Ultra-Large Build Volume: QIDI Max4 has a 390×390×340mm printing area, 55% larger than its predecessor MAX3, enables you to print large industrial parts, complex molds and custom prototypes in one go without splitting; full-surface silicone heated bed ensures even temperature distribution and strong first-layer adhesion to avoid warping.
- High Precision & Stability: QIDI Max4 3d printer equipped with closed-loop motors on X/Y axes, Achieve a maximum printing speed of 800mm/s and an acceleration of 30,000mm/s²; 2mm lead screw and anti-backlash nut on Z-axis reduce vertical gaps, ensuring smooth and precise printing with excellent surface quality.
- Wide Material Compatibility: 40mm³/s high-flow hotend with hardened steel nozzle supports standard materials (PLA/ABS) and industrial-grade abrasive materials (carbon fiber-reinforced nylon); QIDI Max4 equipped with 65℃ active heated chamber and self-developed Polar Cooler system create ideal printing conditions for high-temperature materials like ABS-CF, PC, PPS-CF.
- Smart Monitoring & User-Friendly Design: Built-in AI camera automatically detects printing abnormalities (e.g., spaghetti-like failures) and pauses printing instantly to save materials and time; large touch screen with optimized interface offers smooth operation, qidi max4 suitable for both professionals and enthusiasts.
- Expandable Multi-Color Printing: Seamlessly connect with QIDI BOX to achieve 16-color and multi-material printing and enjoy intelligent filament management (e.g., real-time filament level monitoring, automatic pause when filament runs out); providing you with a worry-free 3D printing experience.
- Note: The max4 series does not come with the Polar Cooler. The Polar Cooler must be purchased separately.
What's in the box
QIDI Max4 Technical Specifications
Print Size (W*D*H)390*390*340 mm
Printer Dimensions558*578*612 mm
Package Dimensions700*710*750mm
Gross WeightMax4:49.5kg
Max4 Combo:56kgNet WeightMax4:40kg
Max4 Combo:46.5kgPrint Head Temperature≤ 370℃
Included Build Plate TypeDual-Sided Textured PEI Plate
Hot Bed Temperature≤ 120℃
Max Speed of Tool StructureCoreXY, 1.5GT 10mm Width Belt
FOC Closed-loop Stepper MotorX/Y AxisX: High Hardness Linear Guide Rail
Y: 12mm Linear Steel ShaftsZ AxisIndependent 2mm lead screw motors ×2
12mm Linear Steel Shafts ×4Printing PlatformAluminum Plate Silicone Heated BedNozzleBimetal NozzleNozzle Diameter0.4mm （0.2/0.6/0.8mm Optional）Extruder GearDirect Extruder
Hardened Steel Dual GearsSupported FilamentPLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer，etc.Filament Diameter1.75mmMulti-Color PrintingCompatible with QIDI Box(Multi-color)Air filterYes（3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon）
Chamber Temperature(PTC Heater)3rd Gen Up to 65° C Independent Chamber HeatingAutomatic LevelingHands-free Automatic Leveling
（Loadcell Sensor Integrated into the Hotend）Filament DetectionRun Out Sensor(mounted above extruder)
Tangle Detection(QIDI BOX required)AI Camera DetectionYesAuxiliary Part Cooling Fan4-Pin PWM Fan with RPM responseHot End Cooling Fan4-Pin PWM Fan with RPM responseModel Cooling Fan4-Pin PWM Fan with RPM responseExtruder CoolerYes (Polar Cooler required)Status RGB LEDYesPower Loss Recovery：YesInput ShapingYesVoltage110V / 220–240V AC, 50/60Hz (region-specific models available)Rated Power150W+500W(Chamber Heating)+700W(Heating Bed)CameraCamera (Up to 1080P) Timelapse SupportedStorage32G EMMC and USB2.0 Flash DriveConnectivity2.4GHz/5GHz Wi-Fi, Ethernet, USBDisplay Screen5 Inch 800*480 Touch ScreenSlicerQIDI Studio and other third-party software, such as Orca,PrusaSlicer etc.File Formats for SlicingSTL, OBJ, 3MF,STEP,STP，etc.
