Description
We will send out SFP with our default code- Cisco/Mikrotik/Small brand compatible .
Notes: Cisco 2/3/4/5 Series
(For example Cisco 2960 is belong to 2 series) need special code, You need leave us message.
All following brands can be compatible, If your switch is belong to following brands, Please leave us a message ,Thanks !

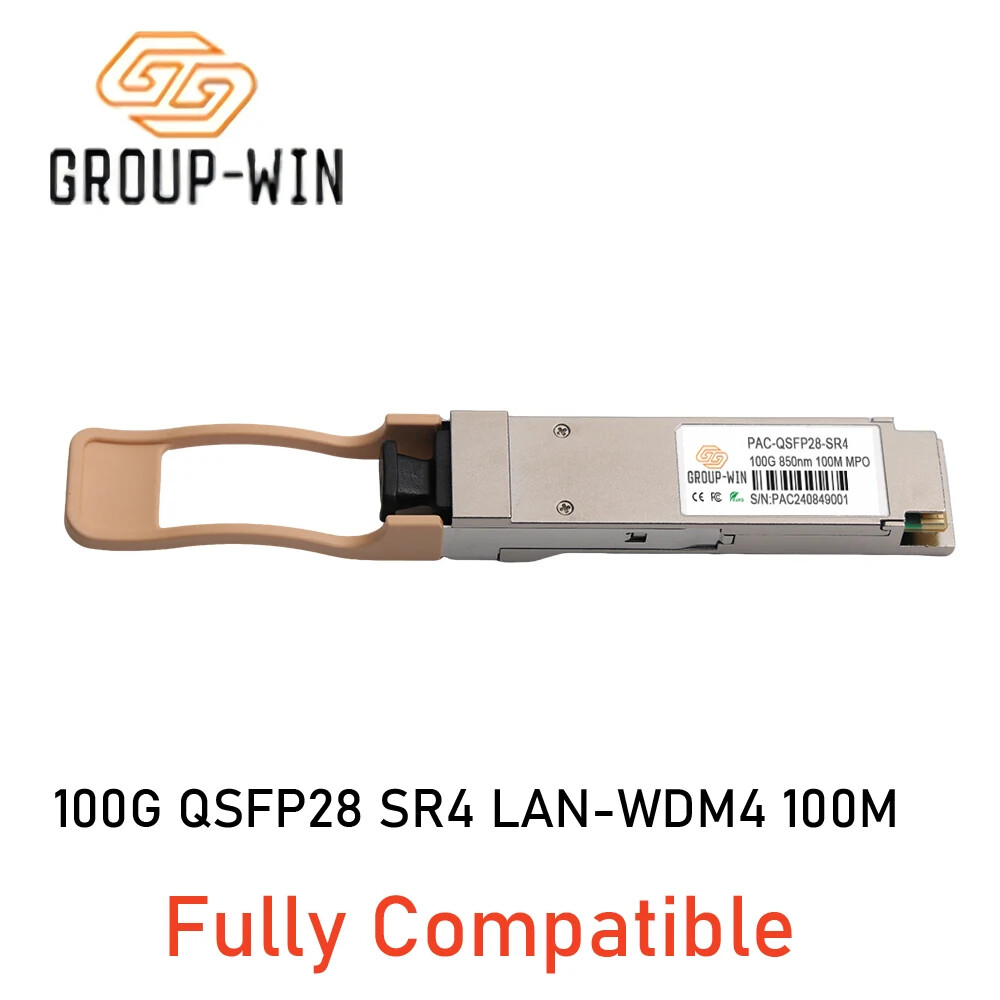

100GQSFP28 SR4 Transceiver
Features
lHot Pluggable QSFP28 form factor
lMPO connector receptacle
lFour-channel full-duplex transceiver modules
lTransmission data rate up to 25.78Gb/s per channel
lUp to 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF
lLow power consumption < 2.2 W
lOperating case temperature 0 °Cto 70°C
l3.3 V power supply voltage
lRoHS 6 compliant
lBuilt-in digital diagnostic function
Applications
lIEEE 802.3bm 100G BASE SR4
lProprietary High Speed Interconnections
lData center
Standards
lQSFP MSA
lSFF-8436 QSFP+
lSFF-8665
lSFF-8636
lEthernet 100GBASE-SR4
100Gb/s ZR4 80km QSFP28 Transceiver
Features:
4 LAN-WDM lanes MUX/DEMUX design
QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4x25G electrical interface
Up to 80km transmission on single mode fiber
Supports 103.125Gb/s aggregate bit rat
Aggregate bandwidth of > 100Gbps
Duplex LC connectors·
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS 2.0 Compliant Part
Maximum power consumption 6.5W
Applications:
100GBASE-ZR4 100G Ethernet
Telecom networking
