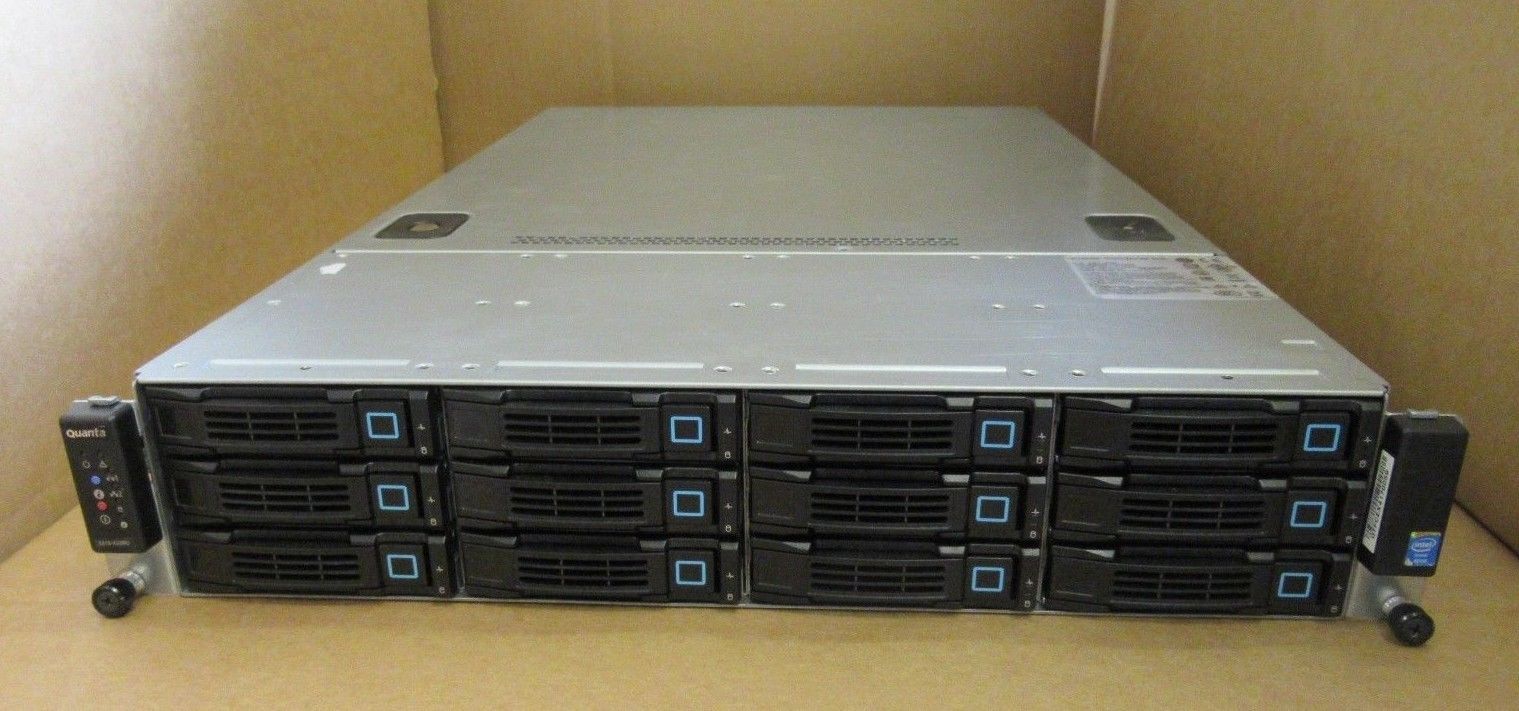

Quanta STRATOS S210-X22RQ 2x 6-Core XEON E5-2630v2 12 x 3.5\" and 2 x 2.5\" drive bays 2U Server

In Good Condition, Full Working Order

Specifications

• 2 x Intel E5-2630v2 Xeon Six-Core 2.6GHz CPUs
• 32GB DDR3 RAM
• QuantaS2G-SAS-6G RAID Controller SAS 2008IR
• x12 way Backplane for up to 12 x 2.5\" SAS, SATA or SSD Hot-Swap Drives and x2 way 2.5\" drives at rear
• 12 x 3.5\" SAS/SSD/SATA hot plug drive caddies
• Integrated 1Gbps Dual Port Network Daughter Card
• 1100W PSU
• Rack Mount Rails

Manufacturer Specifications
STRATOS S210-X22RQ2-Socket High Memory OCP Compliant Server

• Ideal for Memcached, Data Analysis and Storage, Virtualization, and Cloud Computing
• Maximum Computing Performance with Low Energy Draw
• High Storage Flexibility
• Enhanced I/O Scalability
• Certification

2-Socket High Memory 2U Rackmount Server

The Quanta STRATOS S210-X22RQ is a server platform optimized for the demands of the densest datacenter environments. Based on an Intel® Xeon® processor E5-2600/ E5-2600 v2 product family, it boosts general performance by up to 80% over a previous generation Intel® Xeon® processor-based server, and provides up to 768GB of memory and storage capability in a 2U form factor. From virtualization, datacenter infrastructure, to design automation or real-time financial transactions, datacenters will be delighted by the improvement in performance this server delivers. In other words, the S210-X22RQ is a perfect solution for applications withdemanding memory and storage capacity.

Maximum Computing Performance with Low Energy Draw

Quanta STRATOS S210-X22RQ is a dense 2-socket rackmount server, supporting up to 12-core Intel® Xeon® processor E5-2600/ E5-2600 v2 product family and 24 DDR3 DIMMs in a 2U space. The S210-X22RQ enables up to 2x better technical computing performance with Intel® AVX and new Intel® Turbo Boost Technology, while getting up to 50% more performance per watt than previous generations.

In addition, its large number of DIMM slots not only enables support for up to 768GB of system memory on low-voltage DIMMs, but also lowers datacenter operation cost with lowerenergy consumption. S210-X22RQ is ideal for any space and memory-constrained applications, such as memcached, data analysis and storage, virtualization, and cloud computing.

High Storage Flexibility

In the 2U chassis, the STRATOS S210-X22RQ provides choices oftwelve 3.5\" ortwenty-four 2.5\" hot-plug HDDs in the front side, plustwo 2.5\" hot plug SSD/HDD bays in the rear side. Datacenters can choose different levels of storage including 3Gb/ 6Gb or enterprise SSD drives to create optimal storage solutions for different applications. The S210-X22RQ also offers SATADOM option for OS installation.

Enhanced I/O Scalability

The STRATOS S210-X22RQ offers impressive I/O scalability to meet diverse datacenter applications. Its onboard network has choices between two GbE or 10GbE RJ45 ports. Customers can select the best configuration for their datacenter networking environment. Expansion options include onboard Intel® SAS/RAID upgrade ROM, four standard PCIe x8 slot, one PCIe x4 slot, and two dedicated x8 mezzanine slots for SAS/RAID and NIC adaptors. By supporting PCIe 3.0, it improves I/O bandwidth up to 2 times from previous generation. I/O latency is also dramatically reduced with Intel® integrated I/O and Data Direct I/O technology, which helps datacenters to eliminate data bottlenecks, streamline operations, and increase agility.

2-Socket High Memory 2U Rackmount Server

The Quanta STRATOS S210-X22RQ is a server platform optimized for the demands of the densest datacenter environments. Based on an Intel® Xeon® processor E5-2600/ E5-2600 v2 product family, it boosts general performance by up to 80% over a previous generation Intel® Xeon® processor-based server, and provides up to 768GB of memory and storage capability in a 2U form factor. From virtualization, datacenter infrastructure, to design automation or real-time financial transactions, datacenters will be delighted by the improvement in performance this server delivers. In other words, the S210-X22RQ is a perfect solution for applications withdemanding memory and storage capacity.

Maximum Computing Performance with Low Energy Draw

Quanta STRATOS S210-X22RQ is a dense 2-socket rackmount server, supporting up to 12-core Intel® Xeon® processor E5-2600/ E5-2600 v2 product family and 24 DDR3 DIMMs in a 2U space. The S210-X22RQ enables up to 2x better technical computing performance with Intel® AVX and new Intel® Turbo Boost Technology, while getting up to 50% more performance per watt than previous generations.

In addition, its large number of DIMM slots not only enables support for up to 768GB of system memory on low-voltage DIMMs, but also lowers datacenter operation cost with lowerenergy consumption. S210-X22RQ is ideal for any space and memory-constrained applications, such as memcached, data analysis and storage, virtualization, and cloud computing.

High Storage Flexibility

In the 2U chassis, the STRATOS S210-X22RQ provides choices oftwelve 3.5\" ortwenty-four 2.5\" hot-plug HDDs in the front side, plustwo 2.5\" hot plug SSD/HDD bays in the rear side. Datacenters can choose different levels of storage including 3Gb/ 6Gb or enterprise SSD drives to create optimal storage solutions for different applications. The S210-X22RQ also offers SATADOM option for OS installation.

Enhanced I/O Scalability

The STRATOS S210-X22RQ offers impressive I/O scalability to meet diverse datacenter applications. Its onboard network has choices between two GbE or 10GbE RJ45 ports. Customers can select the best configuration for their datacenter networking environment. Expansion options include onboard Intel® SAS/RAID upgrade ROM, four standard PCIe x8 slot, one PCIe x4 slot, and two dedicated x8 mezzanine slots for SAS/RAID and NIC adaptors. By supporting PCIe 3.0, it improves I/O bandwidth up to 2 times from previous generation. I/O latency is also dramatically reduced with Intel® integrated I/O and Data Direct I/O technology, which helps datacenters to eliminate data bottlenecks, streamline operations, and increase agility.

rocessorProcessor TypeIntel® Xeon® processor E5-2600 product familyIntel® Xeon® processor E5-2600 v2 product familyMax. TDP Support135WNumber of Processors2 ProcessorsInternal Interconnect6.4 / 7.2 / 8.0 GT/sL3 CacheUp to 30MBForm FactorForm Factor2UDimensionsW x H x D (inch)16.9 x 3.4 x 28.3W x H x D (mm)430 x 88 x 720ChipsetChipsetIntel® C602StorageDefault Configuration12 x 3.5\" and 2 x 2.5\" Hot-plugMemoryTotal Slots24CapacityUp to 384GB RDIMMUp to 768GB LRDIMMMemory Type1866/1600/1333 MHz DDR3 RDIMM1600 MHz DDR3 LRDIMMMemory Size16GB, 8GB RDIMM32GB LRDIMMExpansion SlotDefault Configuration(1) PCIe Gen3 x8, FHHL
(3) PCIe Gen3 x8, LP MD-2
(1) PCIe Gen3 x4, LP MD-2
(2) PCIe Gen3 x8 mezzanine slots
Storage ControllerOnboardIntel® 602:
(12) SATA 3Gb/s ports
(2) SATA 6Gb/s ports
SATA RAID 0, 1, 5, 10
SAS RAID 0, 1, 5, 10 abled with upgrade ROM options
Power SupplyPower Supply1+ 1 High efficiency redundant hot-plug 1100W PSU, 80 Plus GoldOnboard StorageOnboard StorageSATADOMFanFan(4) system fansVideoVideoIntegrated AST2300 with 8MB DDR3 video memorySystem ManagementSystem ManagementIPMI v2.0 Compliant, onboard “KVM over IP\", Quanta System Manager (QSM)/ Quanta DataCenter Manager(QDCM) (optional) supportRear I/ORear I/O(2) USB 2.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE RJ45 port
(1) GbE RJ45 magement portOperating EnvironmentOperating EnvironmentOperating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH.
Non-operating relative humidity: 20% to 90%RHWeight (Max. Configuration)Weight (Max. Configuration)22.7 (kg)50.04 (lbs)
